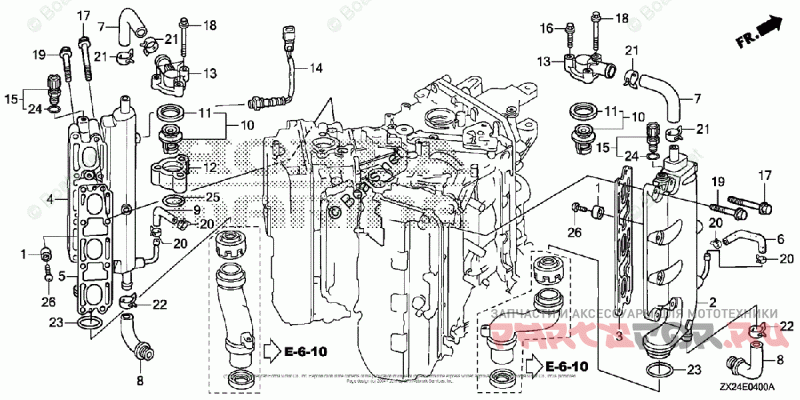

Exhaust Manifold + Thermostat

Honda Marine BF250A XXCW

Honda Marine
#oem кодцена
1
12155-ZV5-000
METAL, ANODE
2
18110-ZY3-010ZA
MANIFOLD, R. EX. *NH8* (DARK GRAY)
3
18115-ZY3-003
GASKET, R. EX. MANIFOLD
4
18120-ZY3-C01ZA
MANIFOLD, L. EX. *NH8* (DARK GRAY)
5
18125-ZY3-003
GASKET, L. EX. MANIFOLD
6
19255-ZY3-000
TUBE, R. WATER RETURN
7
19256-ZY3-010
SEE PART DETAILS - PRI; TUBE, WATER RELIEF
8
19257-ZY3-000
TUBE, WATER
9
19261-ZY3-000
TUBE, L. WATER RETURN
10
19300-ZX2-003
THERMOSTAT ASSY.
11
19303-ZX2-003
RUBBER, RING
12
19313-ZX2-000ZA
SPACER, THERMOSTAT COVER *NH8* (DARK GRAY)
13
19315-ZX2-000ZA
COVER, THERMOSTAT *NH8* (DARK GRAY)
14
35655-ZY3-C01
SEE PART DETAILS - PRI; SENSOR, OXYGEN
15
35673-ZY3-003
SENSOR ASSY., WATER TEMPERATURE
16
90019-ZW9-000
BOLT, FLANGE (6X35)
17
90027-ZY3-000
BOLT, FLANGE (8X60) | Use up to Engine SN 1008081.
17
90127-ZV1-010
BOLT, FLANGE (8X60) | Use from Engine SN 1008082.
18
90034-ZY3-000
BOLT, FLANGE (6X60)
19
90155-ZW4-000
BOLT, FLANGE (8X40)
20
90601-ZY3-030
CLAMP, TUBE (D10.5)
21
90603-ZY3-020
CLAMP, TUBE (D29)
22
90604-ZY3-020
CLAMP, TUBE (D21)
23
91301-ZY3-003
O-RING (66.4X3.1)
24
91307-PNA-003
O-RING (9.5X1.9)
25
91356-SD4-952
O-RING (31.5X2.4) (ARAI)
26
93500-06018-4J
SCREW, PAN (6X18)
