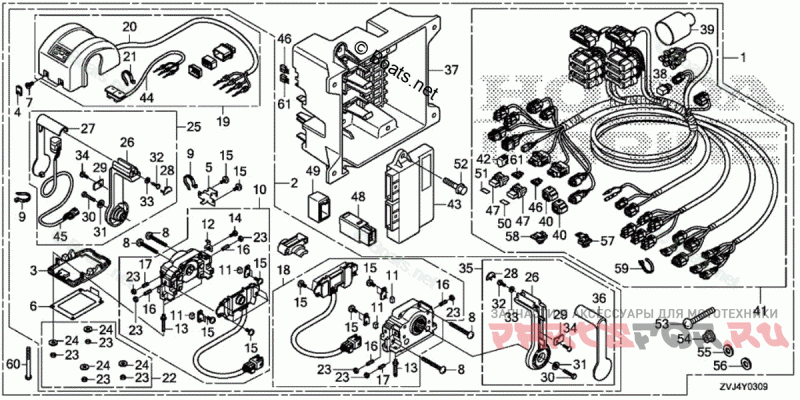

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (MAIN) (DBW)

Honda Marine BF225D XCDA

Honda Marine
#oem кодцена
001
06240-ZVL-701
BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)(MAIN)
002
24800-ZVL-701
BOX ASSY., REMOTE CONTROL (TOP MOUNT DUAL)(RH)
003
24801-ZVL-701
GASKET (TWIN)
004
24802-ZVL-701
COVER, CAP
005
24803-ZVL-701
PLATE, COVER FIX (TWIN)
006
24804-ZVL-701
SHEET, WATERPROOF (TWIN)
007
24805-ZVL-701
BOLT, SOCKET
008
24806-ZVL-701
SCREW
009
24807-ZVL-701
BAND, NYLON
010
24810-ZVL-701
HOUSING ASSY., L.
011
24811-ZVL-701
SHOE, BRAKE
012
24812-ZVL-701
PLATE, HARNESS
013
24813-ZVL-701
BOLT, STUD
014
24814-ZVL-701
BOLT
015
24815-ZVL-701
SCREW
016
24816-ZVL-701
SCREW SET
017
24817-ZVL-701
SCREW SET
018
24820-ZVL-701
HOUSING ASSY., R.
019
24830-ZVL-701
COVER ASSY., TWIN
020
24831-ZVL-701
LED ASSY., COVER (T)
021
24832-ZVL-701
BAND, NYLON
022
24840-ZVL-701
NUT SET, MOUNTING
023
24841-ZVL-701
NUT
024
24842-ZVL-701
WASHER
025
24870-ZVL-701
LEVER ASSY., L.
026
24871-ZVL-701
LEVER
027
24872-ZVL-701
PANEL, LEVER (POWER TRIM-TILT)
028
24873-ZVL-701
CAP, LEVER
029
24874-ZVL-701
PLATE, LEVER PANEL
030
24875-ZVL-701
BOLT
031
24876-ZVL-701
WASHER
032
24877-ZVL-701
SCREW
033
24878-ZVL-701
WASHER
034
24879-ZVL-701
SCREW
035
24880-ZVL-701
LEVER ASSY., R.
036
24881-ZVL-701
PANEL, LEVER
037
30420-ZVL-000
CASE, CONTROL UNIT
038
32107-ZVL-003
TERMINATOR ASSY.
039
32108-KFG-000
COVER, CONNECTOR
040
32127-ZZ3-000
SUSPENSION, CONNECTOR
041
32530-ZVL-000
CABLE ASSY., REMOTE CONTROL (MAIN)
042
32606-K44-V01
CAP, DUMMY (WPC 4P 090 M) (RED)
043
34330-ZVL-003
CONTROL UNIT
044
35330-ZVL-701
SWITCH ASSY., SELECT
045
35370-ZVL-701
SWITCH ASSY., POWER TRIM-TILT
046
38206-V15-003
FUSE, BLADE (3A)
047
38216-Z2E-003
COVER ASSY., FUSE
048
38580-ZZ3-003
RELAY ASSY., MAIN
049
38586-ZZ5-003
SUSPENSION, RELAY
050
87117-Z2E-000
LABEL, FUSE (3A)
051
87118-ZVL-000
LABEL, FUSE (5A)
052
90018-ZZ5-M00
BOLT, FLANGE (6X20)
053
90109-ZW5-000
SCREW, PAN (5X40)
054
90301-ZZ5-M00
NUT, FLANGE (5MM)
055
90501-ZZ5-M00
WASHER, PLAIN (5MM)
056
90502-ZZ5-M00
WASHER, SPRING (5MM)
057
91535-STK-003
CLIP, CONNECTOR (DARK BLUE)
058
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
059
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
060
93500-05065-4J
SCREW, PAN (5X65)
061
98200-40500
FUSE, MINI (5A)
