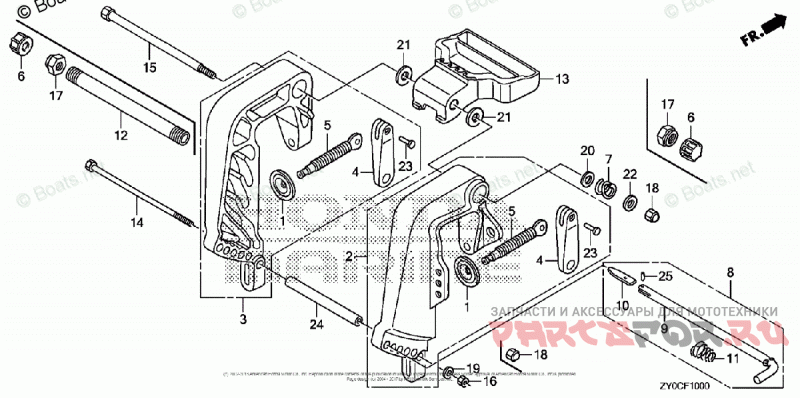

Stern Bracket (1)

Honda Marine BF20DK3 SHA

Honda Marine
#oem кодцена
1
50122-935-010
PLATE, PUSH
2
50300-ZW9-020ZB
BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)
3
50310-ZW9-030ZB
BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)
4
50323-ZW9-300
SEE PART DETAILS - PRI; GRIP, CLAMP
5
50325-ZW9-010
SCREW, CLAMP
7
50333-ZW9-010
SPRING, TILT
8
50340-ZV4-010
SEE PART DETAILS - PRI; ROD, ADJUSTING
9
50341-ZV4-310
ROD, ADJUSTING
10
50342-ZV4-300
STOPPER, ROD
11
50343-921-300
SPRING, ADJUSTING ROD
13
68111-ZW9-010
SEE PART DETAILS - PRI; HANDLE, CARRYING
14
90104-ZW9-000
BOLT, HEX. (6X160)
15
90106-921-010
BOLT, TILTING
16
90304-ZV4-000
NUT, HEX. (6MM)
18
90305-ZV4-000
NUT, SELF-LOCK (8MM)
19
90506-ZV4-000
WASHER, PLAIN (6MM)
20
90511-921-000
WASHER, PLAIN (10MM)
21
90513-921-000
WASHER (10MM)
22
90514-921-000
WASHER (8MM)
23
90855-ZW9-300
RIVET (4X22.6)
24
91501-ZV4-000
COLLAR, DISTANCE (6MM)
25
94305-20083
PIN, SPRING (2X8)
