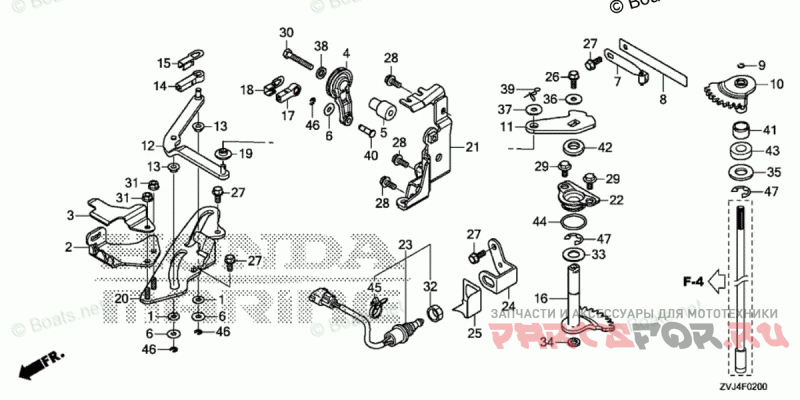

SHIFT SHAFT (MECH)

Honda Marine BF200D LRA

Honda Marine
#oem кодцена
001
17224-KN5-670
WASHER, AIR CLEANER COVER SETTING
002
17877-ZVL-900
PLATE, REMOTE CONTROL CABLE
003
17878-ZVL-900
COVER, REMOTE CONTROL CABLE
004
17931-ZY3-000
ARM, THROTTLE
005
17932-ZVL-900
SHAFT, THROTTLE ARM
006
17936-921-000
WASHER, PIVOT
007
24210-ZW1-010
SPRING, CLICK
007
24210-ZVL-000
SPRING, CLICK
008
24221-ZY3-000
SPRING, CLICK ASSIST
009
24327-ZW1-000
RING, STOPPER
010
24610-ZY3-A00
SHAFT, SHIFT (A)
011
24612-ZVL-900
ARM, SHIFT (MECH)
012
24613-ZVL-900
ROD, LINK (MECH)
013
24617-ZY3-000
COLLAR, SHIFT SLIDER
014
24618-ZY3-000
PIVOT, SHIFT
015
24619-ZY3-000
PLATE, LOCK
016
24620-ZY3-000
SHAFT, SHIFT (B)
017
24621-ZVL-000
PIVOT, THROTTLE
018
24622-ZVL-000
PLATE, LOCK
019
24623-ZY3-000
BUSH, SHIFT ARM
020
24627-ZVL-900
GUIDE, SHIFT LINK (MECH)
021
24628-ZVL-900
BRACKET, SHIFT LINK (MECH)
022
24629-ZW1-000
HOLDER, SEAL
023
35470-ZX2-013
SWITCH ASSY., NEUTRAL
024
35476-ZY3-010
BRACKET, NEUTRAL SWITCH
025
35477-ZVL-000
COVER, NEUTRAL SWITCH
026
90017-ZZ5-M00
BOLT, FLANGE (6X16)
027
90021-ZZ5-M00
BOLT, FLANGE (6X14)
028
90101-ZX2-C00
BOLT-WASHER (6X16)
029
90101-ZZ0-M00
BOLT, FLANGE (6X11)
030
90114-881-000
BOLT, HEX. (6X40)
031
90201-ZZ5-M00
NUT, FLANGE (6MM)
032
90302-ZV5-003
NUT, HEX. (20MM)
033
90402-HA0-000
WASHER, THRUST (14MM)
034
90428-958-000
WASHER B, THRUST (14MM)
035
90508-ZV7-000
WASHER
036
90508-ZZ5-M00
WASHER, PLAIN (6MM)
037
90511-ZV4-000
WASHER, PLAIN (6MM)
038
90512-ZV4-000
WASHER, PLAIN (6MM)
039
90705-SD2-931
PIN, SNAP (6MM)
040
90751-ZY3-000
PIN, LINK
041
91152-ZY3-003
RING (INNER) (15X20X13)
042
91251-ZW5-003
OIL SEAL (14X26X6)
043
91255-ZY3-003
SEAL, WATER (14X26X8)
044
91302-PF0-003
O-RING (26.9X2.4) (NOK)
045
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
046
94540-04029
E-RING (4MM)
047
94540-12029
E-RING (12MM)
