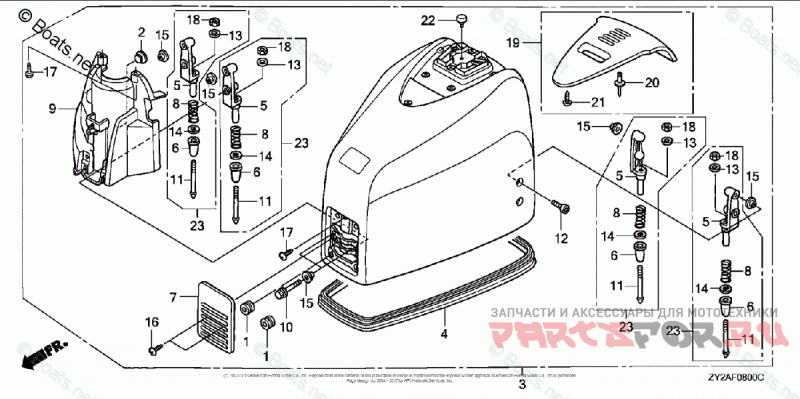

ENGINE COVER

Honda Marine BF200AK0 XA

Honda Marine
#oem кодцена
1
17251-KE8-690
GROMMET, AIR CLEANER HOUSING
2
32104-538-308
GROMMET, WIRE
3
63100-ZY3-H01ZA
SEE PART DETAILS - PRI; COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
4
63102-ZY3-010
SEAL, ENGINE COVER
5
63107-ZY3-000
BRACKET, HOOK
6
63108-ZY3-000
DAMPER, HOOK
7
63111-ZY3-310ZA
COVER, FR. *NH282MU* (OYSTER SILVER METALLIC-U)
8
63119-ZY3-000
SPRING, LOCK ADJUSTER
9
63143-ZY3-H00
SEE PART DETAILS - PRI; DUCT, ENGINE COVER
10
90105-ZW9-000
BOLT, FLANGE (6X20)
11
90109-ZY3-010
BOLT, COVER LOCK
12
90133-ZY3-000
BOLT, SOCKET (6X16)
13
90504-921-010
WASHER, PLAIN (6MM)
14
90507-ZY3-000
WASHER, PLAIN (12MM)
15
91556-ZY3-000
COLLAR, DISTANCE (6.5X9X3)
16
93911-141J0
SCREW, TAPPING (4X10)
17
93913-141J0
SCREW, TAPPING (4X10)
18
94002-06490-0S
NUT, HEX. (6MM)
19
06631-ZY3-305ZA
COVER KIT, TOP *NH282MU* (OYSTER SILVER METALLIC-U) | (Optional).
20
90852-ZY3-300
RIVET (4.1X27.7) | (Optional).
21
93913-141J0
SCREW, TAPPING (4X10) | (Optional).
22
95011-62000
RUBBER B, STAND STOPPER
23
06631-ZX2-C00
HOOK KIT, COVER | (Optional).
