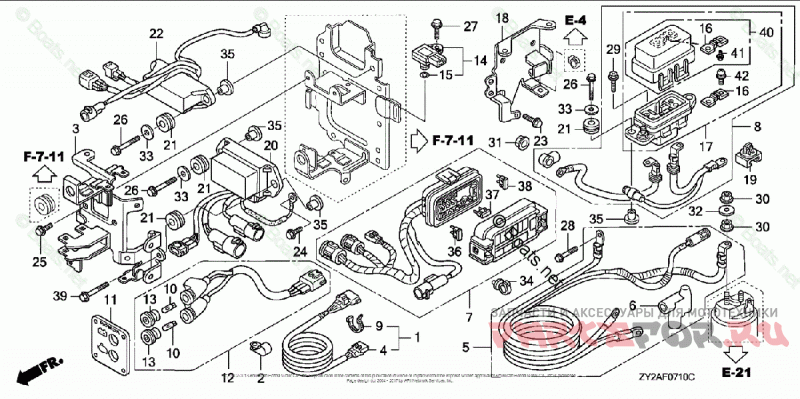

Starter Cable

Honda Marine BF200AK0 LA

Honda Marine
#oem кодцена
1
06321-ZW5-902
CORD KIT, INDICATOR (3P/6P) (ANALOG) | (Optional).
2
30569-895-000
CLAMP F, CABLE
3
32108-ZY3-A00
BRACKET, CONNECTOR A
4
32185-ZY3-010
WIRE ASSY., INDICATOR (3P/6P) (ANALOG)
5
32410-ZY3-A02
CABLE ASSY., STARTER
6
32411-ZY3-003
COVER, STARTER TERMINAL
7
32415-ZY3-A00
CABLE ASSY., MAIN FUSE
8
32435-ZY3-A00
CABLE ASSY., ALTERNATOR FUSE
9
32901-952-770
TIE, CABLE (2.4X92) (NATURAL) | (Optional).
10
34908-KM1-671
BULB, WEDGE BASE (T6.5) (12V 3W)
11
37206-ZW5-014
PANEL, INDICATOR (2-BULB) | Use up to Frame SN 1500414.
11
37206-ZW5-024
PANEL, INDICATOR (2-BULB) | Use from Frame SN 1500415.
12
37210-ZW5-004
LAMP ASSY., INDICATION (2-BULB)
13
37581-KR3-008
LENS, SPEEDOMETER PILOT
14
37830-PGK-A01
SENSOR ASSY., MAP
15
37835-PGK-A01
O-RING
16
38201-ZY3-003
FUSE (150A)
17
38210-ZY3-A01
BOX ASSY., FUSE (150A)
18
38214-ZY3-A00
BRACKET, FUSE BOX
19
38216-ZY3-003
CLIP, CONNECTOR HOLDER (B)
20
38550-ZY3-A01
RELAY ASSY., POWER TILT
21
38551-ZW1-000
GROMMET, RELAY
22
06380-ZY3-000
SEE PART DETAILS - PRI; RELAY ASSY., MAIN
23
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
24
90013-ZW9-000
BOLT, FLANGE (6X12)
25
90014-ZW9-000
BOLT, FLANGE (6X10)
26
90013-ZW1-000
BOLT-WASHER (6X25)
27
90029-ZY3-000
BOLT-WASHER (5X18)
28
90107-ZY3-000
BOLT, FLANGE (8X18)
29
90108-ZY3-000
BOLT-WASHER (6X16)
30
90203-ZW1-000
NUT-WASHER (8MM)
31
90304-ZY3-000
NUT-WASHER (6MM)
32
90405-ZY3-000
WASHER, PLAIN (8MM)
34
90691-ZB7-003
CLIP, HARNESS
35
91553-ZV5-010
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
36
98200-41000
FUSE, MINI (10A)
37
98200-41500
FUSE, MINI (15A)
38
98200-43000
FUSE, MINI (30A)
39
90030-ZY3-000
BOLT, FLANGE (6X22)
40
38216-ZY3-A01
COVER ASSY., FUSE (150A)
41
90105-ZW5-003
SCREW-WASHER (3X7)
42
90135-ZY3-003
SCREW-WASHER (5X12)
