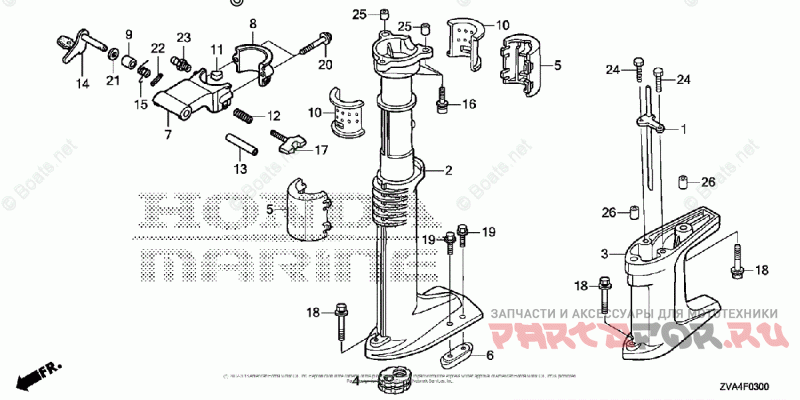

Extension Case

Honda Marine BF2.3DH SCHA

Honda Marine
#oem кодцена
2
40201-ZW6-C00ZA
CASE, EXTENSION *NH246* (LOOSY GRAY)
4
40210-ZVA-000
BUSH, VERTICAL SHAFT (S)
5
40218-ZVA-000
PROTECTOR, EXTENSION
6
41106-ZV4-650
METAL, ANODE
7
50201-ZW6-C00ZA
CASE, SWIVEL *NH246* (LOOSY GRAY)
8
50203-ZVA-000ZA
CAP, SWIVEL CASE *NH246* (LOOSY GRAY)
9
50204-ZVA-000
COLLAR, SWIVEL CASE
10
50211-ZVA-000
LINER, SWIVEL CASE
11
50212-ZVA-000
BLOCK, FRICTION
12
50233-ZVA-000
SPRING, FRICTION ADJUSTING
13
50337-ZVA-000
COLLAR, DISTANCE
14
50511-ZVA-000
ARM, TILT LOCK
15
50516-ZVA-000
SEE PART DETAILS - PRI; SPRING, TILT LOCK
16
90104-ZVA-000
SEE PART DETAILS - PRI; BOLT-WASHER, SOCKET (6X30)
17
90106-ZVA-000
BOLT, SWIVEL CASE
18
90109-ZVA-000
BOLT-WASHER (6X35)
19
90113-ZVA-000
BOLT, FLANGE (6X16)
19
90215-HW1-671
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS) | Use from Frame SN 1011073.
20
90114-ZVA-000
BOLT, FLANGE (8X35)
21
90518-ZVA-000
WASHER, PLAIN (8MM)
22
90752-ZVA-000
PIN, SPRING (2.5X20)
23
90951-ZV7-010
NIPPLE, GREASE
25
94301-08100
SEE PART DETAILS - PRI; PIN, DOWEL (8X10)
