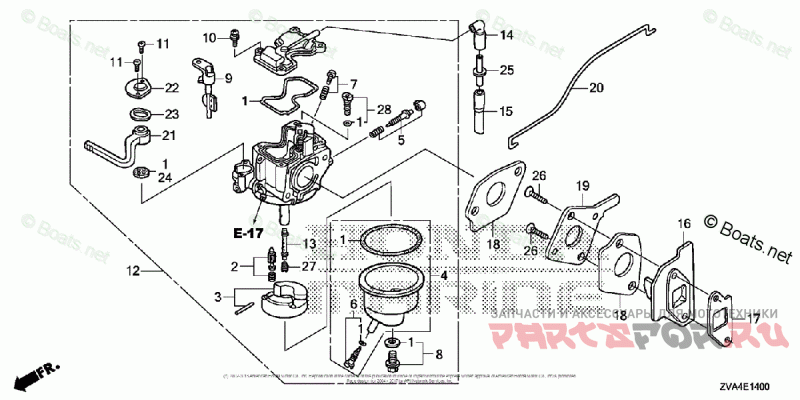

CARBURETOR

Honda Marine BF2.3DH LCHA

Honda Marine
#oem кодцена
1
16010-ZW6-611
GASKET SET
2
16011-ZE0-005
VALVE SET, FLOAT (SEAT NOT INCLUDED)
3
16013-ZG0-811
FLOAT SET
4
16015-ZW6-G01
CHAMBER SET, FLOAT
5
16016-ZW6-E11
SCREW SET
6
16024-ZW6-003
SCREW SET, DRAIN
7
16028-ZW6-003
SCREW SET
8
16028-ZW6-611
SEE PART DETAILS - PRI; SCREW SET
9
16044-ZV0-A01
LEVER SET, CHOKE
10
16081-ZV1-A00
SCREW, PAN
11
16082-ZW6-003
SCREW, PAN (3X6)
12
16100-ZVA-E02
SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF33V A)
13
16166-ZW6-G01
NOZZLE, MAIN
14
16196-ZVA-000
TUBE A, AIR VENT
15
16197-ZVA-000
TUBE B, AIR VENT
16
16211-ZVA-000
INSULATOR, CARBURETOR
17
16212-ZVA-000
GASKET, INSULATOR
18
16221-ZVA-000
SEE PART DETAILS - PRI; GASKET, CARBURETOR
19
16225-ZVA-000
PLATE, CARBURETOR JOINT
20
16674-ZVA-000
ROD, CHOKE
21
16953-ZW6-003
LEVER, PETCOCK
22
16954-ZW6-003
PLATE, LEVER SETTING
23
16956-ZE1-811
SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER
24
16957-ZE1-812
SEE PART DETAILS - PRI; GASKET, PETCOCK
25
16958-ZVA-000
JOINT, AIR VENT TUBE
26
90012-ZVA-000
SCREW, FLAT (5X20)
27
99101-ZG0-0580
JET, MAIN (#58) | (Optional).
27
99101-ZG0-0600
JET, MAIN (#60) | (Optional).
27
99101-ZG0-0620
SEE PART DETAILS - PRI; JET, MAIN (#62)
28
99204-ZE0-0350
JET SET, PILOT (#35)
