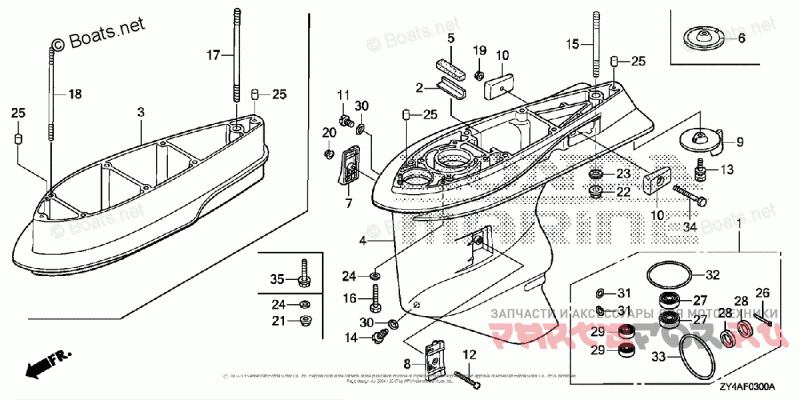

GEAR CASE

Honda Marine BF175AK2 LA

Honda Marine
#oem кодцена
2
19286-ZW1-B00
PLATE, RUBBER SETTING
4
41101-ZY3-C00ZB
CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)
5
41102-ZW1-B00
GROMMET, GEAR CASE
7
41104-ZY3-C01
SCREEN, R. WATER
8
41105-ZY3-C01
SCREEN, L. WATER
9
41107-ZX2-C00ZA
TAB, TRIM *NHB14M* (AQUA MARINE SILVER METALLIC)
10
41109-ZW1-B00
METAL, ANODE
11
90101-ZW9-003
BOLT, OIL CHECK
12
90101-ZZ0-000
SCREW, FLAT (5X55)
13
90103-ZY6-000
BOLT-WASHER (10X32)
14
90120-ZY3-000
BOLT, DRAIN PLUG
15
90124-ZY3-000
BOLT, STUD (12X40)
16
90126-ZY3-000
BOLT, HEX. (10X47) | Use up to Frame SN 1400018.
19
90205-ZY1-000
NUT, SELF-LOCK (6MM)
20
90302-ZV4-000
NUT, SELF-LOCK (5MM)
22
90308-ZW1-003
NUT, SELF-LOCK (12MM)
23
90559-ZV5-000
WASHER, PLAIN (12MM)
24
90563-ZV5-000
WASHER, PLAIN (10MM) | Use up to Frame SN 1400018.
25
90756-ZV5-000
PIN, DOWEL (6X10)
30
91301-ZW4-003
O-RING (6.9X1.45)
34
92101-06055-4J
BOLT, HEX. (6X55)
35
90107-ZX2-C00
BOLT-WASHER (10X47) | Use from Frame SN 1400019.
