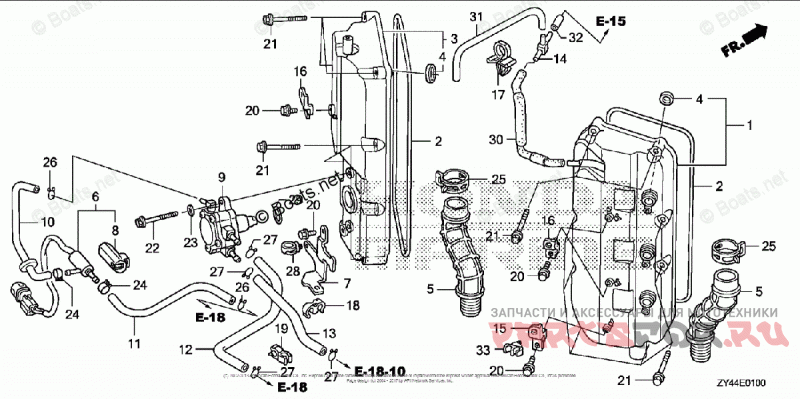

Cylinder Head Cover

Honda Marine BF175AK1 LA

Honda Marine
#oem кодцена
1
12310-ZY3-405ZA
COVER, R. CYLINDER HEAD *NH8* (DARK GRAY)
2
12312-ZY3-000
GASKET, HEAD COVER
3
12320-ZY3-405ZA
COVER, L. CYLINDER HEAD *NH8* (DARK GRAY)
4
12342-RYE-004
SEE PART DETAILS - PRI; SEAL, SPARK PLUG TUBE (NOK)
5
15425-ZY3-010
SEE PART DETAILS - PRI; TUBE, OIL
6
16200-ZY3-003
VALVE ASSY., SOLENOID
7
16203-ZY3-000
BRACKET, SOLENOID VALVE
8
16204-ZY3-003
GROMMET, SOLENOID VALVE
9
16700-ZY3-A01
PUMP ASSY., FUEL (MSDS)
10
16881-ZY3-C00
TUBE D, FUEL
11
16891-ZY3-C00
TUBE E, FUEL
12
16896-ZY3-C00
TUBE F, FUEL
13
16895-ZY3-C00
TUBE G, FUEL | Use from Engine SN 1200292.
13
16898-ZY3-C00
TUBE, FUEL (7.3X380) | Use up to Engine SN 1200291.
14
17193-MT2-000
T-JOINT
15
32114-ZW9-730
BRACKET, CLIP B
16
32129-ZY3-000
BRACKET C, HARNESS CLIP
17
50310-HE0-003
CLIP A, WIRE
18
53740-SE0-953
CLIP, SENSOR HOSE
19
54316-SD9-013
CLIP, SHIFT WIRE
20
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
21
90019-ZW9-000
BOLT, FLANGE (6X35)
22
90036-ZY3-000
SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)
23
90406-ZY3-000
WASHER, PLAIN (8MM)
24
90601-ZW5-030
CLAMP, TUBE (D10.7)
25
90602-ZY3-020
SEE PART DETAILS - PRI; CLAMP, TUBE (D32.5)
26
90603-ZV4-000
CLIP, TUBE (B10)
27
90604-ZV0-000
CLIP, TUBE (B12)
28
90691-ZB7-003
CLIP, HARNESS
29
91305-KT7-003
O-RING (37X2.4) (ARAI)
30
91401-ZY3-A00
TUBE A, BREATHER
31
91402-ZY3-020
SEE PART DETAILS - PRI; TUBE B, BREATHER | Use up to Engine SN 1200256.
32
91403-ZY3-000
TUBE C, BREATHER
33
91566-SK7-003
CLIP D, WASHER TUBE
