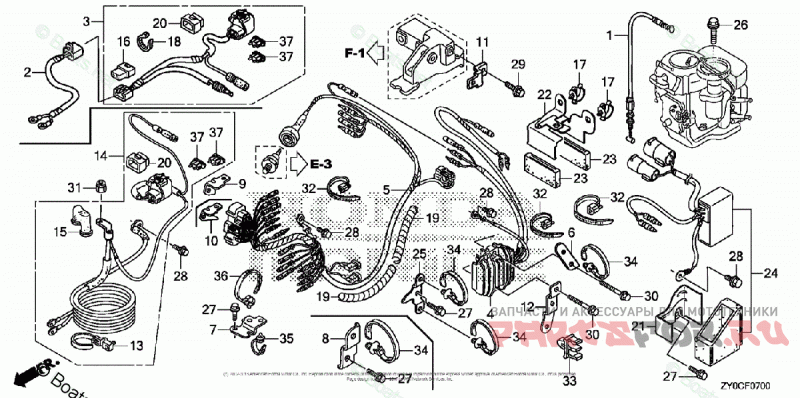

Wire Harness + Regulator + Starter Cable (1)

Honda Marine BF15DK3 LHTA

Honda Marine
#oem кодцена
1
17940-ZW9-010
CABLE, NEUTRAL STARTING
4
31750-ZY1-732
RECTIFIER ASSY., REGULATOR
5
32100-ZY1-700
WIRE HARNESS ASSY. (SELF STARTER)
6
32103-ZW9-010
BRACKET, CLIP F
7
32112-ZW9-000
BRACKET, STARTER CABLE
10
32115-ZY1-870
BRACKET, FUSE CASE (PT)
12
32118-ZW9-730
BRACKET, E-CLIP
13
32121-HA0-003
BAND, WIRE
14
32410-ZY1-870
CABLE ASSY., STARTER (PT)
15
32412-ZY1-801
COVER, MAGNETIC SWITCH TERMINAL
17
32660-MJ6-710
CLAMP, WIRE
19
36104-ZW9-003
TUBE, SPIRAL A
20
38218-ZW9-003
COVER ASSY., FUSE (20A)
21
38552-ZY1-871
BRACKET, RELAY (PT)
22
38553-ZY1-870
BRACKET, CONNECTOR A
23
38554-ZY1-870
GROMMET, CONNECTOR
24
38555-ZY1-871
RELAY ASSY., POWER TILT
25
38556-ZY1-870
BRACKET, HARNESS CLIP
26
90005-ZW9-000
BOLT, FLANGE (6X20)
27
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
28
90013-ZW9-000
BOLT, FLANGE (6X12)
30
90114-ZW9-000
BOLT, FLANGE (6X26) (CT200)
31
90204-ZY1-003
NUT, LOCK (6MM)
32
90650-ZY1-003
TIE, CABLE
33
90684-SB3-003
CLIP, FUEL TUBE
34
91540-S30-003
CLIP, HARNESS BAND (151.5MM) (NATURAL)
35
91547-SF4-003
BAND, WIRE HARNESS (123.5MM) (BLUE)
36
91567-SE0-003
BAND, WIRE HARNESS (93.5MM) (WHITE)
37
98200-32000
FUSE, BLADE (20A)
