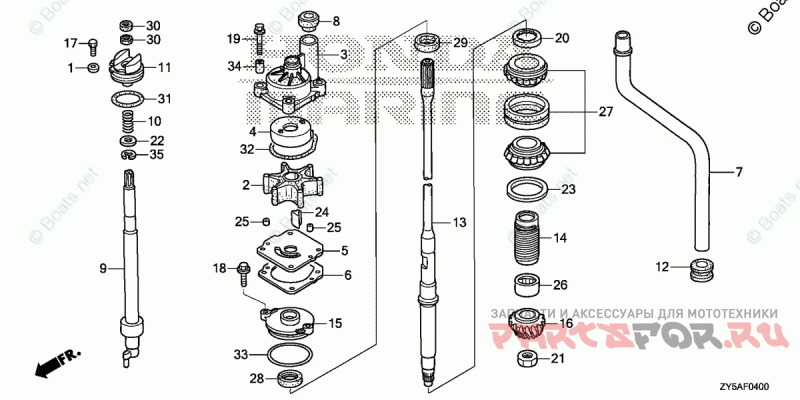

Water Pump + Vertical Shaft

Honda Marine BF150AK2 LS

Honda Marine
#oem кодцена
001
17936-921-000
WASHER, PIVOT
002
19210-ZW1-B04
IMPELLER, PUMP
003
19221-ZY6-A00
HOUSING, IMPELLER
004
19223-ZW1-B00
LINER, PUMP
005
19231-ZY6-000
COVER, IMPELLER
006
19234-ZY6-000
GASKET B, IMPELLER
007
19251-ZY6-000
TUBE, WATER (L)
008
19253-ZW1-B01
RING, WATER TUBE SEAL
009
24310-ZY6-000
ROD, SHIFT
010
24318-ZY3-000
SPRING, SHIFT ROD
011
24343-ZY6-010
HOLDER, SHIFT ROD
012
40204-ZW1-000
GROMMET, EXTENSION CASE
013
41112-ZY6-010
SHAFT, VERTICAL (L)
014
41116-ZW1-B00
SLINGER, OIL
015
41117-ZZ3-000
HOUSING, WATER SEAL
016
41131-ZY6-000
GEAR, PINION
017
90105-881-000
BOLT, HEX. (6X12)
018
90105-ZW9-000
BOLT, FLANGE (6X20)
019
90116-ZY6-000
BOLT-WASHER (8X40)
020
90242-ZW1-000
NUT, LOCK (64MM)
021
90303-ZW5-000
NUT, HEX. (18MM)
022
90472-723-000
WASHER, PLAIN (12MM)
023
90518-ZW1-B00
SHIM A, GEAR (0.10)
023
90519-ZW1-B00
SHIM B, GEAR (0.15)
023
90520-ZW1-B00
SHIM C, GEAR (0.30)
023
90521-ZW1-B00
SHIM D, GEAR (0.50)
024
90752-ZW1-B02
KEY, WOODRUFF
025
90756-ZV5-000
PIN, DOWEL (6X10)
026
91052-ZY6-003
BEARING, NEEDLE (28.575X44.45X31.75)
027
91054-ZW1-B31
BEARING, TAPER ROLLER (30X62X40)
028
91251-ZY6-003
SEAL, WATER (23X36X8)
029
91253-ZZ3-003
SEAL, WATER (23X36X6)
030
91254-ZY3-003
SEAL, WATER (12X21X6)
031
91351-ZY6-003
O-RING (55.6X3.5)
032
91356-ZW1-B00
O-RING, WATER PUMP
033
91359-MB0-000
O-RING (58.5X3.5)
034
91552-ZY6-000
COLLAR, DISTANCE
035
94540-10019
E-RING (10MM)
