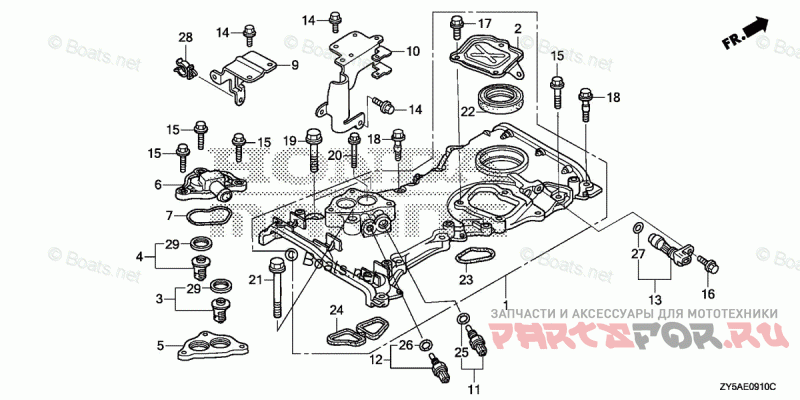

Chain Case + Thermostat

Honda Marine BF150AK2 LS

Honda Marine
#oem кодцена
001
11410-ZY6-435ZA
CASE ASSY., CHAIN *NH8* (DARK GRAY)
002
11412-ZY6-000
COVER, CHAIN CASE
003
19300-ZY3-023
THERMOSTAT ASSY.
004
19300-ZY6-003
THERMOSTAT ASSY.
005
06191-ZY6-000
SPACER KIT, THERMOSTAT COVER
006
19315-ZY6-010
COVER, THERMOSTAT
007
19318-ZY6-010
GASKET, THERMOSTAT COVER
009
32112-ZY6-000
BRACKET B, HARNESS CLIP
010
32113-ZY6-000
BRACKET C, HARNESS CLIP
011
35673-ZW5-003
SENSOR ASSY., WATER TEMPERATURE
012
35673-ZY3-003
SENSOR ASSY., WATER TEMPERATURE
013
37500-PNB-003
SENSOR ASSY., CRANK
014
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
015
90016-ZY3-000
BOLT, FLANGE (6X28)
016
90017-ZY3-000
BOLT, FLANGE (6X16)
017
90021-ZY3-000
BOLT, FLANGE (6X14)
018
90023-ZY6-000
BOLT, SPECIAL (6X31)
019
90040-ZY3-000
BOLT, FLANGE (10X43)
020
90059-ZY6-000
BOLT, FLANGE (6X38)
021
90162-ZW4-000
BOLT, FLANGE (10X70)
022
91212-PNC-004
OIL SEAL (43X58X7) (ARAI)
023
91302-PNA-004
O-RING, CHAIN CASE
024
91304-ZY6-010
GASKET, CHAIN CASE
025
91307-PK2-005
O-RING (9.5X1.5) (HONDA KIKAKI)
026
91307-PNA-003
O-RING (9.5X1.9)
027
91333-PNA-003
O-RING (15X1.9)
028
91546-SP0-A01
CLAMP (18.5MM)
029
19303-ZW9-003
RUBBER, RING
