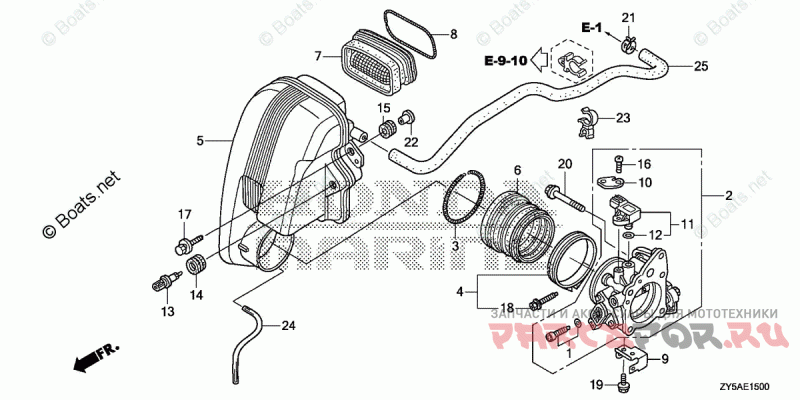

THROTTLE BODY

Honda Marine BF150AK2 JA

Honda Marine
#oem кодцена
001
16016-ZY6-003
SCREW SET
002
16400-ZY6-013
BODY ASSY., THROTTLE
003
17249-PY3-000
SPRING, AIR FLOW TUBE
004
17315-ZY9-000
BAND, AIR FLOW
005
17371-ZY6-020
CASE, MUFFLER
006
17374-ZY6-000
GROMMET, MUFFLER
007
17397-ZY6-013
GROMMET, MUFFLER DUCT
008
17398-ZY6-000
SPRING, MUFFLER DUCT GROMMET
009
32115-ZY6-000
BRACKET E, HARNESS CLIP
010
32128-ZY3-000
BRACKET, SENSOR WIRE
011
37830-RNA-A01
SENSOR ASSY., MAP
012
37835-PGK-A01
O-RING
013
37880-PLC-004
SENSOR ASSY., AIR TEMPERATURE (MATSUSHITA DENSHI)
014
37881-P2A-000
GROMMET, TA SENSOR
015
40102-ZV5-000
GROMMET, CASE (LOWER)
016
90006-ZY6-000
SCREW, PAN (5X18)
017
90013-ZW1-000
BOLT-WASHER (6X25)
018
90017-ZY9-000
BOLT-WASHER (5X30)
019
90056-ZY3-000
BOLT, FLANGE (6X12)
020
90127-ZV1-010
BOLT, FLANGE (8X60)
021
90601-ZV3-030
CLAMP, TUBE (D17)
022
91553-ZV5-010
COLLAR, MODULE IGNITION CONTROL CASE (CDI)
023
91595-SF1-003
CLAMP, FUEL HOSE
024
95003-07008-60M
BULK HOSE, VINYL (4X7X8000) (4X7X160)
025
95005-12001-20M
BULK HOSE, VACUUM (12X1000) (12X740)
