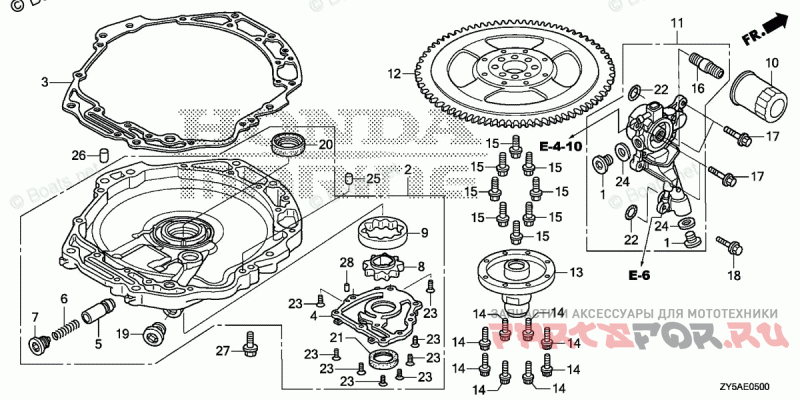

Oil Pump + Flywheel

Honda Marine BF150AK2 JA

Honda Marine
#oem кодцена
001
12217-ZW1-010
BOLT, SEALING (20MM)
002
15100-ZY6-000ZA
PUMP ASSY., OIL *NH8* (DARK GRAY)
003
15112-ZY6-000
GASKET, OIL PUMP BODY
004
15121-ZY6-000
COVER, OIL PUMP
005
15231-PE0-000
VALVE, RELIEF
006
15232-PG6-000
SPRING, RELIEF VALVE
007
15233-PC6-000
BOLT, SEALING (18MM)
008
15331-ZW5-003
ROTOR, OIL PUMP (INNER)
009
15341-ZW5-003
ROTOR, OIL PUMP (OUTER)
010
15400-PLM-A01
FILTER, OIL (FILTECH TOYO ROKI) (SOLD IN MULTIPLES OF 30)
010
15400-PLM-A01PE
FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
011
15410-ZY6-010ZA
FLANGE, OIL FILTER *NH8* (DARK GRAY)
012
31110-ZY6-000ZA
FLYWHEEL *TBLACK* (BLACK)
013
31116-ZY3-000
BOSS, FLYWHEEL
014
90002-ZW5-013
BOLT, SPECIAL (8MM)
015
90011-PH3-000
BOLT, FLANGE (12MM)
016
90015-PH1-013
HOLDER, OIL FILTER
017
90016-ZW9-000
BOLT, FLANGE (6X25)
018
90018-ZW5-000
BOLT, FLANGE (6X20)
019
90081-ZV5-010
BOLT, SEALING (22MM)
020
91201-ZW5-003
OIL SEAL (46X60X9)
021
91212-P01-003
OIL SEAL (31X46X7) (NOK)
022
91360-VD6-003
O-RING (22.5X2.4)
023
93600-06016-0A
SCREW, FLAT (6X16)
024
94109-20000
WASHER, DRAIN PLUG (20MM)
025
94301-10160
PIN, DOWEL (10X16)
026
94301-14200
PIN, DOWEL (14X20)
027
95701-08032-08
BOLT, FLANGE (8X32)
028
96220-50080
ROLLER (5X8)
