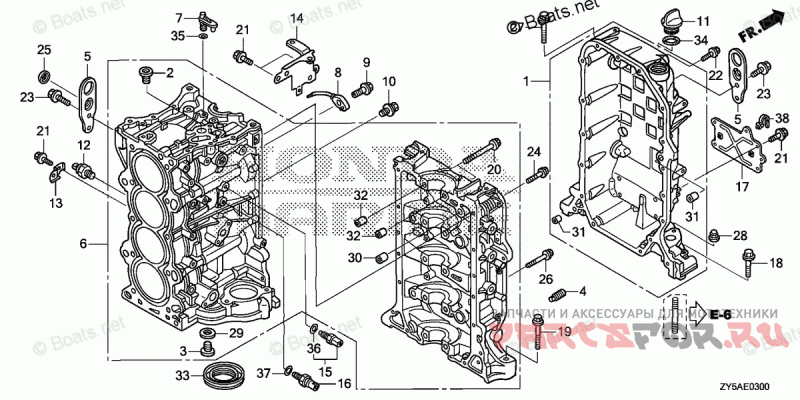

CYLINDER BLOCK

Honda Marine BF150AK2 JA

Honda Marine
#oem кодцена
001
11100-ZY6-405
CRANKCASE
002
11106-PNA-300
BOLT, SEALING (20MM)
003
11106-PR4-013
BOLT, SEALING (28MM)
004
11135-PNA-000
ORIFICE, BLOCK (LOWER)
005
11911-ZY6-000
HANGER, ENGINE
006
12000-ZY6-415ZA
BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)
007
15152-ZY6-000
ORIFICE, OIL JET
008
15280-PRB-A00
BODY, OIL JET
009
15290-PRA-000
BOLT, OIL JET
010
15299-ZY6-000
BOLT-WASHER (8X10)
011
15611-921-000
CAP, OIL (YELLOW)
012
30530-ZY6-003
SENSOR ASSY., KNOCK
013
32114-ZW9-730
BRACKET, CLIP B
014
32114-ZY6-010
BRACKET D, HARNESS CLIP
015
35673-ZY3-003
SENSOR ASSY., WATER TEMPERATURE
016
37260-RNA-A01
SENSOR, OIL PRESSURE
017
38552-ZY6-000
BRACKET, RELAY
018
90001-ZY6-000
BOLT, FLANGE (8X55)
019
90005-ZY6-000
BOLT, FLANGE (12X83)
020
90006-PNA-003
BOLT-WASHER (11X95)
021
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
022
90016-ZW9-000
BOLT, FLANGE (6X25)
023
90026-ZY3-000
BOLT, FLANGE (8X20)
024
90054-ZY3-000
BOLT, FLANGE (8X35)
025
90082-ZY6-003
CAP, BOLT (8MM)
026
90156-ZW4-000
BOLT, FLANGE (8X50)
027
90162-ZW4-000
BOLT, FLANGE (10X70)
028
90204-ZY3-000
NUT, FLANGE CAP (10MM)
029
90401-PR4-000
08T44-S5B-10030 (28MM)
030
90703-PE0-000
PIN, DOWEL (18X22)
031
90715-PC6-000
PIN, DOWEL (13X20)
032
90715-PNA-000
PIN, DOWEL (13X14)
033
91214-RNB-A01
OIL SEAL (80X98X10) (ARAI)
034
91301-805-000
O-RING (26X2.7)
035
91305-ZY6-003
O-RING (6.5X1.5)
036
91307-PNA-003
O-RING (9.5X1.9)
037
91319-PR3-003
O-RING (13X1.5) (ARAI)
038
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
