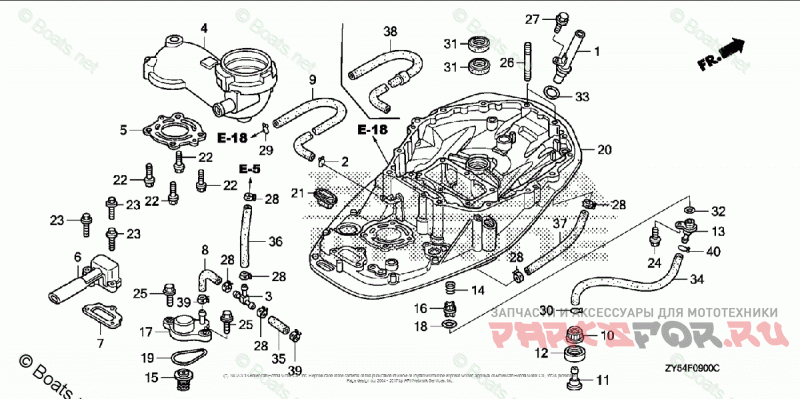

Mount Case

Honda Marine BF135AK0 LA

Honda Marine
#oem кодцена
1
15665-ZW1-020
SEE PART DETAILS - PRI; PIPE, OIL LEVEL
2
16163-GHB-610
CLIP, TUBE
3
17195-MN5-000
T-JOINT
4
18130-ZY6-000ZA
GUIDE, EX. *NH8* (DARK GRAY)
5
18135-ZY6-003
GASKET, EX. GUIDE
6
18211-ZY6-000
PORT, IDLE EX.
7
18212-ZY6-000
GASKET, IDLE EX. PORT
8
19256-ZY6-000
TUBE, WATER RELIEF
10
19270-ZY3-000
NUT, WATER MOUTH
11
19271-ZY3-000
JOINT, WATER HOSE
12
19272-ZY3-000
SEAT, WATER MOUTH
13
19277-ZY3-000ZA
COVER, FLUSH VALVE *NH8* (DARK GRAY) | Use up to Frame SN 1301770.
13
19277-ZZ3-000
COVER, FLUSH VALVE | Use from Frame SN 1301771.
14
19279-ZW9-010
SEE PART DETAILS - PRI; SPRING, FLUSH VALVE
15
19290-ZY6-003
VALVE ASSY., RELIEF
16
19291-ZW9-000
VALVE, FLASH
17
19295-ZY6-000
COVER, RELIEF VALVE
18
19297-ZW9-000
GASKET, FLASH VALVE
19
19317-ZW9-000
O-RING, THERMOSTAT COVER
20
23170-ZY6-000ZA
CASE, MOUNT *NH8* (DARK GRAY)
21
23173-ZY3-010
SEE PART DETAILS - PRI; RUBBER, MOUNT CASE SEAL | Use up to Frame SN 1301631.
22
90014-ZY6-000
BOLT, FLANGE (8X30)
23
90016-ZW9-000
BOLT, FLANGE (6X25)
24
90017-ZY3-000
BOLT, FLANGE (6X16) (ENGINE NO.) | Use up to Frame SN 1010271.
24
90105-ZW9-000
BOLT, FLANGE (6X20) (ENGINE NO.) | Use from Frame SN 1010272.
25
90030-ZY3-000
BOLT, FLANGE (6X22)
26
90045-ZY6-000
BOLT, STUD (10X55)
27
90056-ZY3-000
BOLT, FLANGE (6X12)
28
90601-ZY3-030
CLAMP, TUBE (D10.5)
29
90604-ZV0-000
CLIP, TUBE (B12)
30
90651-ZY6-000
CLIP B1, TUBE
31
91202-ZW5-003
SEAL, WATER (22X35X7)
32
91303-800-000
O-RING (16MM)
33
91309-PJ7-010
O-RING (11.5X3.5)
34
95001-80001-60M
BULK HOSE, FUEL (8X1000) (8X300)
35
95005-70003-30M
BULK HOSE, VACUUM (7X3000) (7X40)
36
95005-70003-30M
BULK HOSE, VACUUM (7X3000) (7X160)
37
95005-70003-30M
BULK HOSE, VACUUM (7X3000) (7X200)
38
19267-ZY6-010
TUBE F, WATER
39
90601-ZY3-030
CLAMP, TUBE (D10.5) (ENGINE NO.) | Use up to Frame SN 1300894.
39
90606-ZY6-003
CLAMP, TUBE (D10.5) (ENGINE NO.) | Use from Frame SN 1301199.
40
90651-ZY6-000
CLIP B1, TUBE | Use up to Frame SN 1301770.
