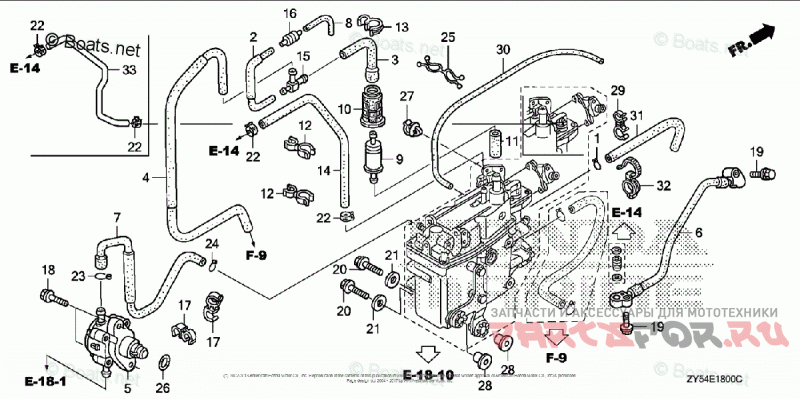

Fuel Pump + Fuel Hose

Honda Marine BF135AK0 LA

Honda Marine
#oem кодцена
1
16163-GHB-610
CLIP, TUBE
2
16196-ZY6-000
TUBE C, AIR VENT
3
16198-ZY6-000
TUBE B, AIR VENT
4
16199-ZY6-000
TUBE, AIR VENT
5
16700-ZY6-013
PUMP ASSY., FUEL (MSDS)
6
16755-ZY6-003
HOSE, FUEL
7
16860-ZY6-000
TUBE B, FUEL | Use up to Engine SN 1008465.
7
16860-ZY6-A00
TUBE B, FUEL | Use from Engine SN 1008466.
8
16881-ZV5-000
TUBE D, FUEL
9
16911-759-003
FILTER, FUEL PUMP
10
16915-ZW5-000
SUSPENSION, STRAINER
11
16952-MZ5-000
TUBE B, FUEL
12
16965-VM0-771
CLAMP, HOSE
13
17368-KV7-671
CLAMP, PIPE
14
17723-ZY6-000
HOSE, PRESSURE REGULATOR RETURN | Use up to Engine SN 1005289.
15
19269-ZY6-000
T-JOINT
16
36135-ZY6-003
VALVE, CHECK
17
53740-SE0-953
CLIP, SENSOR HOSE
18
90010-ZY6-000
BOLT, FLANGE (6X27)
19
90016-ZW9-000
BOLT, FLANGE (6X25)
20
90014-ZW1-000
BOLT-WASHER (8X35) | Use from Engine SN 1003052.
22
90601-ZW5-030
CLAMP, TUBE (D10.7)
23
90601-ZY6-000
CLIP, TUBE (B1 14.5)
24
90604-ZV0-000
CLIP, TUBE (B12) | Use from Engine SN 1003052.
25
90605-ZY6-003
CLIP, FUEL HOSE
26
91317-PA9-003
O-RING (33.2X2.4) (NOK)
27
91547-SE0-003
CLIP, HARNESS
28
91554-ZW1-000
COLLAR (8.5X14.5) | Use from Engine SN 1002492.
29
91599-SH3-A32
CLAMP, PURGE HOSE (NOT AVAILABLE)
30
95001-35003-60M
BULK HOSE, FUEL (3.5X3000) (3.5X430)
31
19273-ZY6-000
TUBE G, WATER | Use from Engine SN 1004833.
31
95005-70003-30M
BULK HOSE, VACUUM (7X3000) (7X400) | Use up to Engine SN 1004832.
32
91558-SM4-003
CLIP, TUBE (135MM) (BLACK) | Use from Engine SN 1001707.
33
17723-ZY6-020
SEE PART DETAILS - PRI; HOSE, PRESSURE REGULATOR RETURN | Use from Engine SN 1005290.
