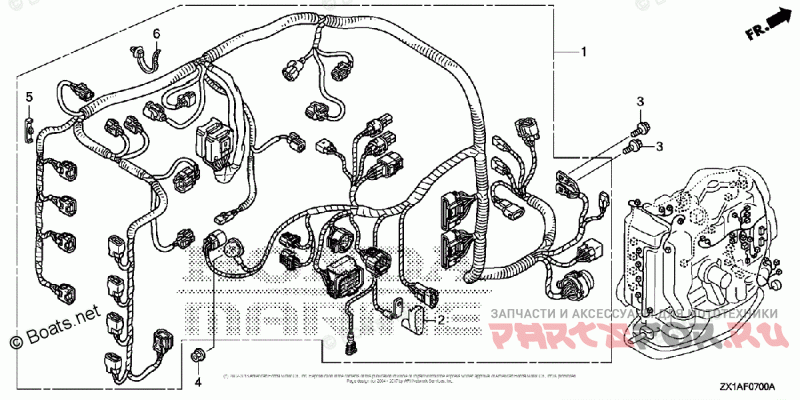

Wire Harness
Honda Marine BF115DK1 LA
| # | oem код | название | цена |
|---|---|---|---|
1 | 32100-ZX1-000 WIRE HARNESS ASSY., MAIN | Use up to Frame SN 1101343. | WIRE HARNESS ASSY., MAIN | Use up to Frame SN 1101343. | |
1 | 32100-ZX1-020 WIRE HARNESS, MAIN | Use from Frame SN 1102042. | WIRE HARNESS, MAIN | Use from Frame SN 1102042. | |
2 | 32414-ZY6-300 COVER B, TERMINAL (L) | COVER B, TERMINAL (L) | |
3 | 90013-ZW9-000 BOLT, FLANGE (6X12) | BOLT, FLANGE (6X12) | |
4 | 90304-ZY3-000 NUT-WASHER (6MM) | NUT-WASHER (6MM) | |
5 | 90653-ZY3-003 CLIP, WIRE HARNESS | CLIP, WIRE HARNESS | |
6 | 91541-S0A-003 CLIP, HARNESS BAND (145MM) (BLACK) | CLIP, HARNESS BAND (145MM) (BLACK) |
