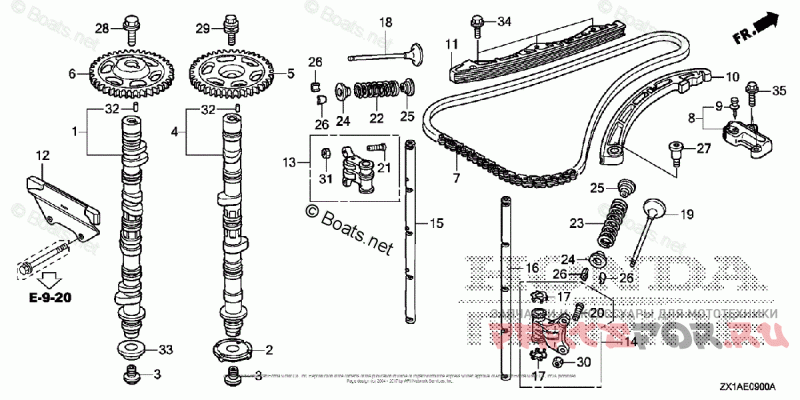

Camshaft + Valve

Honda Marine BF115DK1 LA

Camshaft + Valve

#

oem код

название

цена

1

CAMSHAFT, IN.

CAMSHAFT, IN.

2

PLATE, TDC PULSE

PLATE, TDC PULSE

3

BOLT, SEALING (14MM)

BOLT, SEALING (14MM)

4

CAMSHAFT, EX.

CAMSHAFT, EX.

5

SPROCKET, CAM CHAIN DRIVEN (46T)

SPROCKET, CAM CHAIN DRIVEN (46T)

6

SPROCKET, CAM CHAIN DRIVEN IN. (46T)

SPROCKET, CAM CHAIN DRIVEN IN. (46T)

7

CHAIN (176L) (DAIDO)

CHAIN (176L) (DAIDO)

8

TENSIONER ASSY., CAM CHAIN

TENSIONER ASSY., CAM CHAIN

9

STOPPER (TOOL) | (Optional).

STOPPER (TOOL) | (Optional).

10

ARM, CAM CHAIN TENSIONER

ARM, CAM CHAIN TENSIONER

11

GUIDE, CAM CHAIN

GUIDE, CAM CHAIN

12

GUIDE B, CAM CHAIN

GUIDE B, CAM CHAIN

13

ARM ASSY., ROCKER

ARM ASSY., ROCKER

14

ARM ASSY., EX. ROCKER

ARM ASSY., EX. ROCKER

15

SHAFT, IN. ROCKER

SHAFT, IN. ROCKER

16

SHAFT, EX. ROCKER

SHAFT, EX. ROCKER

17

WASHER, THRUST

WASHER, THRUST

18

VALVE, IN.

VALVE, IN.

19

VALVE, EX.

VALVE, EX.

20

SCREW, TAPPET ADJUSTING

SCREW, TAPPET ADJUSTING

21

SCREW, TAPPET ADJUSTING

SCREW, TAPPET ADJUSTING

22

SPRING, IN. VALVE (PINK) (NIPPON HATSUJO)

SPRING, IN. VALVE (PINK) (NIPPON HATSUJO)

23

SPRING, EX. VALVE (GRAY) (NIPPON HATSUJO)

SPRING, EX. VALVE (GRAY) (NIPPON HATSUJO)

24

RETAINER, VALVE SPRING

RETAINER, VALVE SPRING

25

SEAT, VALVE SPRING

SEAT, VALVE SPRING

26

COTTER, VALVE (FUJI VALVE)

COTTER, VALVE (FUJI VALVE)

27

BOLT, TENSIONER PIVOT

BOLT, TENSIONER PIVOT

28

BOLT, FLANGE (12X47)

BOLT, FLANGE (12X47)

29

BOLT, FLANGE (10X32)

BOLT, FLANGE (10X32)

30

NUT, TAPPET ADJUSTING (TOKAI TRW)

NUT, TAPPET ADJUSTING (TOKAI TRW)

31

NUT, TAPPET ADJUSTING

NUT, TAPPET ADJUSTING

32

PIN, DOWEL (4.2X10.3)

PIN, DOWEL (4.2X10.3)

33

COLLAR, CAMSHAFT

COLLAR, CAMSHAFT

34

BOLT, FLANGE (6X20)

BOLT, FLANGE (6X20)

35

BOLT, FLANGE (6X30)

BOLT, FLANGE (6X30)
