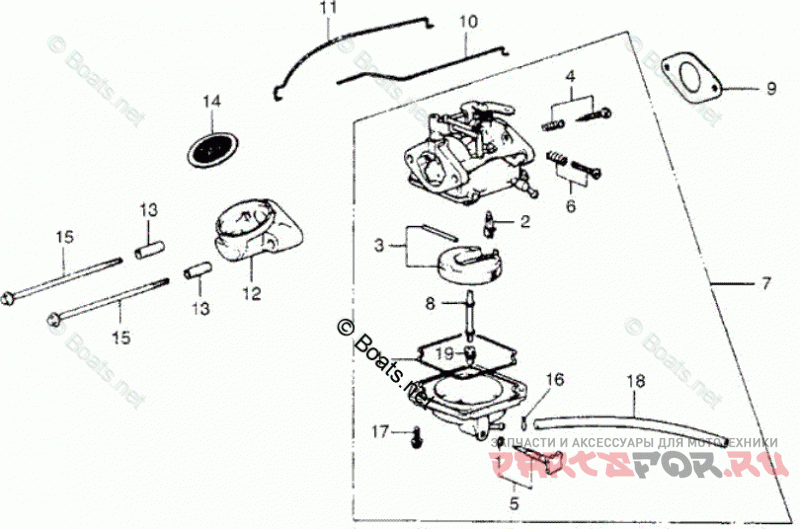

Carburetor + Air Guide

Honda Marine BF100Z LA

Honda Marine
#oem кодцена
001
16010-881-003
GASKET SET
002
16011-147-004
VALVE SET, FLOAT
002
16011-147-305
VALVE SET, FLOAT
002
16011-881-741
VALVE SET, FLOAT
003
16013-881-003
FLOAT SET
004
16016-881-003
SCREW SET A
005
16024-881-003
SCREW SET, DRAIN
005
16024-ZV1-A00
SCREW SET, DRAIN
006
16028-881-003
SCREW SET B (N/A: SEE ASSEMBLY)
007
16100-881-033
CARBURETOR ASSY. (NOT AVAILABLE)
008
16166-881-003
NOZZLE, MAIN (N/A: SEE ASSEMBLY)
009
16201-881-850
GASKET, CARBURETOR
010
16593-881-010
ROD, THROTTLE
011
16622-881-000
ROD, CHOKE
012
17201-881-020
GUIDE, AIR (NOT AVAILABLE)
013
17202-921-000
COLLAR, DISTANCE
014
17203-881-000
TRAP, FLAME
015
90012-882-010
BOLT, FLANGE (6X97)
016
90605-921-000
CLIP B7, TUBE
017
93892-04012-08
SCREW-WASHER (4X12)
018
95001-35003-60M
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X140)
019
99101-124-0720
JET, MAIN (#72)
019
99101-124-0780
JET, MAIN (#78)
019
99101-124-0800
JET, MAIN (#80)
019
99101-124-0820
JET, MAIN (#82)
