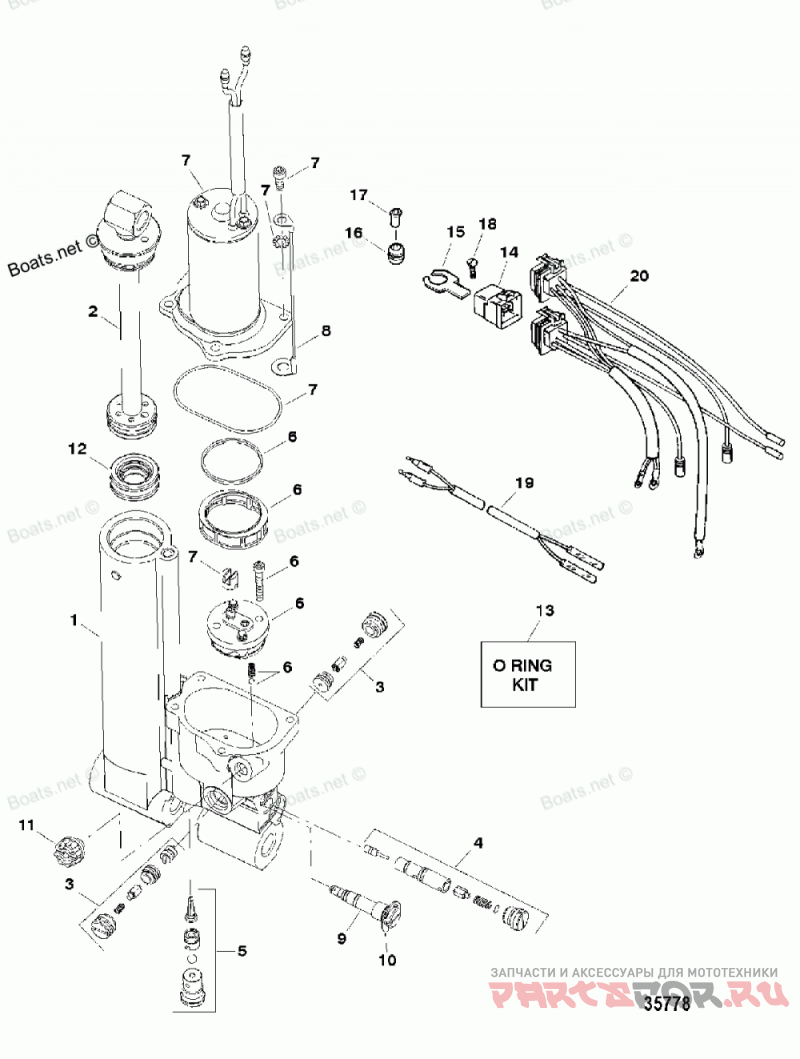

Trim Assembly, Hydraulic

Force H040312VT

Force
#oem кодцена
1
822344A5
POWER TRIM, Hydraulic
2
827670A2
SHOCK ROD ASSEMBLY
3
827671A1
PILOT CHECK ASSEMBLY
4
827672A1
TILT RELIEF VALVE ASSEMBLY
5
827673A1
SEAT ASSEMBLY, Suction
6
827674A1
PUMP ASSEMBLY
7
827675A1
MOTOR ASSEMBLY
8
88238A15
CABLE ASSEMBLY, Ground
9
813442A2
MANUAL RELEASE ASSEMBLY
10
812844
E RING
11
811613
PLUG ASSEMBLY, Reservoir
12
827676
PISTON, Memory
13
827668A1
O-RING KIT
14
821509
RELAY, Trim
15
821382
BRACKET, Relay
16
818967
GROMMET, Relay Bracket
17
818968
BUSHING, Grommet
18
40011129
SCREW, (M6 x 25) Stainless Steel
19
17201A7
HARNESS ASSEMBLY, Trim
20
819514A10
HARNESS ASSEMBLY, Trim
-
822344A7
TRIM KIT, Hydraulic (COMPLETE)
