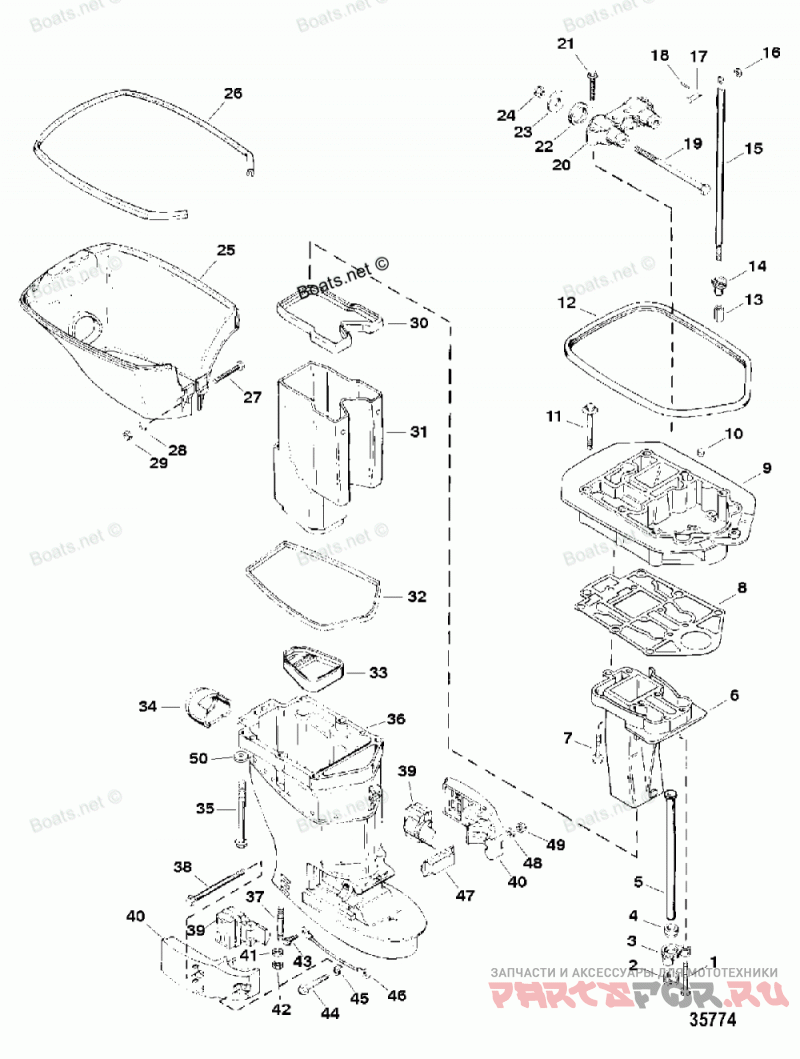

Корпус вертикального вала

Force H040312VT

Корпус вертикального вала

#

oem код

название

цена

1

SCREW, (M8 x 55) Stainless Steel

SCREW, (M8 x 55) Stainless Steel

2

GROMMET, Water Tube

GROMMET, Water Tube

3

CLAMP, Water Tube

CLAMP, Water Tube

4

SEAL, Water Tube

SEAL, Water Tube

5

TUBE, Water (14.650 Inches)

TUBE, Water (14.650 Inches)

6

TUBE, Exhaust

TUBE, Exhaust

7

SCREW, (M8 x 45) Stainless Steel

SCREW, (M8 x 45) Stainless Steel

8

GASKET, Exhaust Tube/Adaptor Plate

GASKET, Exhaust Tube/Adaptor Plate

9

PLATE ASSEMBLY, Adaptor-Lower

PLATE ASSEMBLY, Adaptor-Lower

10

Штифт

Штифт

11

SCREW, (M10 x 75) Hex Flange - Stainless Steel

SCREW, (M10 x 75) Hex Flange - Stainless Steel

12

SEAL, Bottom Cowl

SEAL, Bottom Cowl

13

Муфта сцепления

Муфта сцепления

14

GROMMET, Shift Shaft

GROMMET, Shift Shaft

15

SHIFT SHAFT, Upper

SHIFT SHAFT, Upper

16

WASHER, (.203 x .406 x .040)

WASHER, (.203 x .406 x .040)

17

PIN, Shift Link

PIN, Shift Link

18

Шплинт

Шплинт

19

SCREW, (M12 x 162)

SCREW, (M12 x 162)

20

MOUNT, Upper

MOUNT, Upper

21

SCREW, (M8 x 45) Stainless Steel

SCREW, (M8 x 45) Stainless Steel

22

WASHER, Neoprene

WASHER, Neoprene

23

WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

24

NUT, (M12)

NUT, (M12)

25

TRIM COVER ASSEMBLY (Painted)

TRIM COVER ASSEMBLY (Painted)

26

BUMPER, Trim Cover

BUMPER, Trim Cover

27

SCREW, (M5 x .8 x 60)

SCREW, (M5 x .8 x 60)

28

WASHER, (.220 x .500 x .030) Stainless Steel

WASHER, (.220 x .500 x .030) Stainless Steel

29

NUT, (M5)

NUT, (M5)

30

SEAL, Exhaust Bucket

SEAL, Exhaust Bucket

31

BUCKET, Exhaust

BUCKET, Exhaust

32

BUMPER, Trim Cover

BUMPER, Trim Cover

33

SEAL, Exhaust Tube

SEAL, Exhaust Tube

34

SEAL, Idle Relief

SEAL, Idle Relief

35

SCREW, (M10 x 100)

SCREW, (M10 x 100)

36

HOUSING ASSEMBLY, Driveshaft (Painted)

HOUSING ASSEMBLY, Driveshaft (Painted)

37

STUD, (M10 x 50)

STUD, (M10 x 50)

38

SCREW, (M8 x 120) Stainless Steel

SCREW, (M8 x 120) Stainless Steel

39

MOUNT (LOWER)

MOUNT (LOWER)

40

COVER, Shock Mount (Painted)

COVER, Shock Mount (Painted)

41

WASHER, (.406 x .750 x .104)

WASHER, (.406 x .750 x .104)

42

NUT, (M10)

NUT, (M10)

43

SCREW, (#10-16 x .380)

SCREW, (#10-16 x .380)

44

SCREW, (M8 x 65) Stainless Steel

SCREW, (M8 x 65) Stainless Steel

45

LOCKWASHER, Internal Tooth

LOCKWASHER, Internal Tooth

46

CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground

47

BUMPER (FRONT)

BUMPER (FRONT)

48

Шайба

Шайба

49

NUT, (M8)

NUT, (M8)

50

WASHER, (.406 x .750 x .104 - Black Oxide)

WASHER, (.406 x .750 x .104 - Black Oxide)

-

GASKET SET, Powerhead

GASKET SET, Powerhead

-

POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY
