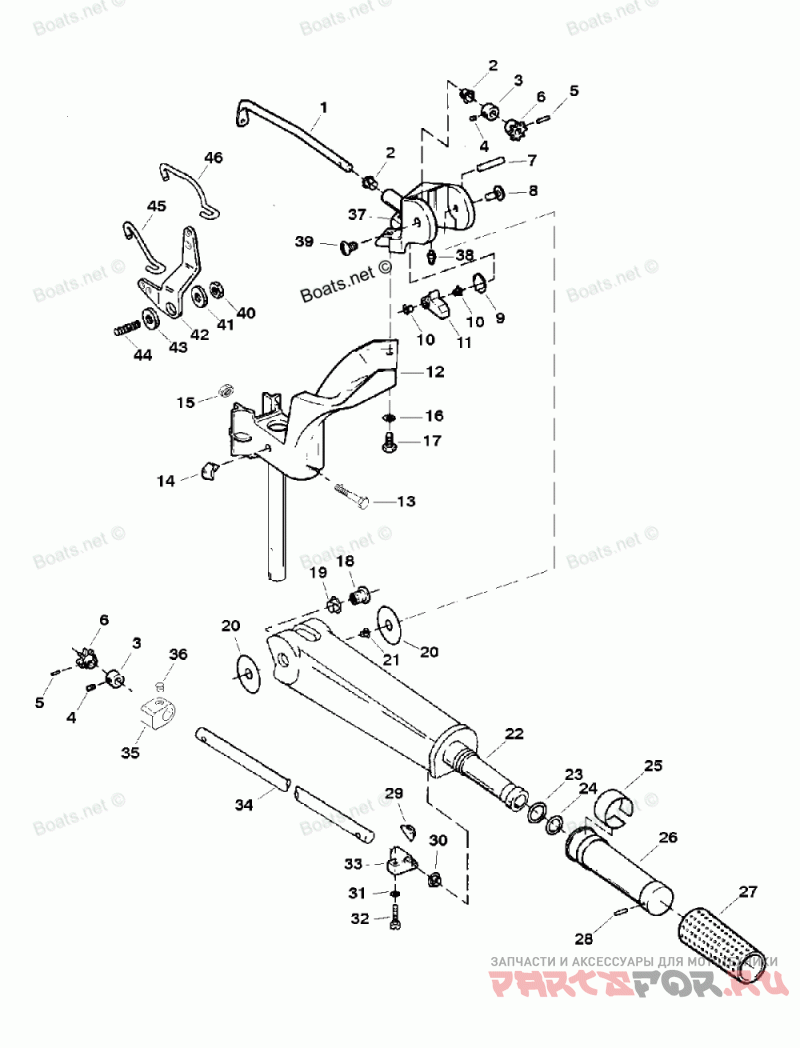

Tiller Handle And Throttle Linkage

Force H025211US

Force
#oem кодцена
1
851928
SHAFT-Throttle Control
2
26841
Втулка
3
FA343178
RETAINER KIT-Steering Shaft
4
832794
SCREW-Set (.250-28 x .250)
5
29908
PIN-Roll
6
8180091
GEAR-Steering Shaft
7
F1807
PIN-Groove
8
823595
SCREW-Pivot
9
F286868
SPRING-Steering Handle Stop
10
26856
Втулка
11
F286490T
STOP-Steering Handle
12
835373A11
BRACKET ASSEMBLY-Steering Arm (Painted)
13
828815
SCREW (.250-20 x 1.750)
14
F286539
Амортизатор ударов
15
814101
NUT (.250-20)
16
72521
LOCKWASHER (.312 Internal)
17
38837
SCREW (.312-18 x 1.125)
18
F2862241
INSERT-Steering Handle Pivot
19
812707
Втулка
20
F286220
WASHER-Steering Handle
21
26856
Втулка
22
819279T3
HANDLE-Steering (Painted)
23
21836
O RING (LARGE)
24
38101
O RING (SMALL)
25
F712894
DECAL-Speed/Shift Indicator
26
828406A1
HANDLE/GRIP ASSEMBLY-Throttle
27
828406
GRIP-Throttle/Steering Handle
28
72255
PIN-Roll
29
819227
WEDGE-Steering Handle
30
97896
Втулка
31
F8058
LOCKWASHER (#10 Internal)
32
F1829
SCREW (#10-24 x .875)
33
F4878161
BEARING-Steering Handle
34
819160
SHAFT-Steering Handle
35
832759
STOP-Throttle
36
832794
SCREW-Set (.250-28 x .250)
37
817751A12
BRACKET ASSEMBLY-Steering (Painted)
38
F523274
FITTING-Grease
39
823594
SCREW-Pivot
40
35814
NUT (.312-24)
41
F286282
WASHER (Special)
42
819148
LEVER-Magneto Control
43
F183813
BEARING-Control Lever
44
834759
STUD (.312-24 x 1.250)
45
826846
LINK-Throttle Shaft
46
824142T
LINK-Throttle Cam
-
819240A6
POWERHEAD ASSEMBLY
