Fuel And Recirculation System для лодочных моторов Force H009201UZ (1998)

Москва и регионы России

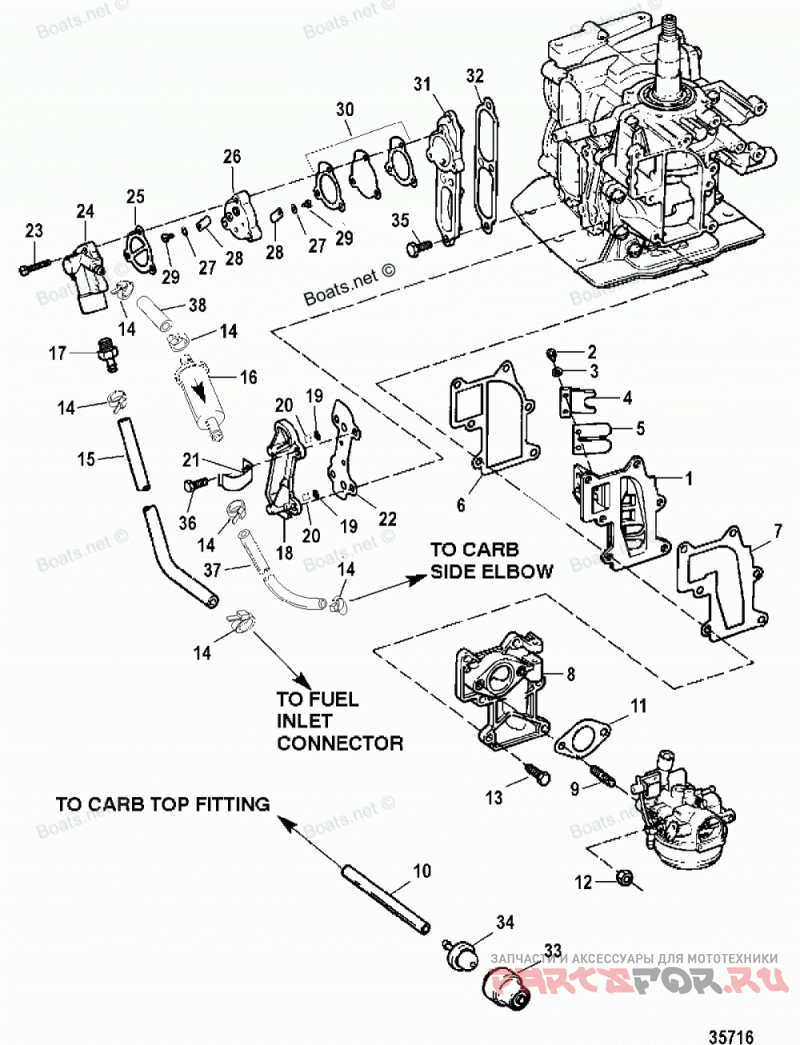

Fuel And Recirculation System

Force H009201UZ

Fuel And Recirculation System

#

oem код

название

цена

1

PLATE ASSEMBLY, Reed

PLATE ASSEMBLY, Reed

2

SCREW, (#6-32 x .25)

SCREW, (#6-32 x .25)

3

WASHER (#6 INTERNAL)

WASHER (#6 INTERNAL)

4

STOP, Reed

STOP, Reed

5

REED

REED

6

GASKET, Reed Plate

GASKET, Reed Plate

7

Прокладка

Прокладка

8

MANIFOLD ASSEMBLY, Carburetor (PAINTED)

MANIFOLD ASSEMBLY, Carburetor (PAINTED)

8

MANIFOLD ASSEMBLY, Carburetor (PAINTED)

MANIFOLD ASSEMBLY, Carburetor (PAINTED)

9

STUD (.250-20 X .910) WITH DRI LOK

STUD (.250-20 X .910) WITH DRI LOK

10

HOSE (18.00 INCH BULK)

HOSE (18.00 INCH BULK)

11

GASKET, Carburetor

GASKET, Carburetor

11

GASKET, Carburetor Mount

GASKET, Carburetor Mount

12

NUT, (.250-20)

NUT, (.250-20)

13

SCREW, (.250-20 x .875) Stainless Steel

SCREW, (.250-20 x .875) Stainless Steel

14

TIE STRAP, (4.00 Inches) (4.00 INCH)

TIE STRAP, (4.00 Inches) (4.00 INCH)

15

HOSE (18.00 INCH BULK)

HOSE (18.00 INCH BULK)

16

Фильтр топливный

Фильтр топливный

17

Фитинг

Фитинг

18

COVER ASSEMBLY, Cylinder Drain (PAINTED)

COVER ASSEMBLY, Cylinder Drain (PAINTED)

19

Водозаборная решетка

Водозаборная решетка

20

CHECK VALVE KIT

CHECK VALVE KIT

21

Зажим

Зажим

22

GASKET, Cylinder Drain Cover

GASKET, Cylinder Drain Cover

23

SCREW (#10-24 X 1.062)

SCREW (#10-24 X 1.062)

24

COVER, Fuel Pump (PAINTED)

COVER, Fuel Pump (PAINTED)

25

Прокладка

Прокладка

26

PLATE ASSEMBLY, Fuel Pump

PLATE ASSEMBLY, Fuel Pump

27

Шайба

Шайба

28

REED

REED

29

SCREW, (#4-40 x .187)

SCREW, (#4-40 x .187)

30

GASKET/DIAPHRAGM SET

GASKET/DIAPHRAGM SET

31

COVER, Transfer Port (PAINTED)

COVER, Transfer Port (PAINTED)

32

GASKET, Transfer Port Cover

GASKET, Transfer Port Cover

33

COVER, Primer Bulb

COVER, Primer Bulb

34

BULB, Primer

BULB, Primer

35

SCREW, (.250-20 x .620)

SCREW, (.250-20 x .620)

36

SCREW (.250-20 X .625)

SCREW (.250-20 X .625)

37

HOSE (18.00 INCH BULK)

HOSE (18.00 INCH BULK)

38

HOSE (18.00 INCH BULK)

HOSE (18.00 INCH BULK)

-

GASKET SET, Short Block

GASKET SET, Short Block

-

GASKET SET, Carburetor

GASKET SET, Carburetor

-

GASKET SET, Short Block

GASKET SET, Short Block

-

GASKET SET, Carburetor

GASKET SET, Carburetor

-

CYLINDER BLOCK ASSEMBLY

CYLINDER BLOCK ASSEMBLY

-

SHORT BLOCK ASSEMBLY

SHORT BLOCK ASSEMBLY
