Cylinder Block Assembly для лодочных моторов Force H025211TS (1997)

Москва и регионы России

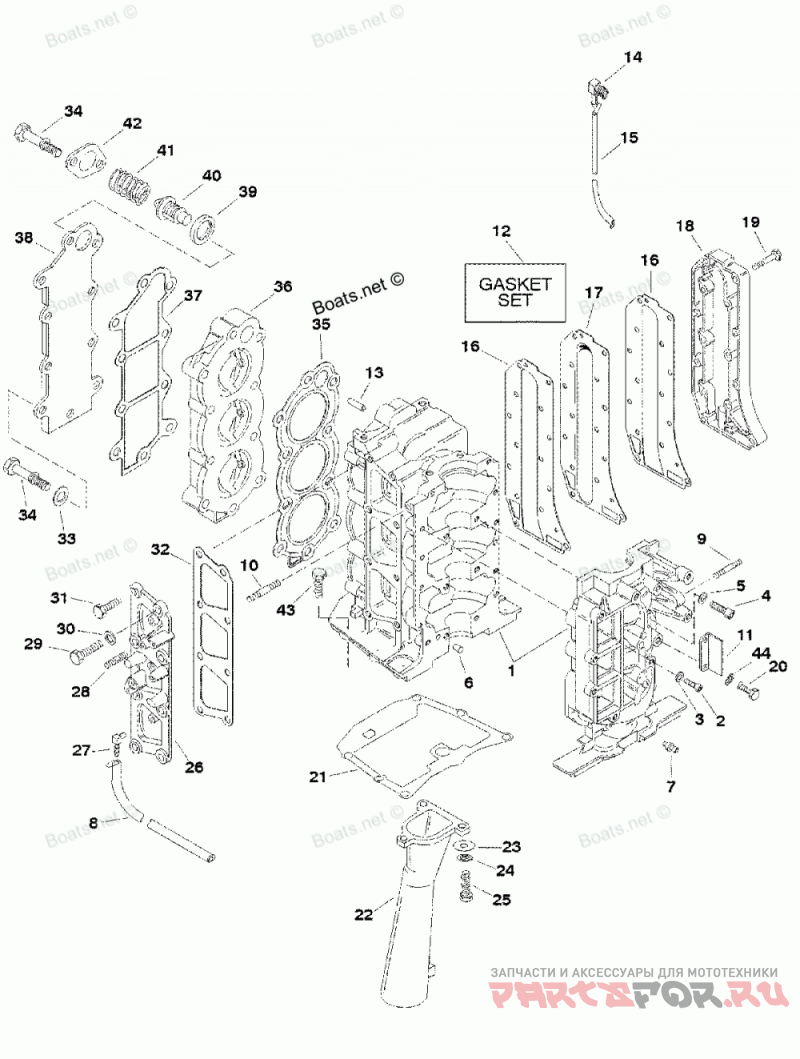

Cylinder Block Assembly

Force H025211TS

Cylinder Block Assembly

#

oem код

название

цена

1

Деталь POWERHEAD ASSY (COMPLETE) (PAINTED)

Деталь POWERHEAD ASSY (COMPLETE) (PAINTED)

1

Деталь CYLINDER ASSEMBLY (PAINTED)

Деталь CYLINDER ASSEMBLY (PAINTED)

2

Деталь SCREW (.250-20 X .750)

Деталь SCREW (.250-20 X .750)

3

Шайба

Шайба

4

Деталь SCREW (.312-18 x 1.00)

Деталь SCREW (.312-18 x 1.00)

5

Шайба

Шайба

6

Штифт

Штифт

7

Деталь VALVE-CHECK

Деталь VALVE-CHECK

7

Деталь TUBE-Water Jacket

Деталь TUBE-Water Jacket

8

Деталь VALVE-Check

Деталь VALVE-Check

8

Трубопровод

Трубопровод

9

Деталь STUD (.312-24 X 1.250)

Деталь STUD (.312-24 X 1.250)

9

Деталь TUBING (20.0 Ft. Bulk)(Cut 2 Pcs-15.00 In.)(Cut 1 Pc-12.058 In.)

Деталь TUBING (20.0 Ft. Bulk)(Cut 2 Pcs-15.00 In.)(Cut 1 Pc-12.058 In.)

10

Деталь STUD (.250-20 X 1.690) WITH DRI LOK

Деталь STUD (.250-20 X 1.690) WITH DRI LOK

10

Деталь STUD (.312-24 x 1.250)

Деталь STUD (.312-24 x 1.250)

11

Деталь BRACKET-THROTTLE STOP

Деталь BRACKET-THROTTLE STOP

11

Деталь STUD (.250-20 x 1.690) With Dri Loc

Деталь STUD (.250-20 x 1.690) With Dri Loc

12

Деталь GASKET SET-POWERHEAD

Деталь GASKET SET-POWERHEAD

12

Деталь BRACKET-Throttle Stop

Деталь BRACKET-Throttle Stop

13

Деталь GASKET SET-Powerhead

Деталь GASKET SET-Powerhead

13

Деталь TUBE-WATER JACKET

Деталь TUBE-WATER JACKET

14

Деталь ELBOW-TELL TALE TUBING

Деталь ELBOW-TELL TALE TUBING

15

Деталь TUBING (7.00 IN.)-TELL TALE

Деталь TUBING (7.00 IN.)-TELL TALE

16

Деталь GASKET-EXHAUST COVER

Деталь GASKET-EXHAUST COVER

17

Деталь PLATE-EXHAUST

Деталь PLATE-EXHAUST

18

Деталь COVER-EXHAUST (PAINTED)

Деталь COVER-EXHAUST (PAINTED)

19

Деталь SCREW (.250-20 x 1.250)

Деталь SCREW (.250-20 x 1.250)

20

Деталь SCREW (.250-20 x .750)-Ground Wire

Деталь SCREW (.250-20 x .750)-Ground Wire

21

Деталь GASKET-Cylinder Mount

Деталь GASKET-Cylinder Mount

22

Деталь TUBE-EXHAUST

Деталь TUBE-EXHAUST

23

Шайба

Шайба

24

Деталь LOCKWASHER (.250)

Деталь LOCKWASHER (.250)

25

Деталь SCREW (.250-20 x .750)

Деталь SCREW (.250-20 x .750)

26

Деталь COVER ASSEMBLY-TRANSFER PORT (PAINTED)

Деталь COVER ASSEMBLY-TRANSFER PORT (PAINTED)

27

Колено

Колено

28

Деталь STUD-INTERLOCK LEVER

Деталь STUD-INTERLOCK LEVER

29

Деталь SCREW (.250-20 X .750)-WASHER HEAD

Деталь SCREW (.250-20 X .750)-WASHER HEAD

30

Шайба

Шайба

31

Деталь SCREW (.250-20 x .750)-Hex Head

Деталь SCREW (.250-20 x .750)-Hex Head

32

Деталь GASKET-TRANSFER PORT COVER

Деталь GASKET-TRANSFER PORT COVER

33

Шайба

Шайба

34

Деталь SCREW (.312-18 X 2.125)

Деталь SCREW (.312-18 X 2.125)

35

Деталь GASKET-Cylinder Head

Деталь GASKET-Cylinder Head

36

Деталь HEAD-Cylinder (Painted)

Деталь HEAD-Cylinder (Painted)

37

Деталь GASKET-CYLINDER HEAD COVER

Деталь GASKET-CYLINDER HEAD COVER

38

Деталь COVER-CYLINDER HEAD (PAINTED)

Деталь COVER-CYLINDER HEAD (PAINTED)

39

Деталь WASHER-THERMOSTAT

Деталь WASHER-THERMOSTAT

40

Деталь THERMOSTAT (130 Deg)

Деталь THERMOSTAT (130 Deg)

41

Деталь SPRING-THERMOSTAT

Деталь SPRING-THERMOSTAT

42

Деталь COVER-THERMOSTAT

Деталь COVER-THERMOSTAT

43

Деталь SCREW (.312-18 x 1.00)

Деталь SCREW (.312-18 x 1.00)

44

Деталь LOCKWASHER (.250)-Ground Screw

Деталь LOCKWASHER (.250)-Ground Screw

-

Деталь POWERHEAD ASSEMBLY

Деталь POWERHEAD ASSEMBLY

-

Деталь GASKET SET-POWERHEAD

Деталь GASKET SET-POWERHEAD
