Карбюратор для лодочных моторов Force H025211TS (1997)

Москва и регионы России

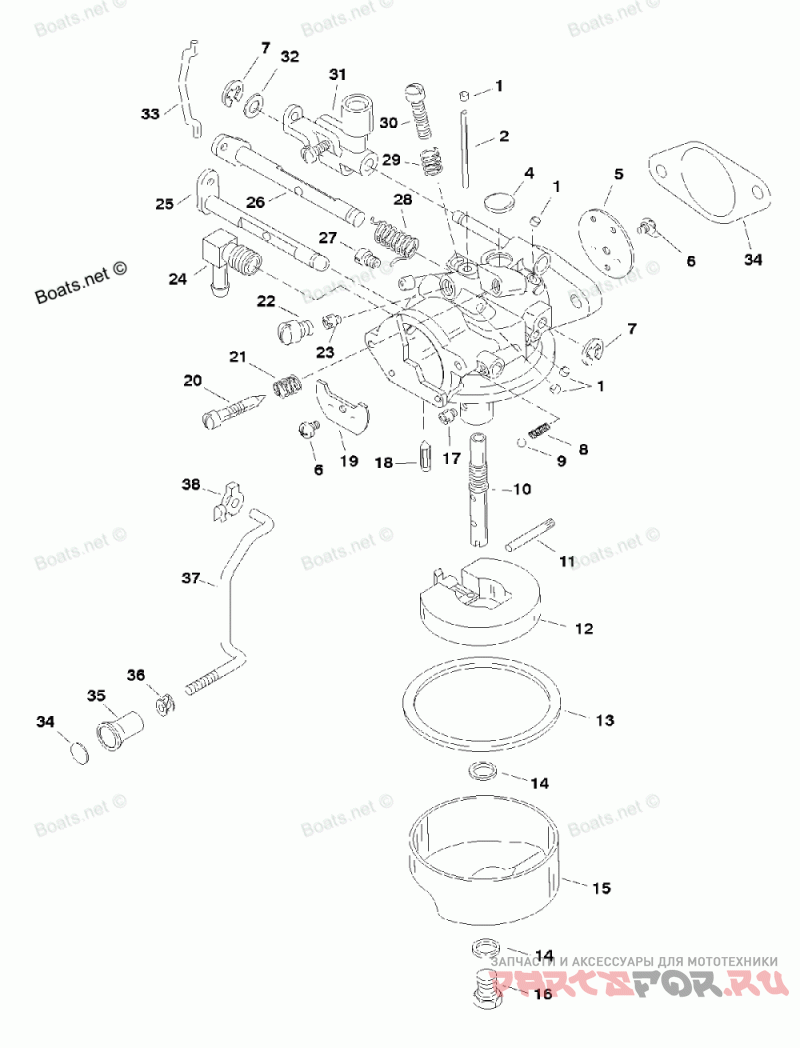

Карбюратор

Force H025211TS

Карбюратор

#

oem код

название

цена

-

CARBURETOR (FO-3C)

CARBURETOR (FO-3C)

1

PLUG-Cup

PLUG-Cup

2

TUBE-By Pass

TUBE-By Pass

3

PLUG-Welch

PLUG-Welch

4

SHUTTER-Throttle

SHUTTER-Throttle

5

SCREW-Shutters

SCREW-Shutters

6

E RING-Throttle Linkage

E RING-Throttle Linkage

7

SPRING-Choke Friction

SPRING-Choke Friction

8

Шарик

Шарик

9

Жиклер главный

Жиклер главный

10

PIN-Float

PIN-Float

11

FLOAT-Fuel Bowl

FLOAT-Fuel Bowl

12

GASKET-Fuel Bowl

GASKET-Fuel Bowl

13

GASKET-Fuel Bowl

GASKET-Fuel Bowl

14

BOWL-Fuel

BOWL-Fuel

15

SCREW-Fuel Bowl

SCREW-Fuel Bowl

16

JET-Main (.058) (0 - 2500 Ft.)

JET-Main (.058) (0 - 2500 Ft.)

16

JET-Main (.056) (2500 - 5000 Ft.)

JET-Main (.056) (2500 - 5000 Ft.)

16

JET-Main (.054) (5000 - 7500 Ft.)

JET-Main (.054) (5000 - 7500 Ft.)

16

JET-Main (.052) (7500 - 10000 Ft.)

JET-Main (.052) (7500 - 10000 Ft.)

17

NEEDLE-Inlet

NEEDLE-Inlet

18

SHUTTER-Choke

SHUTTER-Choke

19

SCREW-Idle Mixture

SCREW-Idle Mixture

20

SPRING-Idle Mixture Screw

SPRING-Idle Mixture Screw

21

SCREW-Sealing

SCREW-Sealing

22

JET (.046)-Throttle

JET (.046)-Throttle

23

ELBOW-Fuel

ELBOW-Fuel

24

SHAFT AND LEVER-Choke

SHAFT AND LEVER-Choke

25

SHAFT AND LEVER-Throttle

SHAFT AND LEVER-Throttle

26

JET (.054)-Idle Air Bleed

JET (.054)-Idle Air Bleed

27

SPRING-Throttle Shaft

SPRING-Throttle Shaft

28

SPRING-Idle Speed

SPRING-Idle Speed

29

SCREW-Idle Speed

SCREW-Idle Speed

30

LINKAGE-Throttle

LINKAGE-Throttle

31

Шайба

Шайба

32

WIRE-Throttle Shaft

WIRE-Throttle Shaft

33

GASKET-Carburetor Mount

GASKET-Carburetor Mount

34

INSERT-Choke Rod

INSERT-Choke Rod

35

KNOB-Choke

KNOB-Choke

36

Втулка

Втулка

37

ROD-Choke

ROD-Choke

38

RETAINER-Choke Rod

RETAINER-Choke Rod

NS

GASKET SET-Carburetor

GASKET SET-Carburetor

NS

REPAIR KIT-Carburetor

REPAIR KIT-Carburetor

-

GASKET SET-Powerhead

GASKET SET-Powerhead
