Tiller Handle & Throttle Linkage для лодочных моторов Force H025211TD (1997)

Москва и регионы России

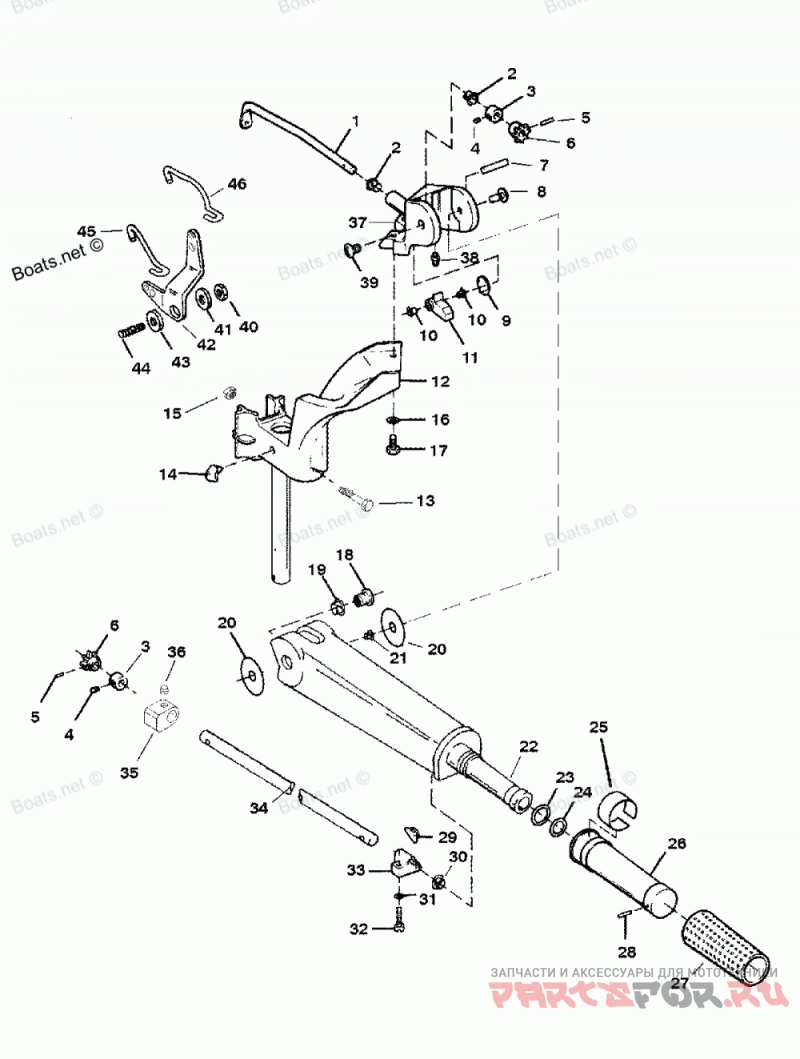

Tiller Handle & Throttle Linkage

Force H025211TD

Tiller Handle & Throttle Linkage

#

oem код

название

цена

1

SHAFT-MAGNETO CONTROL

SHAFT-MAGNETO CONTROL

1

SHAFT-THROTTLE CONTROL

SHAFT-THROTTLE CONTROL

2

Втулка

Втулка

3

RETAINER KIT-STEERING SHAFT

RETAINER KIT-STEERING SHAFT

4

SCREW-SET (.250-28 X .250)

SCREW-SET (.250-28 X .250)

5

PIN-ROLL

PIN-ROLL

6

GEAR-STEERING SHAFT

GEAR-STEERING SHAFT

7

PIN-GROOVE

PIN-GROOVE

8

SCREW-PIVOT (SPECIAL)

SCREW-PIVOT (SPECIAL)

9

SPRING-STEERING HANDLE STOP

SPRING-STEERING HANDLE STOP

10

Втулка

Втулка

11

STOP-STEERING HANDLE

STOP-STEERING HANDLE

12

ARM/KINGPIN ASSY-STEERING (PAINTED)

ARM/KINGPIN ASSY-STEERING (PAINTED)

12

BRACKET ASSY-STEERING ARM (PAINTED)

BRACKET ASSY-STEERING ARM (PAINTED)

13

SCREW (.250-20 X 1.750)

SCREW (.250-20 X 1.750)

14

Амортизатор ударов

Амортизатор ударов

15

NUT (.250-20)

NUT (.250-20)

16

LOCKWASHER (.312 INTERNAL)

LOCKWASHER (.312 INTERNAL)

17

SCREW (.312-18 X 1.125)

SCREW (.312-18 X 1.125)

18

INSERT-STEERING HANDLE PIVOT

INSERT-STEERING HANDLE PIVOT

19

Втулка

Втулка

20

WASHER-STEERING HANDLE

WASHER-STEERING HANDLE

21

Втулка

Втулка

22

HANDLE-STEERING (PAINTED)

HANDLE-STEERING (PAINTED)

23

O RING (LARGE)

O RING (LARGE)

24

O RING (SMALL)

O RING (SMALL)

25

DECAL-SPEED/SHIFT INDICATOR

DECAL-SPEED/SHIFT INDICATOR

26

HANDLE/GRIP ASSEMBLY-THROTTLE

HANDLE/GRIP ASSEMBLY-THROTTLE

27

GRIP-THROTTLE/STEERING HANDLE

GRIP-THROTTLE/STEERING HANDLE

28

PIN-ROLL

PIN-ROLL

29

WEDGE-STEERING HANDLE

WEDGE-STEERING HANDLE

30

Втулка

Втулка

31

LOCKWASHER (#10 INTERNAL)

LOCKWASHER (#10 INTERNAL)

32

SCREW (#10-24 X .875)

SCREW (#10-24 X .875)

33

BEARING-STEERING HANDLE

BEARING-STEERING HANDLE

34

SHAFT-STEERING HANDLE

SHAFT-STEERING HANDLE

35

STOP-THROTTLE

STOP-THROTTLE

36

SCREW-SET (.250-28 X .250)

SCREW-SET (.250-28 X .250)

37

BRACKET ASSEMBLY-STEERING (PAINTED)

BRACKET ASSEMBLY-STEERING (PAINTED)

38

FITTING-GREASE

FITTING-GREASE

39

SCREW-PIVOT (SPECIAL)

SCREW-PIVOT (SPECIAL)

40

NUT (.312-24)

NUT (.312-24)

41

WASHER (SPECIAL)

WASHER (SPECIAL)

42

LEVER-MAGNETO CONTROL

LEVER-MAGNETO CONTROL

43

BEARING-CONTROL LEVER

BEARING-CONTROL LEVER

44

STUD (.312-24 X 1.250)

STUD (.312-24 X 1.250)

45

LINK-MAGNETO SHAFT

LINK-MAGNETO SHAFT

46

LINK-THROTTLE CAM

LINK-THROTTLE CAM

-
