Reed Plate-manifold Assembly для лодочных моторов Force H025201TD (1997)

Москва и регионы России

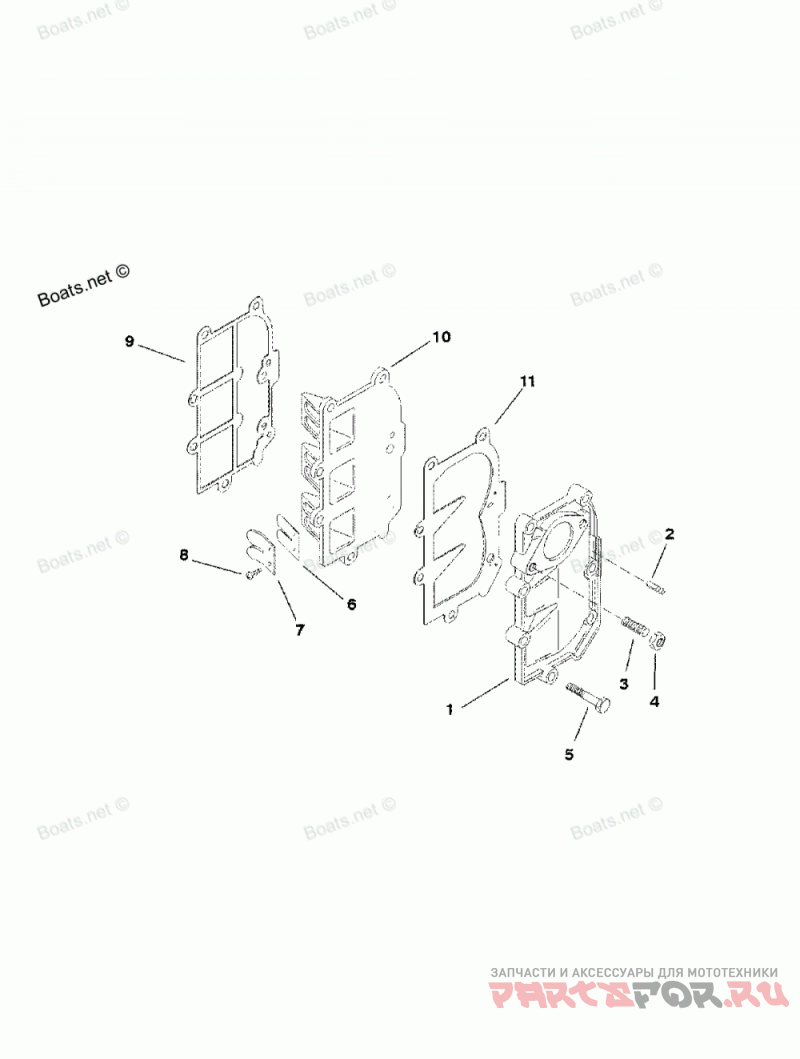

Reed Plate-manifold Assembly

Force H025201TD

Reed Plate-manifold Assembly

#

oem код

название

цена

1

MANIFOLD ASSEMBLY-INTAKE

MANIFOLD ASSEMBLY-INTAKE

2

VALVE-CHECK

VALVE-CHECK

3

STUD (.250-20 X .910) WITH DRI LOC

STUD (.250-20 X .910) WITH DRI LOC

4

NUT (.250-20)-CARBURETOR MOUNT

NUT (.250-20)-CARBURETOR MOUNT

5

SCREW (.250-20 X 1.250)

SCREW (.250-20 X 1.250)

6

REED

REED

7

STOP-REED

STOP-REED

8

SCREW W/LOCKWASHER (#6-32 X .312)

SCREW W/LOCKWASHER (#6-32 X .312)

9

GASKET-REED PLATE

GASKET-REED PLATE

10

PLATE-REED

PLATE-REED

11

GASKET-INTAKE MANIFOLD

GASKET-INTAKE MANIFOLD

-

GASKET SET-POWERHEAD

GASKET SET-POWERHEAD

-

POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY
