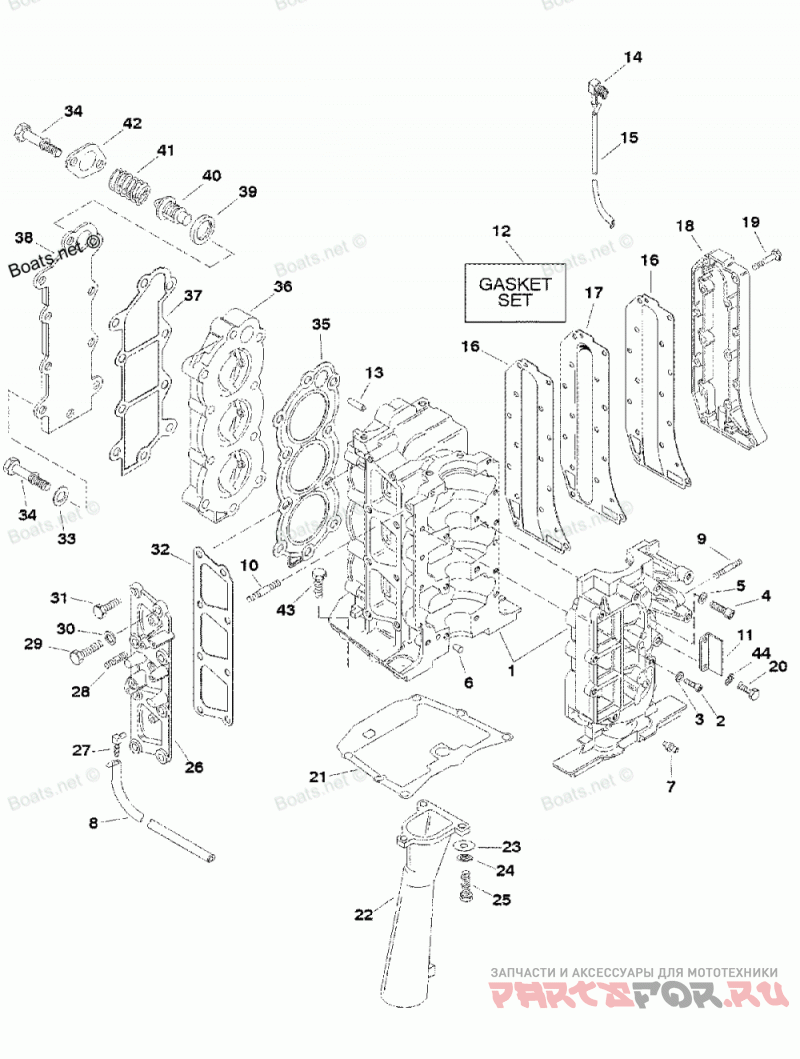

Cylinder Block Assembly

Force H025201TD

Force
#oem кодцена
1
819240A3
POWERHEAD ASSY (COMPLETE) (PAINTED)
-
819240A3
POWERHEAD ASSEMBLY (PAINTED)
1
819240A2
CYLINDER ASSEMBLY (PAINTED)
2
92160
SCREW (.250-20 X .750)
3
29245
Шайба
4
54523
SCREW (.312-18 X 1.00)
5
20084
Шайба
6
F8559
Штифт
7
819243
TUBE-WATER JACKET
7
42658
VALVE-CHECK
8
42658
Обратный клапан
8
99130122
Трубопровод
9
F286440
STUD (.312-24 X 1.250)
9
99130122
TUBING (20.0 FT. BULK)
10
826590
STUD (.250-20 X 1.690) WITH DRI LOK
10
F286440
STUD (.312-24 X 1.250)
11
834753
BRACKET-THROTTLE STOP
11
826590
STUD (.250-20 X 1.690) WITH DRI LOC
12
809516A1
Комплет прокладок
13
819136T
COVER-EXHAUST (PAINTED)
13
819243
TUBE-WATER JACKET
14
88780
ELBOW-TELL TALE TUBING
14
F1581
SCREW (.250-20 X 1.250)
15
549507
TUBING (7.00 IN.)-TELL TALE
15
819140
GASKET-EXHAUST COVER
16
819140
GASKET-EXHAUST COVER
16
819152
PLATE-EXHAUST
17
F2040
SCREW (.250-20 X .625)-GROUND WIRE
17
819152
PLATE-EXHAUST
18
819136T
COVER-EXHAUST (PAINTED)
18
819498
GASKET-CYLINDER MOUNT
19
F1581
SCREW (.250-20 X 1.250)
19
819157T1
TUBE-EXHAUST
20
90192
SCREW (.250-20 X .750)-GROUND WIRE
21
26992
LOCKWASHER (.250)
21
819498
GASKET-CYLINDER MOUNT
22
819137T
COVER ASSEMBLY-TRANSFER PORT (PAINTED)
22
819157T1
TUBE-EXHAUST
23
29245
Шайба
23
15133
Колено
24
26992
LOCKWASHER (.250)
24
F681134
STUD-INTERLOCK LEVER
25
90192
SCREW (.250-20 X .750)
25
F1535
SCREW (.250-20 X .750)-HEX HEAD
26
819143
GASKET-TRANSFER PORT COVER
26
819137T
COVER ASSEMBLY-TRANSFER PORT (PAINTED)
27
8191382
GASKET-CYLINDER HEAD
27
15133
Колено
28
F681134
STUD-INTERLOCK LEVER
28
819145T1
HEAD-CYLINDER (PAINTED)
29
90192
SCREW (.250-20 X .750)-WASHER HEAD
29
8191391
GASKET-CYLINDER HEAD COVER
30
819134T
COVER-CYLINDER HEAD (PAINTED)
30
28927
Шайба
31
819439T
COVER-THERMOSTAT
31
F1535
SCREW (.250-20 X .750)-HEX HEAD
32
819143
GASKET-TRANSFER PORT COVER
32
F1882
SCREW (.312-18 X 2.125)
33
814806
Шайба
34
F1882
SCREW (.312-18 X 2.125)
34
F658504
WASHER-THERMOSTAT
35
8191382
GASKET-CYLINDER HEAD
35
F970682
THERMOSTAT (130 DEGREES)
36
819161
SPRING-THERMOSTAT
36
819145T1
HEAD-CYLINDER (PAINTED)
37
8191391
GASKET-CYLINDER HEAD COVER
37
28927
Шайба
38
819134T
COVER-CYLINDER HEAD (PAINTED)
38
90192
SCREW (.250-20 X .750)-WASHER HEAD
39
F658504
WASHER-THERMOSTAT
39
88780
ELBOW-TELL TALE TUBING
40
549507
TUBING (7.00 IN.)-TELL TALE
40
F970682
THERMOSTAT (130 DEGREES)
41
819161
SPRING-THERMOSTAT
41
29245
Шайба
42
819439T
COVER-THERMOSTAT
42
834753
BRACKET-THROTTLE STOP
43
35386
SCREW (.312-18 X 1.00)
44
78968
LOCKWASHER (.250)-GROUND SCREW
-
809516A1
GASKET SET-POWERHEAD
