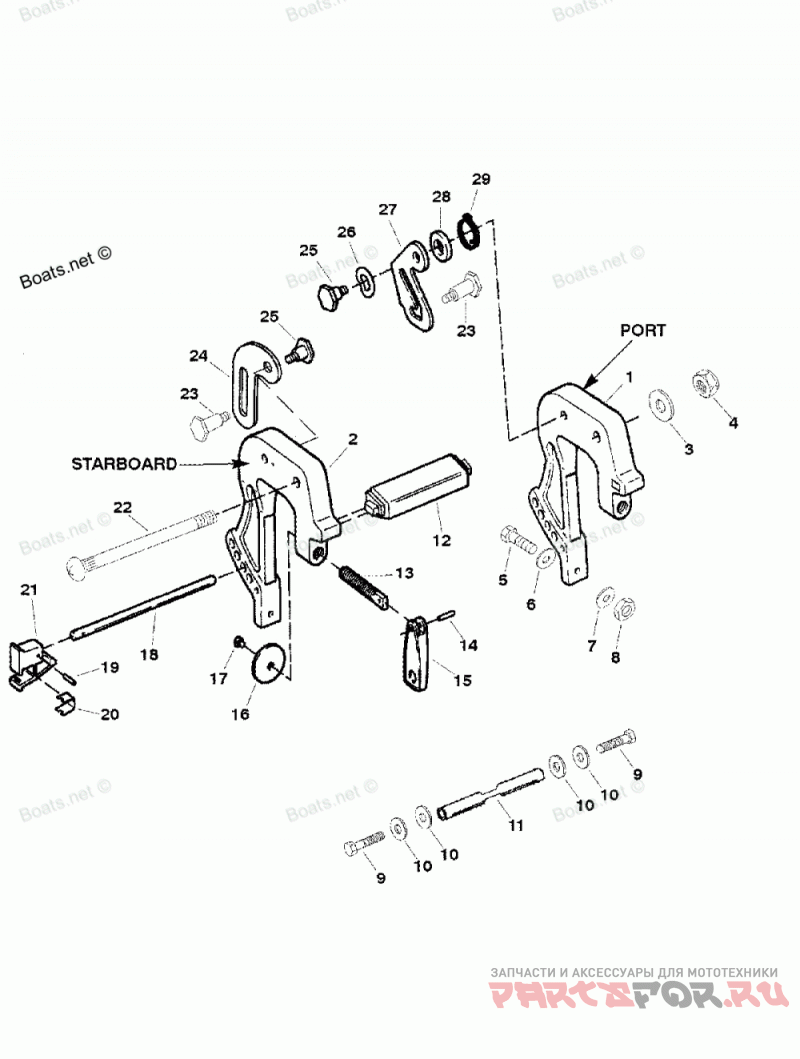

Clamp Brackets

Force H025201TD

Force
#oem кодцена
1
850073T
BRACKET-STERN (PAINTED) (PORT)
1
830295T
BRACKET-STERN (PAINTED)
2
850073T1
BRACKET-STERN (PAINTED) (STARBOARD)
2
F617037
BOLT-PIVOT-STERN BRACKET (.375-16 X 6.880)
3
20553
Шайба
3
832820
SCREW (.250-20 X 3.00)-MOUNTING
4
29245
WASHER (THIN)-MOUNTING
4
F7026
NUT (.375-16)
5
67983
WASHER-MOUNTING
5
832820
SCREW (.250-20 X 3.00)-MOUNTING
6
29245
WASHER (THIN)-MOUNTING
6
13855
NUT (.250-20)-MOUNTING
7
67983
WASHER-MOUNTING
7
830564
HANDLE-CARRYING
8
13855
NUT (.250-20)-MOUNTING
8
826248
SCREW-STERN BRACKET
9
24198
PIN-ROLL
9
4000332
SCREW (M6 X 35)
10
29245
Шайба
10
F424075T
HANDLE-CLAMP SCREW (PAINTED)
11
852963
Проставка
11
F24074
FOOT-STERN BRACKET SCREW
12
830564
HANDLE-CARRYING
12
69022
SCREW (#10-32 X .500)
13
FA617113
BAR KIT-LOCK-STERN BRACKET
13
826248
SCREW-STERN BRACKET
14
38489
PIN-ROLL
14
24198
PIN-ROLL
15
F424075T
HANDLE-CLAMP SCREW (PAINTED)
15
F286461
SPRING-LOCK BAR HANDLE
16
F24074
FOOT-STERN BRACKET SCREW
16
F286114
HANDLE-LOCK BAR
17
69022
SCREW (#10-32 X .500)
17
F7026
NUT (.375-16)
18
20553
Шайба
18
851924A2
TILT PIN ASSEMBLY-STERN BRACKET
19
38489
PIN-ROLL
19
819707
PIN-TILT LOCK (.250-20)
20
F286461
SPRING-LOCK BAR HANDLE
20
826251
LEVER-TILT LOCK
21
851929
HANDLE-LOCK BAR
21
F2864221
PIVOT-TILT LOCK (.312-18)
22
69150
WASHER-WAVE
22
850185
BOLT-PIVOT-STERN BRACKET (.375-16 X 7.375)
23
F429541
LOCK-TILT
23
819707
PIN-TILT LOCK (.250-20)
24
826251
LEVER-TILT LOCK
24
819226
SPACER-TILT LOCK
25
F2864221
PIVOT-TILT LOCK (.312-18)
25
F2865441
SPRING-TILT LOCK
26
69150
WASHER-WAVE
27
F429541
LOCK-TILT
28
819226
SPACER-TILT LOCK
29
F2865441
SPRING-TILT LOCK
