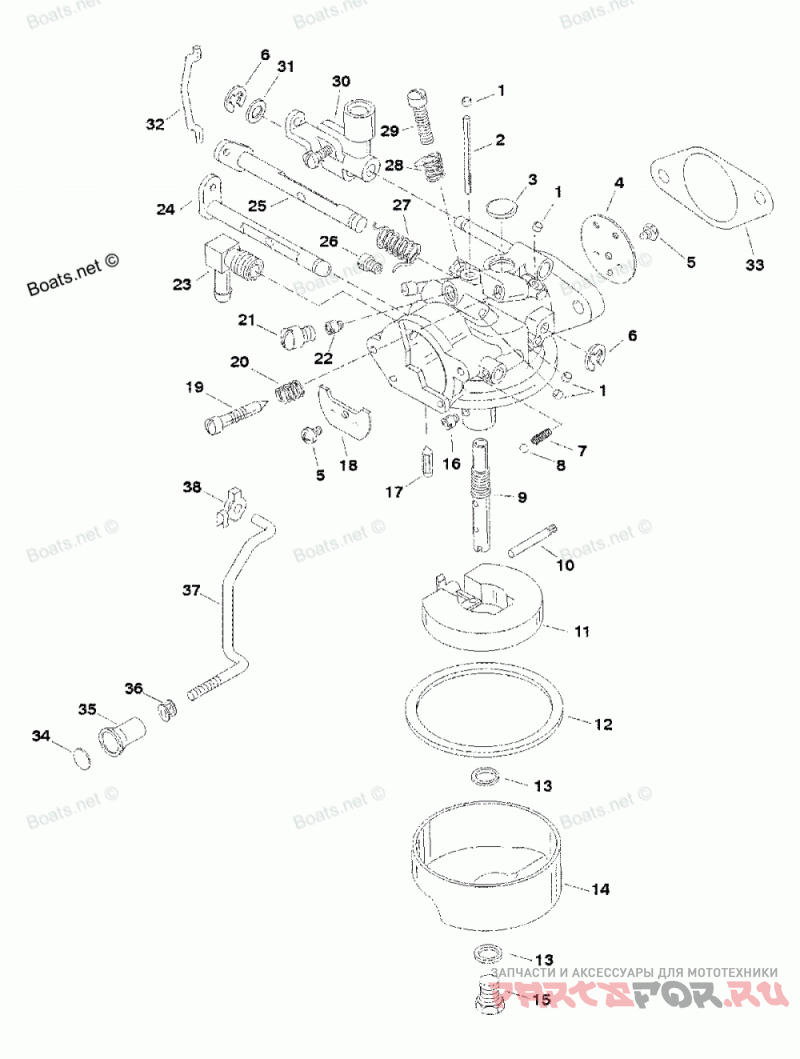

Carburetor (1300-828531t1)

Force H025201TD

Force
#oem кодцена
-
828531T1
CARBURETOR (FO-3B)
1
FO10588
PLUG-CUP
2
809447
TUBE-BY PASS
3
FO16128
PLUG-WELCH
4
809442
SHUTTER-THROTTLE
5
809441
SCREW-SHUTTERS
6
809446
E RING-THROTTLE LINKAGE
7
FO8805
SPRING-CHOKE FRICTION
8
FO4784
Шарик
9
809624
Жиклер главный
10
FO13944
PIN-FLOAT
11
F10346
FLOAT-FUEL BOWL
12
FO15623
GASKET-FUEL BOWL
13
FO2510
GASKET-FUEL BOWL
14
FO15366
BOWL-FUEL
15
5128
SCREW-FUEL BOWL
16
809448
JET-MAIN (.058) (0 - 2500 FT.)
16
5213
JET-MAIN (.056) (2500 - 5000 FT.)
16
5225
JET-MAIN (.054) (5000 - 7500 FT.)
16
6359
JET-MAIN (.052) (7500 - 10000 FT.)
17
F10265
NEEDLE-INLET
18
F10344
SHUTTER-CHOKE
19
F10268
SCREW-IDLE MIXTURE
20
27160
SPRING-IDLE MIXTURE SCREW
21
F10275
SCREW-SEALING
22
809625
JET (.046)-THROTTLE
23
F10347
ELBOW-FUEL
24
809440
SHAFT AND LEVER-CHOKE
25
809439
SHAFT AND LEVER-THROTTLE
26
5225
JET (.054)-IDLE AIR BLEED
27
F10350
SPRING-THROTTLE SHAFT
28
809445
SPRING-IDLE SPEED
29
809444
SCREW-IDLE SPEED
30
F10290
LINKAGE-THROTTLE
31
F10242
Шайба
32
809443
WIRE-THROTTLE SHAFT
33
F715906
GASKET-CARBURETOR MOUNT
34
F681677
INSERT-CHOKE ROD
35
F286547
KNOB-CHOKE
36
F197319
Втулка
37
819154
ROD-CHOKE
38
830569
RETAINER-CHOKE ROD
-
FK10352
GASKET SET-CARBURETOR
-
809449A1
REPAIR KIT-CARBURETOR
-
809516A1
GASKET SET-POWERHEAD
-
819240A3
POWERHEAD ASSEMBLY
