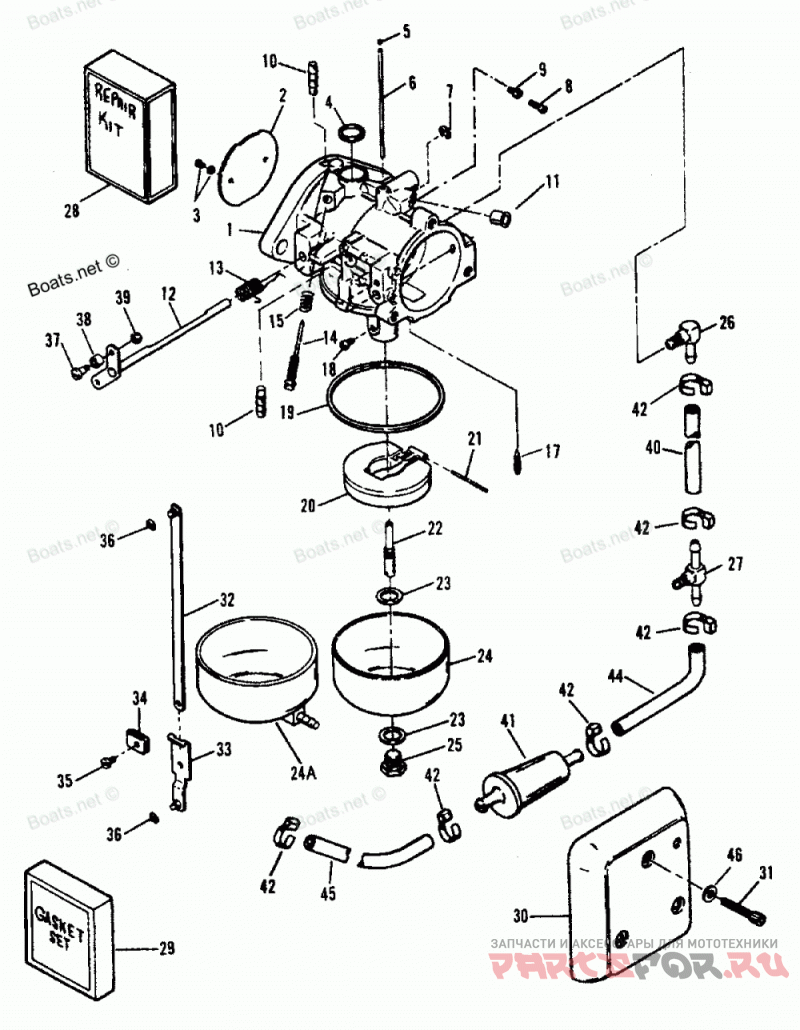

Карбюратор

Force H120422RX

Force
#oem кодцена
1
820203
CARBURETOR
1
820195
CARBURETOR
2
FO16142
SHUTTER-THROTTLE
3
F10328
SCREW-SHUTTER
4
FO16128
PLUG-WELCH
5
FO10588
PLUG-CUP
6
FO16993
TUBE-BY PASS
7
FO16620
E RING-THROTTLE SHAFT
8
F10275
SCREW-SEALING
9
F10273
JET (.047)-IDLE AIR
10
F10274
NOZZLE-PRIMER
11
F10263
CUP-METERING
12
FO17884
SHAFT AND LEVER-THROTTLE
13
FO16143
SPRING-THROTTLE SHAFT
14
F10268
SCREW-IDLE MIXTURE
15
27160
SPRING-IDLE MIXTURE SCREW
17
F10265
NEEDLE-INLET
18
FO14191
JET-MAIN FUEL
18
5733
JET-MAIN FUEL
18
6247
JET-MAIN FUEL
18
FO13193
JET-MAIN FUEL
18
FO13949
JET-MAIN FUEL
19
FO15623
GASKET-FUEL BOWL
20
F10346
FLOAT-FUEL BOWL
21
FO13944
PIN-FLOAT
22
FO16133
Жиклер главный
23
FO5323
GASKET-FUEL BOWL
24A
820492
BOWL-FUEL (TOP CARB)
24
FO16130
BOWL-FUEL (BOTTOM CARB)
25
FO16132
SCREW-FUEL BOWL
26
F84314-2
ELBOW (L) (TOP CARB)
27
F85314-1
TEE (T) (BOTTOM CARB)
28
FK10103-2
REPAIR KIT-CARBURETOR
29
FK10023
GASKET SET-CARBURETOR
30
F511708-3
COVER-CARBURETOR
31
F2192
SCREW (.250-20 X 1.750)
32
FA178233
TIE BAR ASSEMBLY-THROTTLE
33
FA85193
END ASSEMBLY-TIE BAR
34
F1693
NUT (#8-32)
35
F1064
SCREW (#8-32 X .375)
36
21058
E RING-RETAINING
37
F333316
SHAFT-THROTTLE ROLLER
38
819225
Ролик
39
F1997
NUT (-8-32)
40
99127109
Шланг
41
816296
Фильтр топливный
42
816311
CABLE TIE (8.00 IN.)
44
99127109
Шланг
45
99127109
Шланг
46
29245
Шайба
