Зажигание для лодочных моторов Force H120412RX (1995)

Москва и регионы России

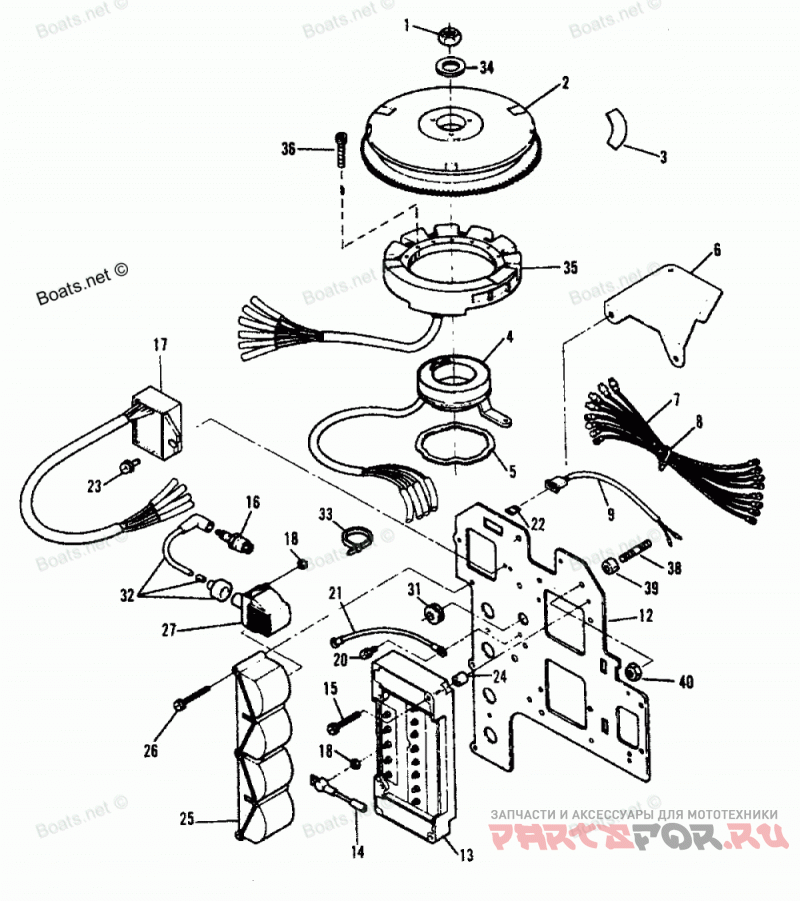

Зажигание

Force H120412RX

Зажигание

#

oem код

название

цена

1

NUT (.750-16)

NUT (.750-16)

2

FLYWHEEL ASSEMBLY

FLYWHEEL ASSEMBLY

3

DECAL KIT-SHIFT TO NEUTRAL

DECAL KIT-SHIFT TO NEUTRAL

4

TRIGGER ASSEMBLY

TRIGGER ASSEMBLY

5

WASHER-WAVE

WASHER-WAVE

6

GUARD-IGNITION HARNESS

GUARD-IGNITION HARNESS

7

HARNESS ASSEMBLY-GROUND

HARNESS ASSEMBLY-GROUND

8

CABLE TIE (8.00 IN.)

CABLE TIE (8.00 IN.)

9

SOCKET ASSEMBLY-FUSE

SOCKET ASSEMBLY-FUSE

12

PLATE-IGNITION MOUNT

PLATE-IGNITION MOUNT

13

SWITCHBOX ASSEMBLY

SWITCHBOX ASSEMBLY

14

CABLE ASSEMBLY-ADAPTOR

CABLE ASSEMBLY-ADAPTOR

15

SCREW (-10-24 X 1.250)

SCREW (-10-24 X 1.250)

16

SPARK PLUG

SPARK PLUG

16

SPARK PLUG

SPARK PLUG

17

Реле регулятора

Реле регулятора

18

NUT (-10-32)

NUT (-10-32)

20

SCREW (-10-24 X .625)

SCREW (-10-24 X .625)

21

CABLE ASSEMBLY (BLACK)

CABLE ASSEMBLY (BLACK)

22

FUSE (20 AMP)

FUSE (20 AMP)

23

SCREW (.250-20 X 1.500)

SCREW (.250-20 X 1.500)

24

Втулка

Втулка

25

COVER-COIL

COVER-COIL

26

SCREW (-10-24 X 2.250)

SCREW (-10-24 X 2.250)

27

COIL ASSEMBLY-IGNITION

COIL ASSEMBLY-IGNITION

31

Уплотнитель резиновый

Уплотнитель резиновый

32

CABLE ASSEMBLY-HIGH TENSION

CABLE ASSEMBLY-HIGH TENSION

33

CABLE TIE (8.500 IN.)

CABLE TIE (8.500 IN.)

34

Шайба

Шайба

35

STATOR ASSEMBLY

STATOR ASSEMBLY

36

SCREW (-10-24 X 1.00)

SCREW (-10-24 X 1.00)

38

STUD (.312-18 X 2.250)

STUD (.312-18 X 2.250)

39

Проставка

Проставка

40

NUT (.312-18)

NUT (.312-18)

NS

CABLE TIE (4.00 IN.)

CABLE TIE (4.00 IN.)
