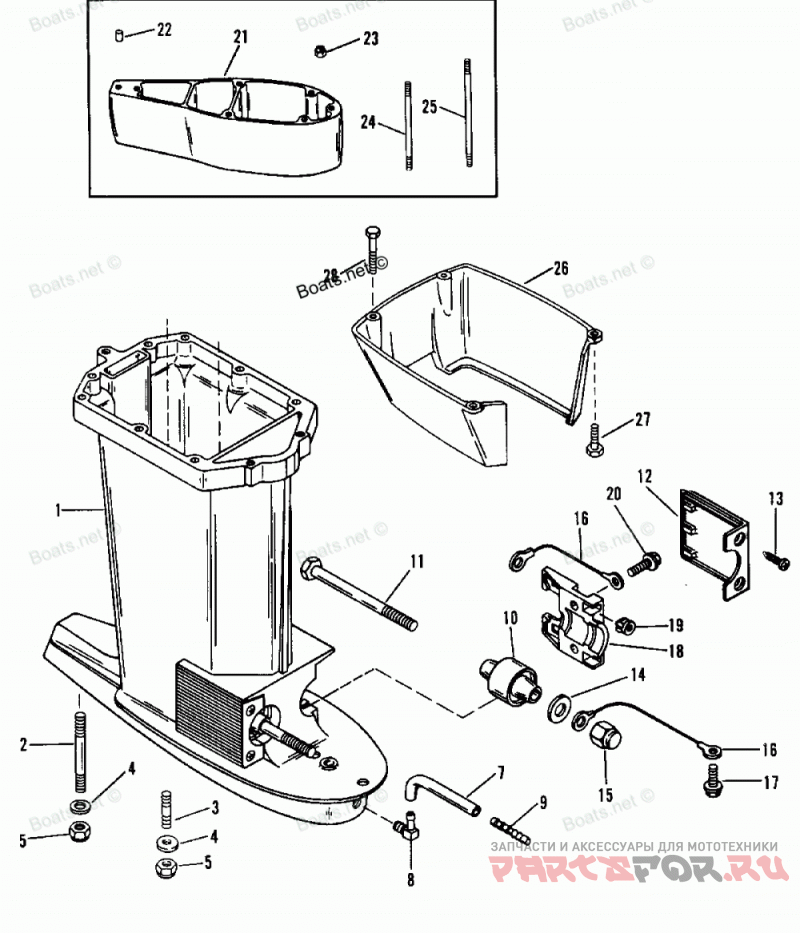

Корпус вертикального вала для лодочных моторов Force H090412RR (1995)

Москва и регионы России

Корпус вертикального вала

Force H090412RR

Корпус вертикального вала

#

oem код

название

цена

1

HOUSING ASSEMBLY, Driveshaft (Painted)

HOUSING ASSEMBLY, Driveshaft (Painted)

2

STUD (M10 x 100)

STUD (M10 x 100)

3

STUD (M10 x 63)

STUD (M10 x 63)

4

Шайба

Шайба

5

NUT (M10)

NUT (M10)

7

PICK-UP ASSEMBLY, Speedometer

PICK-UP ASSEMBLY, Speedometer

8

CONNECTOR (90 Deg)

CONNECTOR (90 Deg)

9

CONNECTOR (STRAIGHT)

CONNECTOR (STRAIGHT)

10

MOUNT (LONG)

MOUNT (LONG)

10

MOUNT (X-LONG)

MOUNT (X-LONG)

11

BOLT (M12 x 154)

BOLT (M12 x 154)

12

COVER (Painted)

COVER (Painted)

13

SCREW (12-24 x 5/8")

SCREW (12-24 x 5/8")

14

Шайба

Шайба

15

NUT (M12)

NUT (M12)

16

WIRE ASSEMBLY, Ground

WIRE ASSEMBLY, Ground

17

SCREW (1/4-20 x 1/2")

SCREW (1/4-20 x 1/2")

18

CLAMP, Lower Mount

CLAMP, Lower Mount

19

NUT (Special)

NUT (Special)

20

SCREW (M8 x 25)

SCREW (M8 x 25)

21

SPACER KIT (Painted)

SPACER KIT (Painted)

22

Штифт

Штифт

22

PIN, Dowel (With Hole)

PIN, Dowel (With Hole)

23

NUT (M10)

NUT (M10)

24

STUD (M10 x 190)

STUD (M10 x 190)

25

STUD (M10 x 227)

STUD (M10 x 227)

26

TRIM COVER (Painted)

TRIM COVER (Painted)

27

SCREW (M6 x 16)

SCREW (M6 x 16)

28

SCREW (M6 x 50)

SCREW (M6 x 50)
