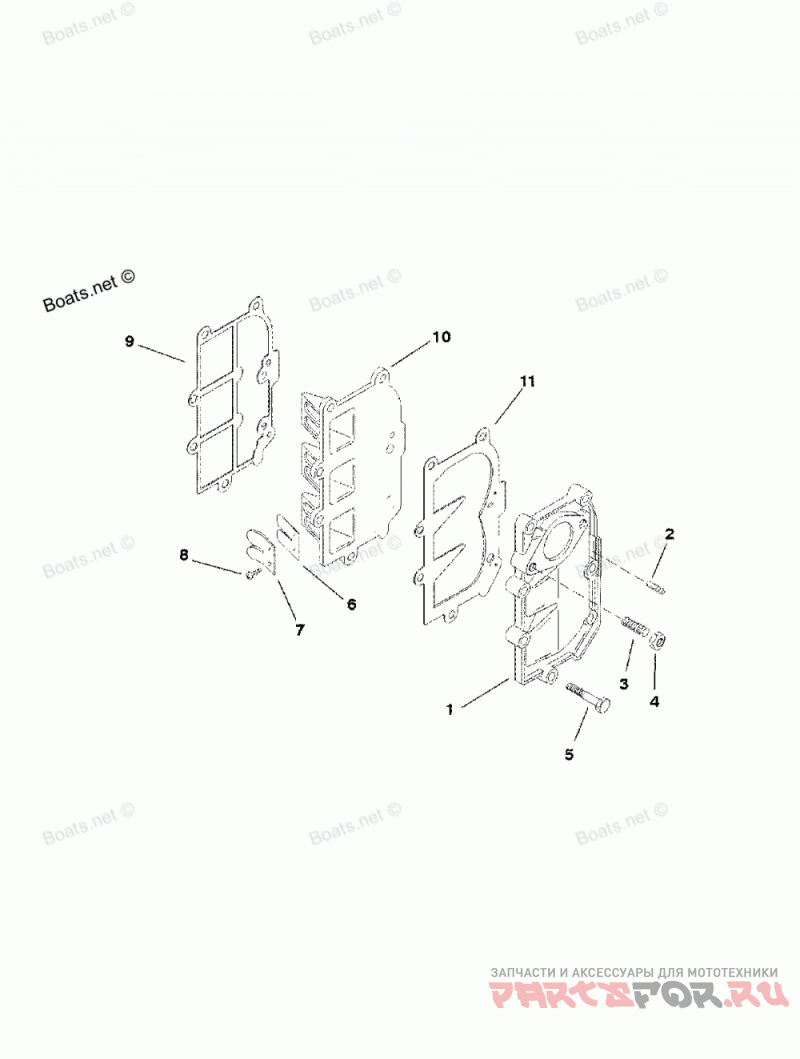

Reed Plate-manifold Assembly
Force H025211RD
| # | oem код | название | цена |
|---|---|---|---|
1 | 819150A1 MANIFOLD ASSEMBLY-INTAKE | MANIFOLD ASSEMBLY-INTAKE | |
2 | 42698 VALVE-CHECK | VALVE-CHECK | |
3 | 826622 STUD (.250-20 X .910) WITH DRI LOC | STUD (.250-20 X .910) WITH DRI LOC | |
4 | 20890 NUT (.250-20)-CARBURETOR MOUNT | NUT (.250-20)-CARBURETOR MOUNT | |
5 | F1581 SCREW (.250-20 X 1.250) | SCREW (.250-20 X 1.250) | |
6 | 827308 REED | REED | |
7 | 827307 STOP-REED | STOP-REED | |
8 | 819074 SCREW W/LOCKWASHER (#6-32 X .312) | SCREW W/LOCKWASHER (#6-32 X .312) | |
9 | 819142 GASKET-REED PLATE | GASKET-REED PLATE | |
10 | 819153T PLATE-REED | PLATE-REED | |
11 | 819141 GASKET-INTAKE MANIFOLD | GASKET-INTAKE MANIFOLD | |
- | 809516A1 POWERHEAD GASKET SET | POWERHEAD GASKET SET |
