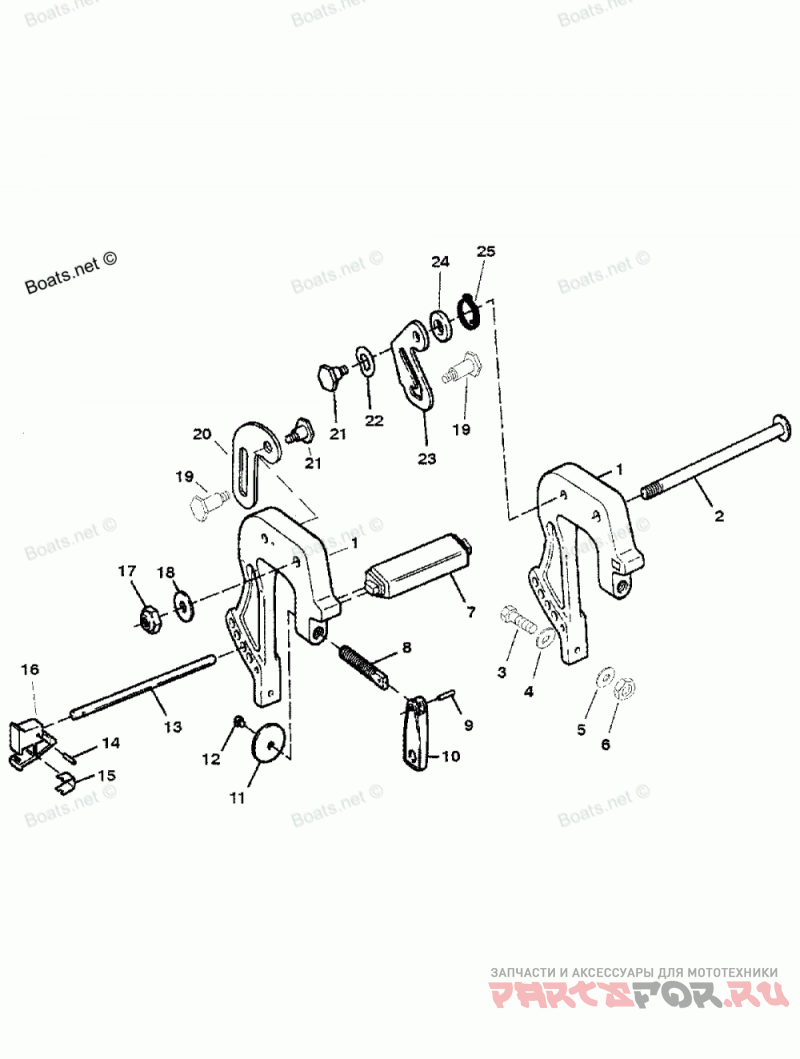

Clamp Brackets

Force H025201RD

Force
#oem кодцена
1
830295T
BRACKET-STERN (PAINTED)
2
F617037
BOLT-PIVOT-STERN BRACKET (.375-16 X 6.880)
3
832820
SCREW (.250-20 X 3.00)-MOUNTING
4
29245
WASHER (THIN)-MOUNTING
5
67983
WASHER-MOUNTING
6
13855
NUT (.250-20)-MOUNTING
7
830564
HANDLE-CARRYING
8
826248
SCREW-STERN BRACKET
9
24198
PIN-ROLL
10
F424075T
HANDLE-CLAMP SCREW (PAINTED)
11
F24074
FOOT-STERN BRACKET SCREW
12
69022
SCREW (#10-32 X .500)
13
FA617113
BAR KIT-LOCK-STERN BRACKET
14
38489
PIN-ROLL
15
F286461
SPRING-LOCK BAR HANDLE
16
F286114
HANDLE-LOCK BAR
17
F7026
NUT (.375-16)
18
20553
Шайба
19
819707
PIN-TILT LOCK (.250-20)
20
826251
LEVER-TILT LOCK
21
F2864221
PIVOT-TILT LOCK (.312-18)
22
69150
WASHER-WAVE
23
F429541
LOCK-TILT
24
819226
SPACER-TILT LOCK
25
F2865441
SPRING-TILT LOCK
