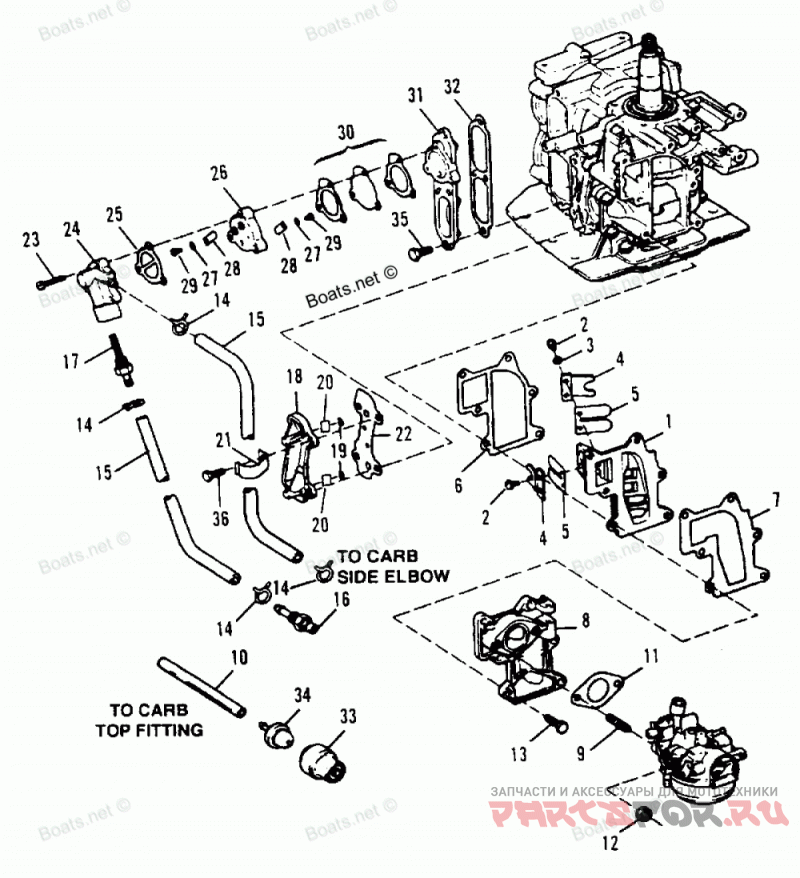

Fuel And Recirculation System

Force H015201RS

Force
#oem кодцена
1
FA715158
PLATE ASSEMBLY, Reed
2
28430
SCREW (6-32 x 1/4")
3
F1704
LOCKWASHER (#6 Internal)
4
F715161
STOP, Reed
5
F31160-2
REED
6
F286159-1
GASKET, Reed Plate
7
F715168
Прокладка
8
FA715167
MANIFOLD KIT, Carburetor (Painted)
9
826622
STUD (1/4-20 x .91) With Dry Loc
10
F40253-1
HOSE, Primer Bulb to Carb (5-3/4") (Cut as Req d)
11
F715906
GASKET, Carburetor
12
20890
NUT (1/4-20)
13
28668
SCREW (1/4-20 x 7/8")
14
F2706772
Зажим
15
F40253-1
HOSE, Fuel (8-1/4") (13.38") (Cut as Req d)
16
F197767-2
BUSHING, Fuel
17
F901811
FILTER, Fuel Pump
18
FA429471
COVER ASSEMBLY, Cylinder Drain
19
F429811
Водозаборная решетка
20
817741A1
VALVE KIT
21
F286772-1
Зажим
22
825188
GASKET, Cylinder Drain Cover
23
F1069
SCREW (10-24 x 1-1/16")
24
819993T1
COVER, Fuel Pump (Painted)
25
F24748-2
Прокладка
26
F2A24757
PLATE ASSEMBLY, Fuel Pump
27
18552
Шайба
28
F18160-3
REED
29
F1286
SCREW (4-40 x 3/16")
30
818043A1
GASKET/DIAPHRAGM SET
31
8201162
COVER, Transfer Port
32
825183
GASKET, Transfer Port Cover
33
F681954-1
COVER, Primer Bulb
34
F681046
BULB, Primer
35
98254
SCREW (1/4-20 x 5/8")
36
F1922
SCREW (1/4-20 x 5/8")
