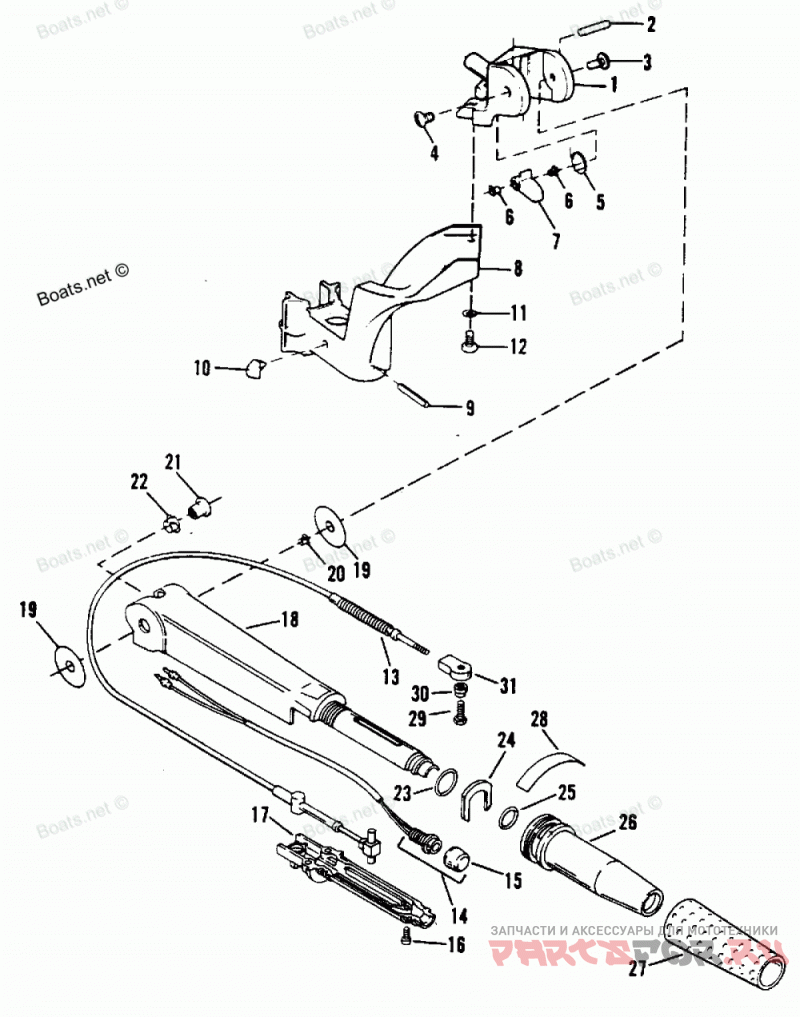

Steering Handle-twist Grip Throttle

Force H009201RS

Force
#oem кодцена
1
817751T1
BRACKET, Steering (Painted)
2
F1807
PIN, Groove
3
823595
SCREW, Steering Handle Pivot
4
823594
SCREW, Steering Handle Pivot
5
F286868
SPRING, Steering Handle Stop
6
26856
Втулка
7
F286490
STOP, Steering Handle
8
FA286582T
ARM KIT, Steering (Painted)
9
F1805
Палец
10
F286539
Амортизатор ударов
11
78968
LOCKWASHER (1/4" Internal)
12
28635
SCREW (1/4-20 x 5/8")
13
826592
CABLE ASSEMBLY, Throttle
14
824440A9
SWITCH ASSEMBLY, Stop
15
824466A3
COVER ASSEMBLY, Stop Switch
16
826575
SCREW (8-32 x 5/8")
17
827252
ARM, Steering (LOWER)
18
826609T
HANDLE, Steering (Painted)
19
F286220
Шайба
20
26856
Втулка
21
F286224-1
INSERT, Steering Handle Pivot
22
812707
Втулка
23
21836
O RING (LARGE)
24
F702178
RETAINER, Grip
25
23145
O RING (SMALL)
26
F702137
GRIP, Steering Handle
27
F458695
SLEEVE, Steering Handle Grip
28
F712894
DECAL, Speed Indicator
29
824352
SCREW (10-24 x 3/8")
30
826591
Втулка
31
F702035
BEARING, Connector (10-24 RH)
