Стартер для лодочных моторов Force H009201RS (1995)

Москва и регионы России

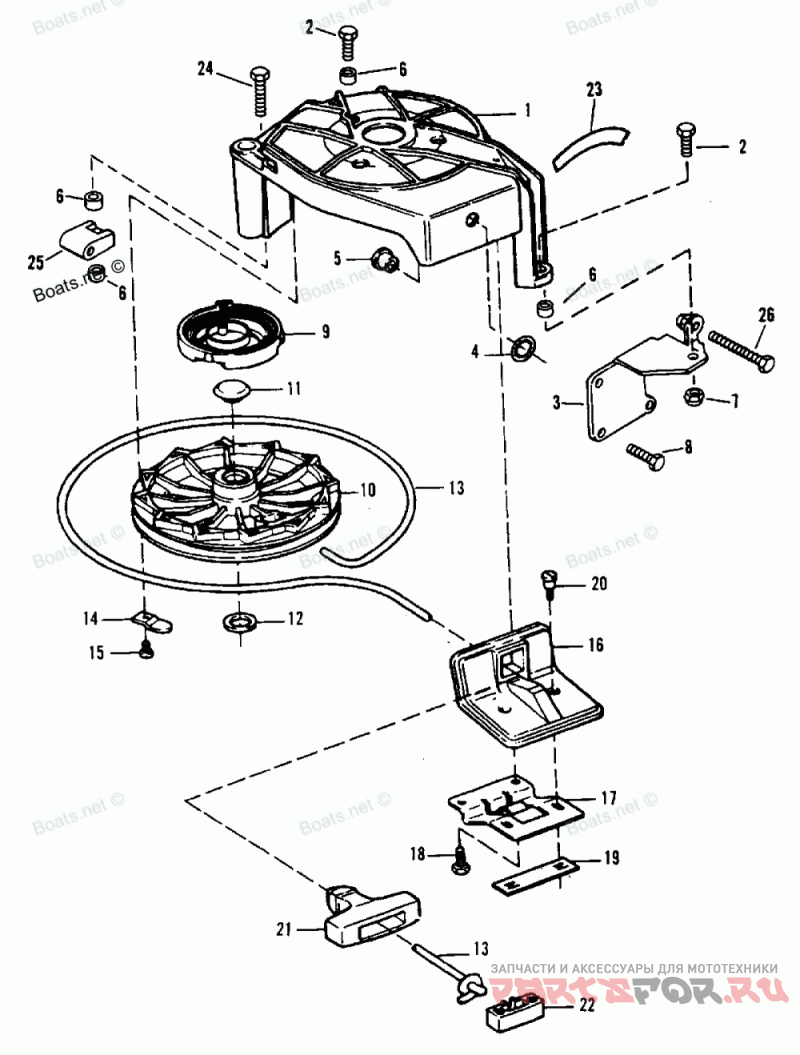

Стартер

Force H009201RS

Стартер

#

oem код

название

цена

1

HOUSING, Starter

HOUSING, Starter

2

SCREW (1/4-20 x 3/4")

SCREW (1/4-20 x 3/4")

3

BRACKET ASSEMBLY, Starter Housing Front

BRACKET ASSEMBLY, Starter Housing Front

4

Стопорное кольцо

Стопорное кольцо

5

INSERT, Starting Housing Rope

INSERT, Starting Housing Rope

6

INSERT, Starter Housing

INSERT, Starter Housing

7

NUT (1/4-20)

NUT (1/4-20)

8

SCREW (1/4-20 x 5/8")

SCREW (1/4-20 x 5/8")

9

SPRING, Starter Rewind

SPRING, Starter Rewind

10

PULLEY ASSEMBLY, Starter Rewind

PULLEY ASSEMBLY, Starter Rewind

11

Заглушка

Заглушка

12

SEAL, Pulley Bearing

SEAL, Pulley Bearing

13

ROPE (65")

ROPE (65")

14

RETAINER, Starter Pulley

RETAINER, Starter Pulley

15

SCREW (10-16 x 1/2")

SCREW (10-16 x 1/2")

16

SUPPORT ASSEMBLY, Handle

SUPPORT ASSEMBLY, Handle

17

PLATE, Handle Support

PLATE, Handle Support

18

SCREW (1/4-14 x 1/2")

SCREW (1/4-14 x 1/2")

19

FASTENER, Handle Support Plate

FASTENER, Handle Support Plate

20

Винт

Винт

21

HANDLE, Starter Rope

HANDLE, Starter Rope

22

RETAINER, Starter Rope

RETAINER, Starter Rope

23

DECAL KIT, Shift to Neutral

DECAL KIT, Shift to Neutral

24

SCREW (1/4-20 x 1-1/4")

SCREW (1/4-20 x 1-1/4")

25

RETAINER, Speed Control Cable

RETAINER, Speed Control Cable

26

SCREW (1/4-28 x 2"), Idle Adjust

SCREW (1/4-28 x 2"), Idle Adjust
