Карбюратор для лодочных моторов Force H009201RS (1995)

Москва и регионы России

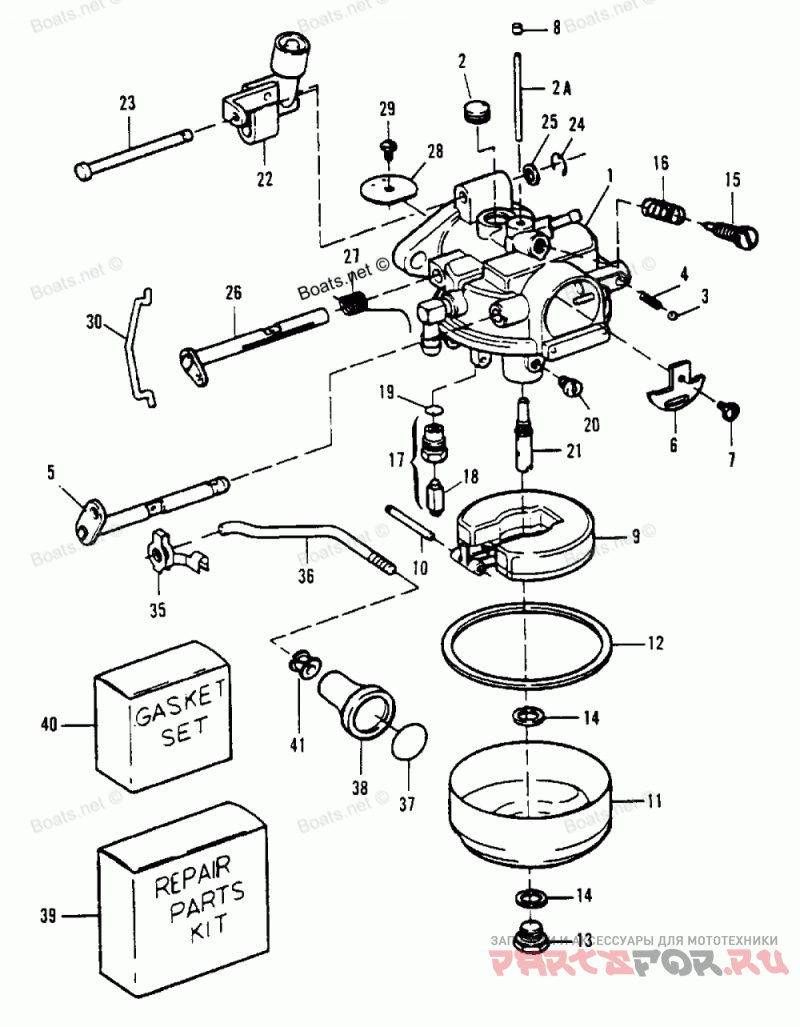

Карбюратор

Force H009201RS

Карбюратор

#

oem код

название

цена

1

CARBURETOR (HO-5A)

CARBURETOR (HO-5A)

2

PLUG, By-pass Chamber

PLUG, By-pass Chamber

3

BALL, Choke Friction

BALL, Choke Friction

4

SPRING, Choke Friction

SPRING, Choke Friction

5

SHAFT, Choke

SHAFT, Choke

6

SHUTTER, Choke

SHUTTER, Choke

7

SCREW, Shutter

SCREW, Shutter

8

PLUG, Body Channel

PLUG, Body Channel

9

FLOAT , Fuel Bowl

FLOAT , Fuel Bowl

10

Палец

Палец

11

BOWL, Fuel

BOWL, Fuel

12

GASKET, Fuel Bowl

GASKET, Fuel Bowl

13

SCREW, Fuel Bowl

SCREW, Fuel Bowl

14

GASKET, Fuel Bowl

GASKET, Fuel Bowl

15

NEEDLE, Idle Mixture

NEEDLE, Idle Mixture

16

SPRING, Idle Mixture Needle

SPRING, Idle Mixture Needle

17

NEEDLE/SEAT KIT, Inlet

NEEDLE/SEAT KIT, Inlet

18

NEEDLE, Inlet

NEEDLE, Inlet

19

GASKET, Inlet

GASKET, Inlet

20

JET, Main (.057) (0 - 2500 )

JET, Main (.057) (0 - 2500 )

20

JET, Main (.055) (2500 - 5000 )

JET, Main (.055) (2500 - 5000 )

20

JET, Main (.053) (5000 - 7500 )

JET, Main (.053) (5000 - 7500 )

20

JET, Main (.051) (7500 - 10000 )

JET, Main (.051) (7500 - 10000 )

21

Главный жиклер

Главный жиклер

22

LINKAGE, Throttle Cam Follower

LINKAGE, Throttle Cam Follower

23

SHAFT, Linkage

SHAFT, Linkage

24

E-RING, Linkage Shaft

E-RING, Linkage Shaft

25

WASHER, Linkage Shaft

WASHER, Linkage Shaft

26

SHAFT, Throttle

SHAFT, Throttle

27

SPRING, Throttle Shaft

SPRING, Throttle Shaft

28

SHUTTER, Thottle

SHUTTER, Thottle

29

SCREW, Shutter

SCREW, Shutter

30

LINK, Throttle

LINK, Throttle

35

RETAINER , Choke Rod

RETAINER , Choke Rod

36

ROD, Choke

ROD, Choke

37

INSERT, Choke Knob

INSERT, Choke Knob

38

Ручка, дроссель

Ручка, дроссель

39

REPAIR KIT, Carburetor

REPAIR KIT, Carburetor

40

GASKET SET, Carburetor

GASKET SET, Carburetor

41

BUSHING, Choke Rod

BUSHING, Choke Rod
