Bottom Cowl And Support Plate для лодочных моторов Force H005201RS (1995)

Москва и регионы России

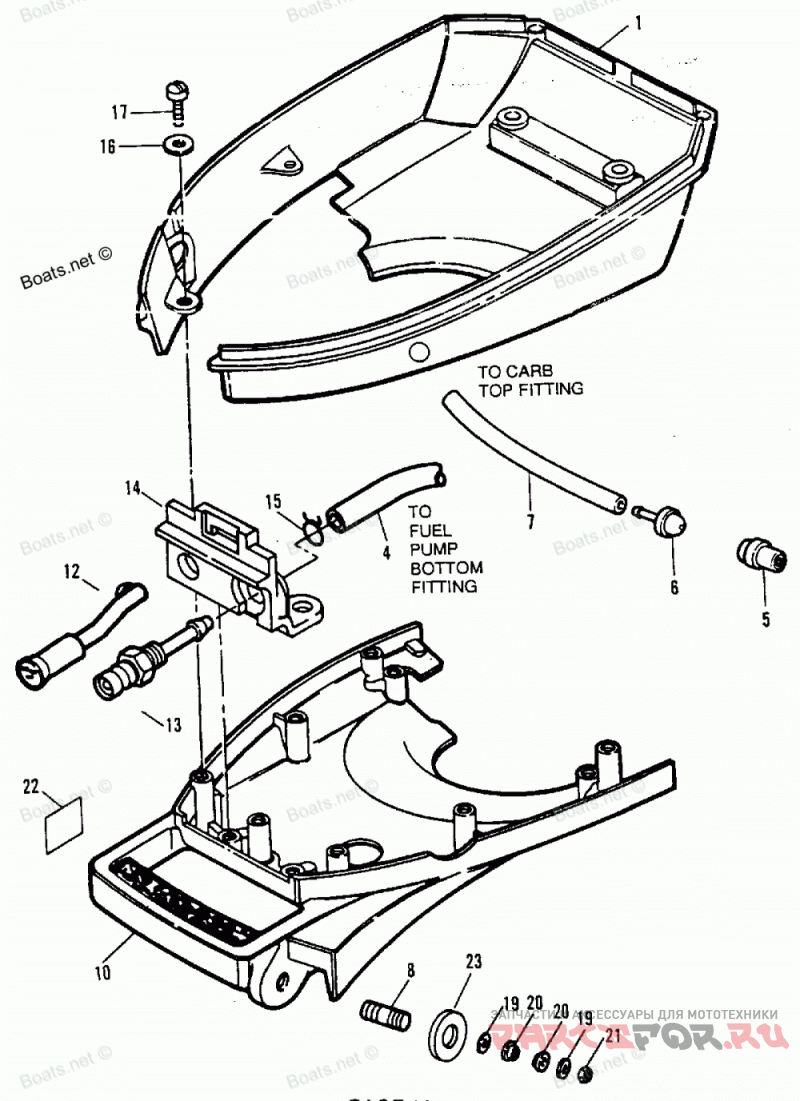

Bottom Cowl And Support Plate

Force H005201RS

Bottom Cowl And Support Plate

#

oem код

название

цена

1

COWL, Bottom (Painted)

COWL, Bottom (Painted)

4

HOSE, Fuel (Cut as Req d)

HOSE, Fuel (Cut as Req d)

5

COVER, Primer Bulb

COVER, Primer Bulb

6

BULB, Primer

BULB, Primer

7

HOSE (Cut as Req d)

HOSE (Cut as Req d)

8

STUD, Steering Handle

STUD, Steering Handle

10

PLATE, Support (Painted)

PLATE, Support (Painted)

12

Knob, Choke, Warm up

Knob, Choke, Warm up

13

BUSHING, Fuel

BUSHING, Fuel

14

Крышка

Крышка

15

Зажим

Зажим

16

Шайба

Шайба

17

SCREW (1/4-20 x 5/8")

SCREW (1/4-20 x 5/8")

19

Шайба

Шайба

20

Втулка

Втулка

21

NUT (3/8-16)

NUT (3/8-16)

22

DECAL, Fuel Mix

DECAL, Fuel Mix

23

Шайба

Шайба
