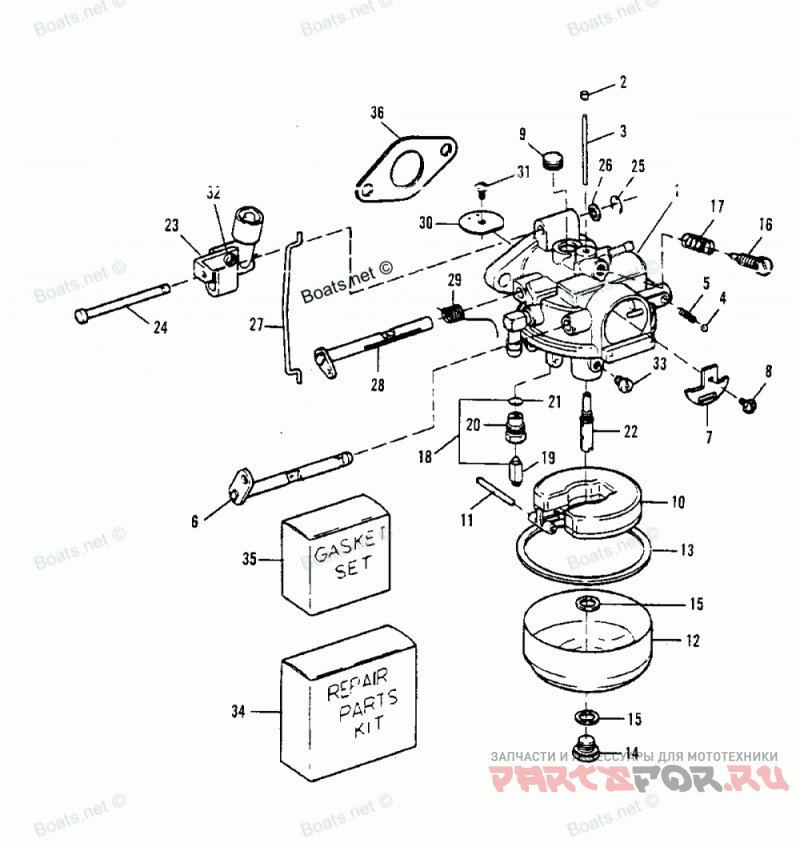

Карбюратор для лодочных моторов Force H005201RS (1995)

Москва и регионы России

Карбюратор

Force H005201RS

Карбюратор

#

oem код

название

цена

1

CARBURETOR (HO-4A)

CARBURETOR (HO-4A)

2

PLUG, Cup

PLUG, Cup

3

TUBE, By-pass

TUBE, By-pass

4

BALL, Choke Friction Spring

BALL, Choke Friction Spring

5

SPRING, Choke Friction

SPRING, Choke Friction

6

SHAFT, Choke

SHAFT, Choke

7

SHUTTER, Choke

SHUTTER, Choke

8

SCREW, Shutter

SCREW, Shutter

9

PLUG, Welch

PLUG, Welch

10

FLOAT, Fuel Bowl

FLOAT, Fuel Bowl

11

PIN , Float

PIN , Float

12

BOWL, Fuel

BOWL, Fuel

13

GASKET, Fuel Bowl

GASKET, Fuel Bowl

14

SCREW, Fuel Bowl

SCREW, Fuel Bowl

15

GASKET, Fuel Bowl

GASKET, Fuel Bowl

16

NEEDLE, Idle

NEEDLE, Idle

17

SPRING, Idle Needle

SPRING, Idle Needle

18

NEEDLE SEAT/GASKET SET, Inlet

NEEDLE SEAT/GASKET SET, Inlet

19

NEEDLE, Inlet

NEEDLE, Inlet

20

SEAT, Inlet

SEAT, Inlet

21

GASKET, Inlet

GASKET, Inlet

22

Главный жиклер

Главный жиклер

23

BRACKET, Throttle

BRACKET, Throttle

24

SHAFT, Throttle Linkage

SHAFT, Throttle Linkage

25

E-RING, Throttle Linkage Shaft

E-RING, Throttle Linkage Shaft

26

WASHER, Throttle Linkage Shaft

WASHER, Throttle Linkage Shaft

27

LINKAGE, Throttle Shaft

LINKAGE, Throttle Shaft

28

SHAFT, Throttle

SHAFT, Throttle

29

Пружина

Пружина

30

SHUTTER, Throttle

SHUTTER, Throttle

31

SCREW, Shutter

SCREW, Shutter

32

SCREW, Idle Speed

SCREW, Idle Speed

33

JET (.041)(STD. - 2500 )

JET (.041)(STD. - 2500 )

33

JET (.039)(2500 - 5000 )

JET (.039)(2500 - 5000 )

33

JET (.037)(5000 - 7500 )

JET (.037)(5000 - 7500 )

33

JET (.035)(7500 - 10000 )

JET (.035)(7500 - 10000 )

34

REPAIR KIT, Carburetor

REPAIR KIT, Carburetor

35

GASKET SET, Carburetor

GASKET SET, Carburetor

36

GASKET, Carburetor Flange

GASKET, Carburetor Flange
