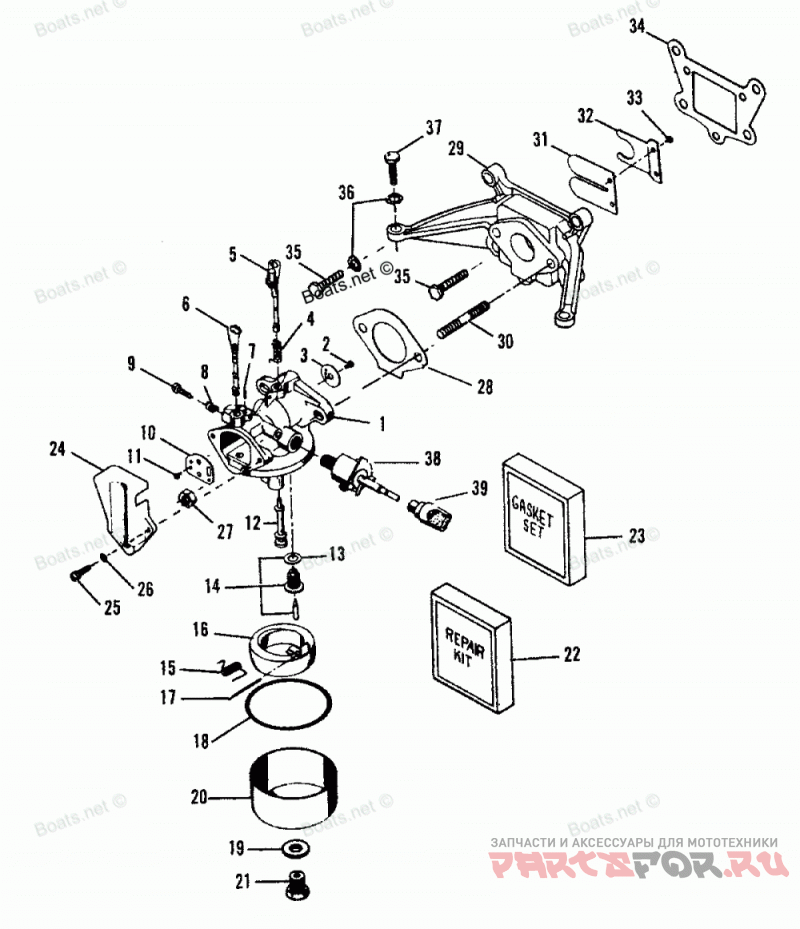

Carburetor And Reed Plate (88a Models)

Force H005201RM

Force
#oem кодцена
1
F680061
CARBURETOR (LMB-236)
2
5902
SCREW, THROTTLE VALVE
3
F10060
Клапан
4
F10075
SPRING, THROTTLE RETURN
5
F10059
SHAFT, THROTTLE
6
F10061
SHAFT, CHOKE
7
F10072
SPRING, CHOKE STOP
8
F10073
SPRING, IDLE NEEDLE
9
F10077
NEEDLE, IDLE
10
F10062
VALVE, CHOKE
11
F10070
SCREW, CHOKE VALVE
12
F10088
Наконечник
13
F10066
Прокладка уплотнительная клапана
14
F10100-1
VALVE KIT, SEAT
15
5904
SPRING, VALVE SEAT
16
5898
FLOAT, FUEL BOWL
17
F10064
Палец
18
F10068
GASKET, FUEL BOWL
19
F10090
GASKET, BOWL RETAINER
20
8155
BOWL, FUEL
22
FK10256
REPAIR KIT, CARBURETOR
23
FK10069
GASKET SET, CARBURETOR
24
F521708
COVER, CARBURETOR
25
F1064
SCREW (8-32 X 3/8")
26
23836
LOCKWASHER (#8 INTERNAL)
27
20890
NUT (1/4-20)
28
F521906
GASKET, CARBURETOR
29
818018A1
ADAPTER ASSEMBLY, CARBURETOR
30
826625
STUD (1/4-20 X 1.13") WITH DRY LOC
31
F31160-2
REED
32
F680161
STOP, REED
33
819074
SCREW AND LOCKWASHER (6-32 X 5/16")
34
F521168
GASKET, CARBURETOR ADAPTER
35
F1532
SCREW (1/4-20 X 1")
36
F8060
LOCKWASHER (1/4" EXTERNAL)
37
F2008
SCREW (1/4-20 X 7/8")
38
F521550
KNOB, FUEL SHUT-OFF
39
F521489
VALVE, FUEL SHUT-OFF
