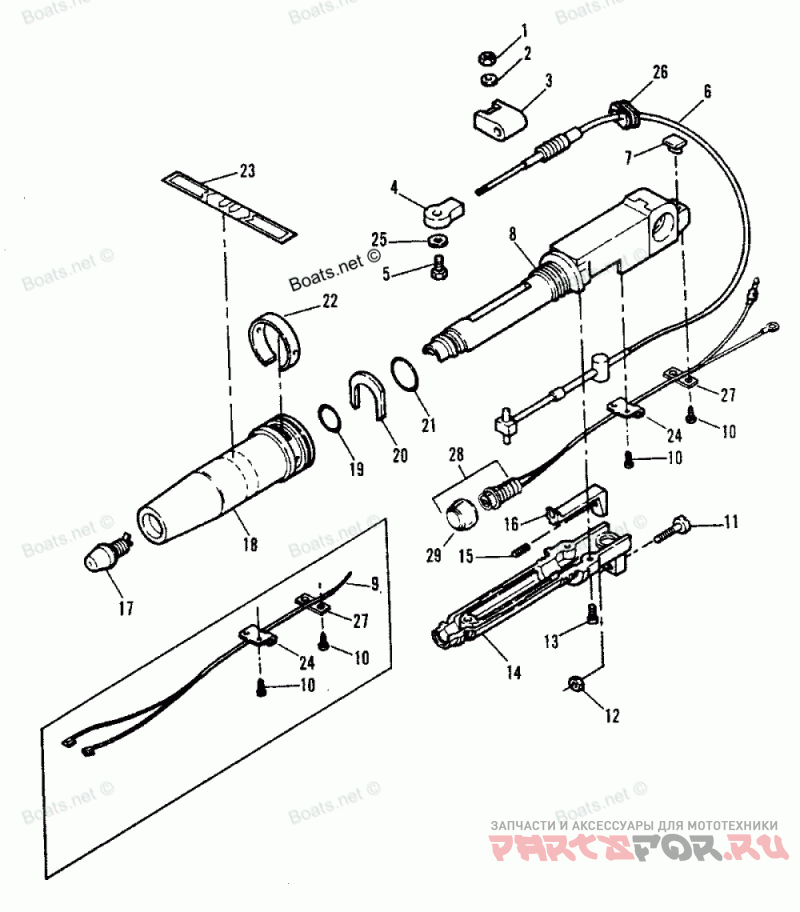

Steering Hamdle-twist Grip Throtle (88b Thru 92b)

Force H005201RD

Force
#oem кодцена
1
814101
NUT (1/4-20)
2
29245
Шайба
3
F702668
RETAINER, SPEED CONTROL CABLE
4
F702035
BEARING, CONNECTOR (10-24 RH)
5
F702165
SCREW (88B/92B &
5
90192
SCREW (1/4-20 X 3/4")
6
F702444
CABLE, SPEED CONTROL
7
F702025
PAD, HANDLE BUMPER
8
F702079T
ARM, STEERING (UPPER) (PAINTED)
9
F702908
WIRE, STOP (88B/92B)
10
F2230
SCREW (#6 X 3/8")
11
F521690-1
SCREW, THROTTLE LEVER ADJUST
12
F7009
NUT (10-24)
13
F2219
SCREW (8-18 X 3/4")
14
F702576T
ARM, STEERING (LOWER)
15
F521199
SPRING, THROTTLE LEVER ADJUST
16
F702198
STOP, IDLE
17
F702449
SWITCH, STOP (88B/92B)
18
F702137
GRIP, STEERING HANDLE
19
21836
Кольцо
20
F702178
RETAINER, GRIP
21
23145
Кольцо
22
F702687
COLLAR, HANDLE
23
F712894
INDICATOR, SPEED CONTROL
24
F702384
RETAINER, WIRE
25
F8143
WASHER (88B/92B)
25
824687
Проставка
26
F702504
GROMMET, CABLE
27
F702212
PLATE, CABLE CLAMP
28
824440A5
SWITCH KIT, STOP
