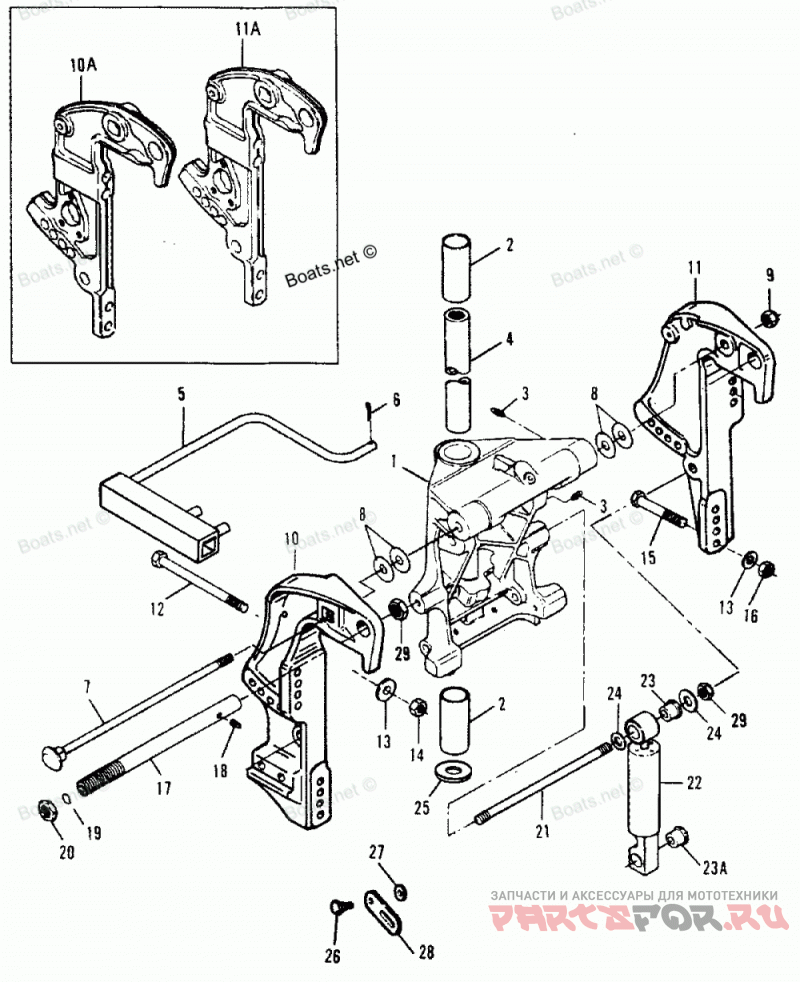

Swivel Bracket - Stern Brackets

Force H150412PE

Force
#oem кодцена
1
817783A5
BRACKET KIT-Swivel
2
819493
BUSHING-Swivel Bracket
3
F213274
FITTING-Grease
4
FS85019
KINGPIN ASSEMBLY (20.00 Inch)
4
FA500019
KINGPIN ASSEMBLY (25.00 Inch)
5
819504A1
LOCK BRACKET KIT-Trailering
6
F525629
PIN-Cotter
7
F85037-1
BOLT-Stern Bracket Pivot
8
F84286-1
Шайба
9
28040
NUT (.500-20)
10A
820445F
BRACKET-Stern (Starboard)
11A
820446F
BRACKET-Stern (Port)
12
F685632
BOLT (.500-20 x 7.00)
13
FK684201
Комплект шайб
14
91962
NUT (.500-20)
15
F2428
SCREW (.375-16 x .500)
15
F2185
SCREW (.375-16 x 3.500)
16
86226
NUT (.375-16)
10
819424F
BRACKET-Stern (Starboard)
11
819425F
BRACKET-Stern (Port)
12
677551
SCREW (.500-20 x 4.500)
13
28421
Шайба
15
677551
SCREW (.500-20 x 4.500)
16
91962
NUT (.500-20)
17
818066A3
TUBE ASSEMBLY-Steering
18
F523274
FITTING-Grease
19
F316599
O RING-Steering Tube
20
F523280
NUT-Steering Support Tube
21
F449889
SHAFT-Upper Shock
22
FS631962
SHOCK ABSORBER ASSEMBLY
23
F178344
BUSHING (Upper)
23A
F449362
BUSHING (Lower)
24
F1960
Шайба
25
F84011
Шайба
26
F85350-1
Втулка оси
27
69150
WASHER (Wave)
28
F694426
STOP-Tilt
29
35778
NUT (.500-20)
NS
F9018
CAP-Stern Bracket (Starboard)
NS
F9052
PLUG-Tube Assembly (Port)
