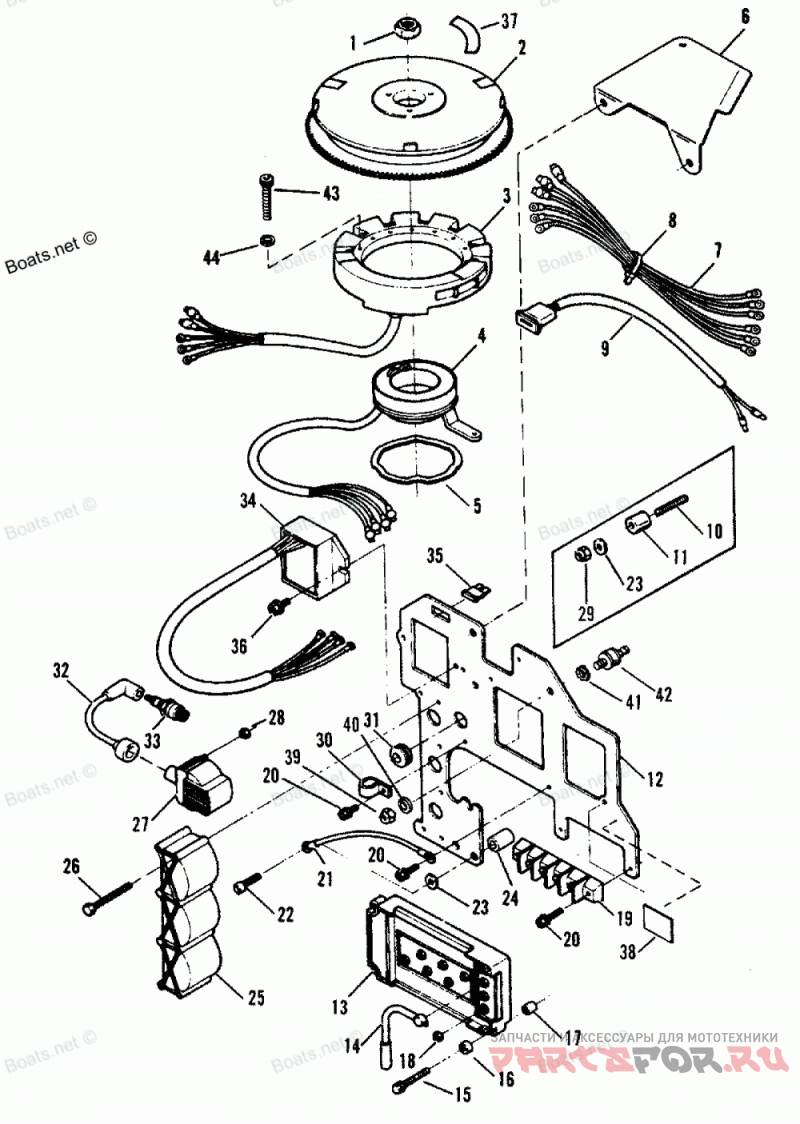

Ignition Components (91h Thru 92c)

Force H090422PD

Force
#oem кодцена
1
F1968
NUT (3/4-16)
2
817494A2
Маховик
3
8778A10
STATOR ASSY. (91H /92C)
3
8778A26
STATOR ASSEMBLY
4
817029A3
TRIGGER ASSEMBLY
5
F2442
Шайба
6
819111
GUARD, IGNITION
7
817441A1
HARNESS, COIL TO SWITCHBOX
8
816311
CABLE TIE (8")
9
19637
SOCKET, FUSE
10
F746210
STUD (2-1/4") (91H THRU 92C)
11
F722932
SPACER (91H THRU 92C)
12
8172685
PLATE, IGNITION MOUNT
13
7778A12
SWITCHBOX ASSEMBLY
14
88807A34
CABLE ASSEMBLY, ADAPTER
15
812987
SCREW (10-24 X 1-1/4")
16
94304
Проставка
17
91912
Втулка
18
45076
NUT (10-32)
19
817492
BLOCK, TERMINAL (91H /92C)
20
41805
SCREW (10-24 X 5/8")
21
88807A29
CABLE ASSEMBLY (BLACK)
22
F2192
SCREW (1/4-20 X 1-3/4") (91H THRU 92C)
23
71055
WASHER (91H THRU 92C)
24
F722452
SPACER (91H THRU 92C)
25
43542
COVER, COIL
26
817458
SCREW (10-24 X 2-1/4")
27
7370A23
COIL ASSEMBLY, IGNITION
28
45076
NUT (10-24)
29
F7006
NUT (5/16-18) (91H THRU 92C)
30
63153
CLIP (91H THRU 92C)
31
817491
Уплотнитель резиновый
32
821945A28
CABLE ASSEMBLY, HIGH TENSION
33
827C
SPARK PLUG (CHAMPION # L-76V)
33
898
SPARK PLUG (RFI) (CHAMPION # QL-76V)
34
817411
RECTIFIER (91H /92C &
34
8174111
Регулятор напряжения
35
812619
FUSE (20 AMP)
36
817504
SCREW(1/4-20X1-1/2") (91H /92C)
36
817505
SCREW (1/4-20 X 5/8")
37
FA609853
DECAL KIT, SHIFT TO NEUTRAL
38
819526
DECAL, CABLE ADJUSTMENT
39
68292
NUT (5/16-18)
40
53166
LOCKWASHER (5/16")
41
819869
MOUNT, SHOCK
42
F8124
LOCKWASHER (5/16" EXTERNAL)
43
76566
SCREW (10-24 X 1")
44
26996
LOCKWASHER (#10)
--
56762
CABLE TIE (4")
