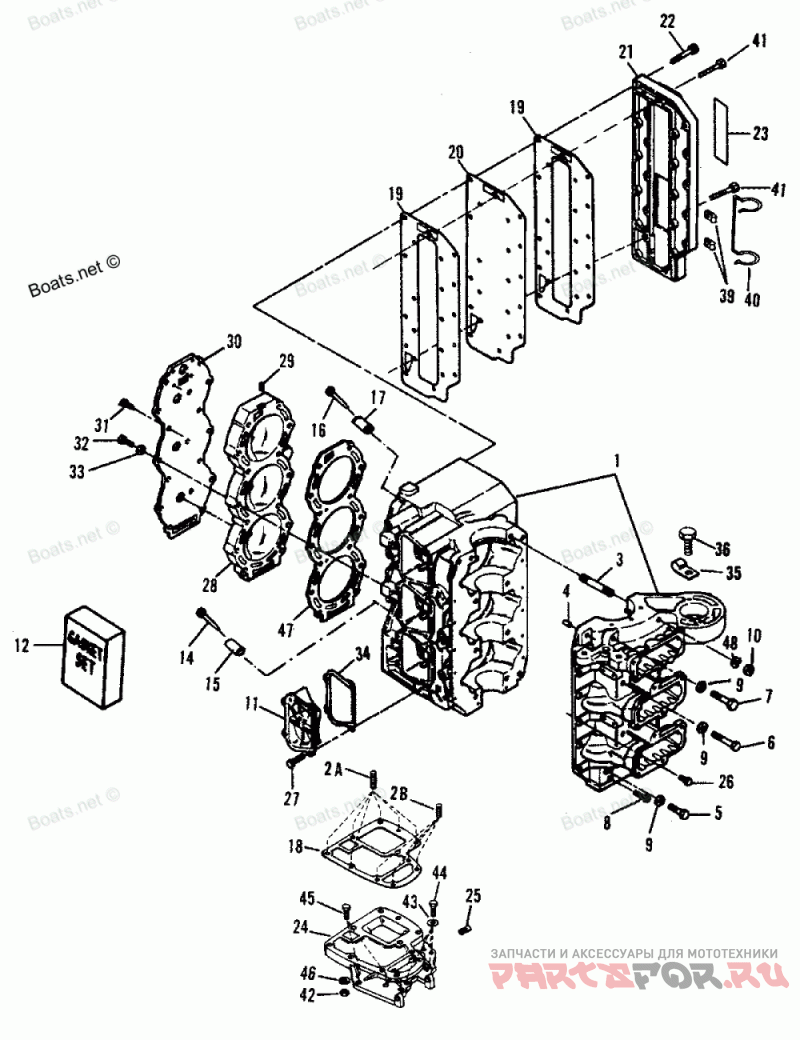

Блок цилиндров

Force H090312PE

Force
#oem кодцена
--
817608A6
POWERHEAD ASSY (PAINTED) 91E THRU 92C)
1
817881A5
CYLINDER BLOCK KIT 91E THRU 92C)
--
817608A17
POWERHEAD ASSY (PAINTED)
1
817608A18
CYLINDER BLOCK KIT
2A
826391
STUD (3/8-16 X 3.11") WITH DRI LOC
2B
826395
STUD (3/8-16 X 2-1/4") WITH DRI LOC
3
826394
STUD (3/8-16 X 3.84") WITH DRI LOC
4
20433
PIN, DOWEL (3/8" X 1") (STYLE I)
4
43044
PIN, DOWEL (3/8" X 5/8") (STYLE II)
5
32132
SCREW (3/8-16 X 1-3/4")
6
53734
SCREW (3/8-16 X 3") 817608A17
7
47688
SCREW (3/8-16 X 2-3/4")
8
820589
SCREW (1/4-20 X 1-1/4")
9
37828
Шайба
10
86226
NUT (3/8-16)
11
817790A1
COVER KIT, TRANSFER PORT
12
FG1028-2
GASKET SET (91E/92C)
12
820725A1
Комплет прокладок
14
F719372
PIN, WATER JACKET TUBE
15
F719418
TUBE, WATER JACKET
16
F691372
PIN, WATER JACKET TUBE (TOP)
17
F719943
TUBE, WATER JACKET (TOP)
18
819381
GASKET, SPACER PLATE
19
819023
GASKET, EXHAUST PORT PLATE
20
8192831
PLATE, EXHAUST PORT
21
F692152
COVER, EXHAUST PORT
22
76213
SCREW (1/4-20 X 1-1/8")
23
F529398-1
DECAL, WIRING (91E /92C)
24
819750A1
PLATE KIT, SPACER
25
F695275
FITTING, (1/2-14)
26
28636
SCREW (1/4-20 X 3/4")
27
98254
SCREW (1/4-20 X 5/8")
28
819857
Головка цилиндров
29
F722109-1
PLUG, CYLINDER HEAD
30
F692995
Крышка головки цилиндра
31
98254
SCREW (1/4-20 X 5/8")
32
F1883
SCREW (5/16-18 X 2-3/8")
33
34437
Шайба
34
820500
GASKET, TRANSFER PORT COVER
35
55098
J CLIP
36
28636
SCREW (1/4-20 X 3/4")
39
820437
CLIP, RETAINER
40
92753
RETAINER, WIRING HARNESS
41
F901938-1
Винт
42
68411
NUT (3/8-16)
43
20553
Шайба
44
37612
SCREW (3/8-16 X 1-1/4")
45
68101
SCREW (3/8-16 X 1-3/8")
46
58643
LOCKWASHER (3/8")
47
820438
Прокладка
48
35048
LOCKWASHER (3/8")
-
817608A6
POWERHEAD ASSEMBLY
-
817608A17
POWERHEAD ASSEMBLY
-
FG1028-2
Комплет прокладок
-
820725A1
Комплет прокладок
