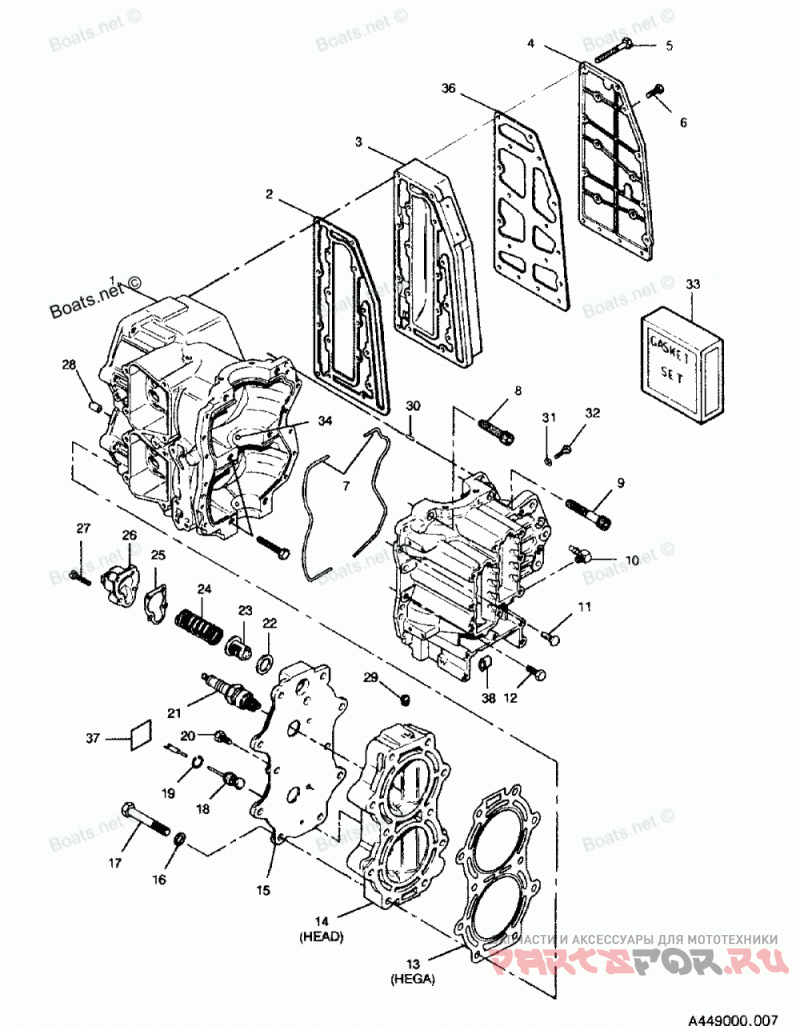

Cylinder Block, Head And Exhaust Chest Cover

Force H0507A92A

Force
#oem кодцена
1
FA718010
CYLINDER W/CRANKCASE COVER AND DEFLECTOR PLATE
-
FC718010
SHORT BLOCK, CONTAINS CYLINDER, CRANKSHAFT, PISTONS & PINS
2
F691154
GASKET, EXHAUST PORT PLATE
3
F691151
PLATE, EXHAUST PORT
4
F691152
COVER EXHAUST PORT
5
F1972
SCREW, EXHAUST PORT, 1/4 - 20 X 2-1/2 HEX HD.
6
F1238
SCREW, 1/4 - 20 X 3/4
7
F184122-1
SEAL, CRANKCASE PARTING LINE
8
F2228
SCREW, CRANKCASE COVER TO CYLINDER
9
812567
SCREW, CRANKCASE COVER TO CYLINDER
10
F463314
ELBOW, CHECK VALVE
11
F1922
SCREW, CRANKCASE TO CYLINDER, 1/4 - 20 X 5/8
12
F1864
SCREW, CRANKCASE TO CYLINDER, 1/4 - 20 X 3/4
13
F691529
Прокладка
14
F691518
Головка цилиндров
15
F691995
Крышка головки цилиндра
16
F1987
WASHER, CYLINDER HEAD BOLTS
17
F2254
SCREW, CYLINDER HEAD AND COVER TO CYLINDER 5/16 - 18 X 2-1/2
18
F658449-1
THERMOSWITCH W/WIRE
19
F428096
Стопорное кольцо
20
F1502
SCREW, CYLINDER HEAD COVER TO CYLINDER HEAD
21
8180071
SPARK PLUG, UL-18V
22
F658504
WASHER, THERMOSTAT
23
F97068-2
Термостат
24
F658268
SPRING, THERMOSTAT
25
F97067
GASKET, THERMOSTAT COVER
26
F658066
Крышка термостата
27
F1995
SCREW, THERMOSTAT COVER TO CYLINDER HEAD #10 - 24 X 1
28
F658418
TUBE, COOLING SYSTEM
29
F19109
Заглушка
30
F8559
Штифт
31
F8096
LOCKWASHER, SPRING
32
F1857
SCREW, HEX CAP, 5/16 - 18 5/8
33
FG1033
Комплет прокладок
34
F40909
PIN, LOCATING
36
F691153
GASKET, EXHAUST PORT COVER
37
F685387-2
DECAL, US MARINE
38
F307942-2
Амортизатор ударов
