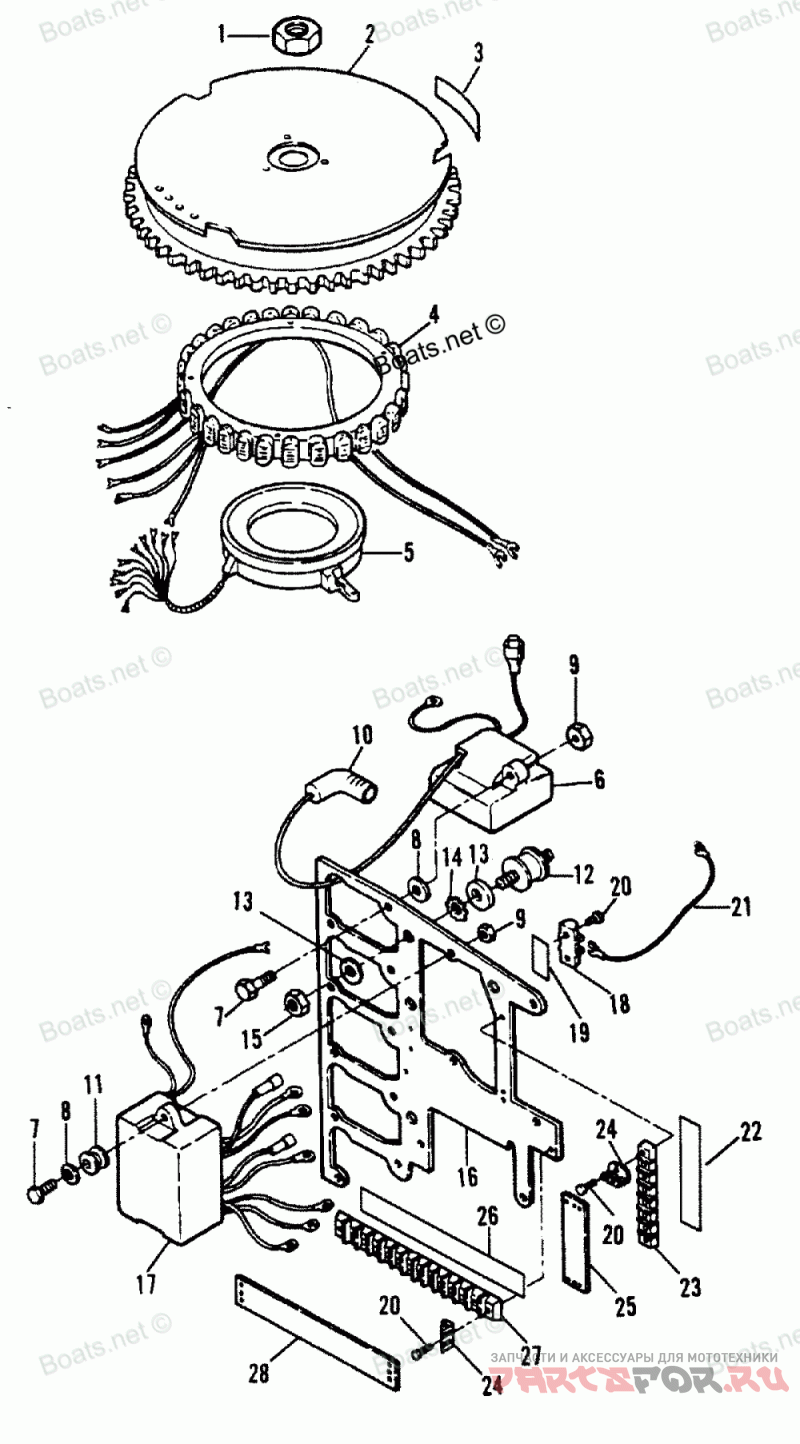

Ignition System (89a Thru 91a)

Force H1501G91A

Force
#oem кодцена
1
F1968
NUT (.750-16)
2
FA694097
FLYWHEEL KIT
3
FA609853
DECAL KIT (Shift To Neutral)
4
F694095-2
STATOR ASSEMBLY
4
F721095-1
STATOR ASSEMBLY
5
F694029-2
TRIGGER ASSEMBLY
6
F684475-1
COIL ASSEMBLY (Blue)
7
F2008
SCREW (.250-20 x .875)
8
35044
Шайба
9
814101
NUT (.250-20)
10
FK1123
BOOT KIT-Spark Plug
11
F475504
Уплотнитель резиновый
12
819869
MOUNT-Shock
13
F8124
LOCKWASHER (.312 External)
14
F8090
Шайба
15
68292
NUT (.312-18)
16
F694358
BRACKET-Electrical Mount
17
F685301-2
MODULE ASSEMBLY (Blue)
18
F694497
BLOCK-Terminal (1 Position)
19
F695025
PAD-Terminal Block
20
F1552
SCREW (#8-32 x .500)
21
F694683
WIRE ASSEMBLY (Black/Yellow)
22
F691025
PAD-Terminal Block
23
F722497
BLOCK-Terminal (6 Position)
24
F664384
CLIP-Terminal Block Cover
25
F694672
COVER-Terminal Block (6 Position)
26
F664025
PAD-Terminal Block
27
F664497
BLOCK-Terminal (12 Position)
28
F664672
COVER-Terminal Block (12 Position)
NS
F2200
SCREW (#12-24 x 1.00)
